Pinout Values and Diagnostic Parameters

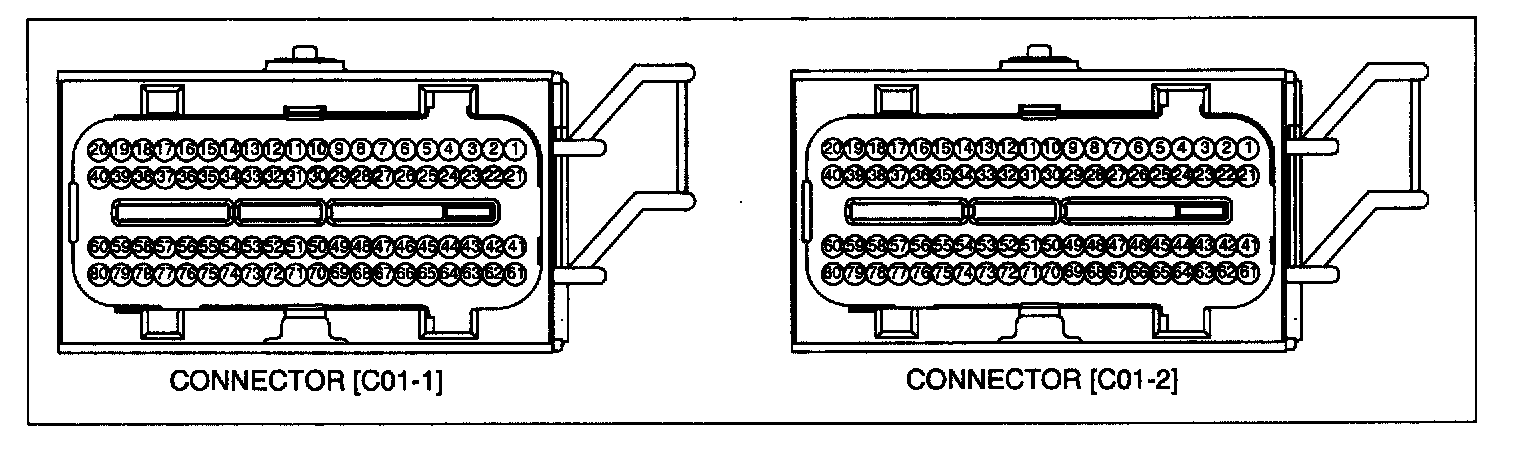

PCM HARNESS CONNECTOR

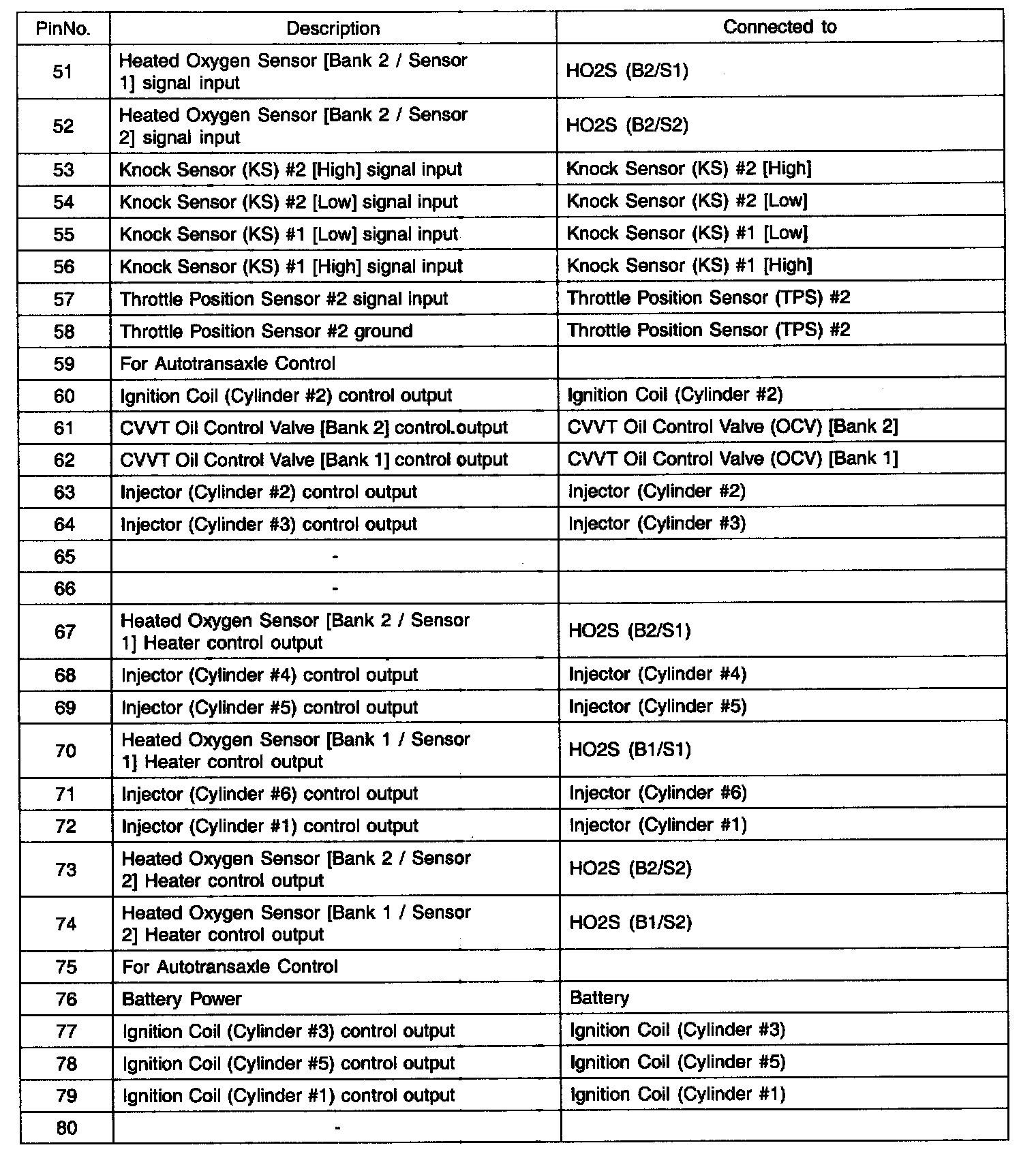

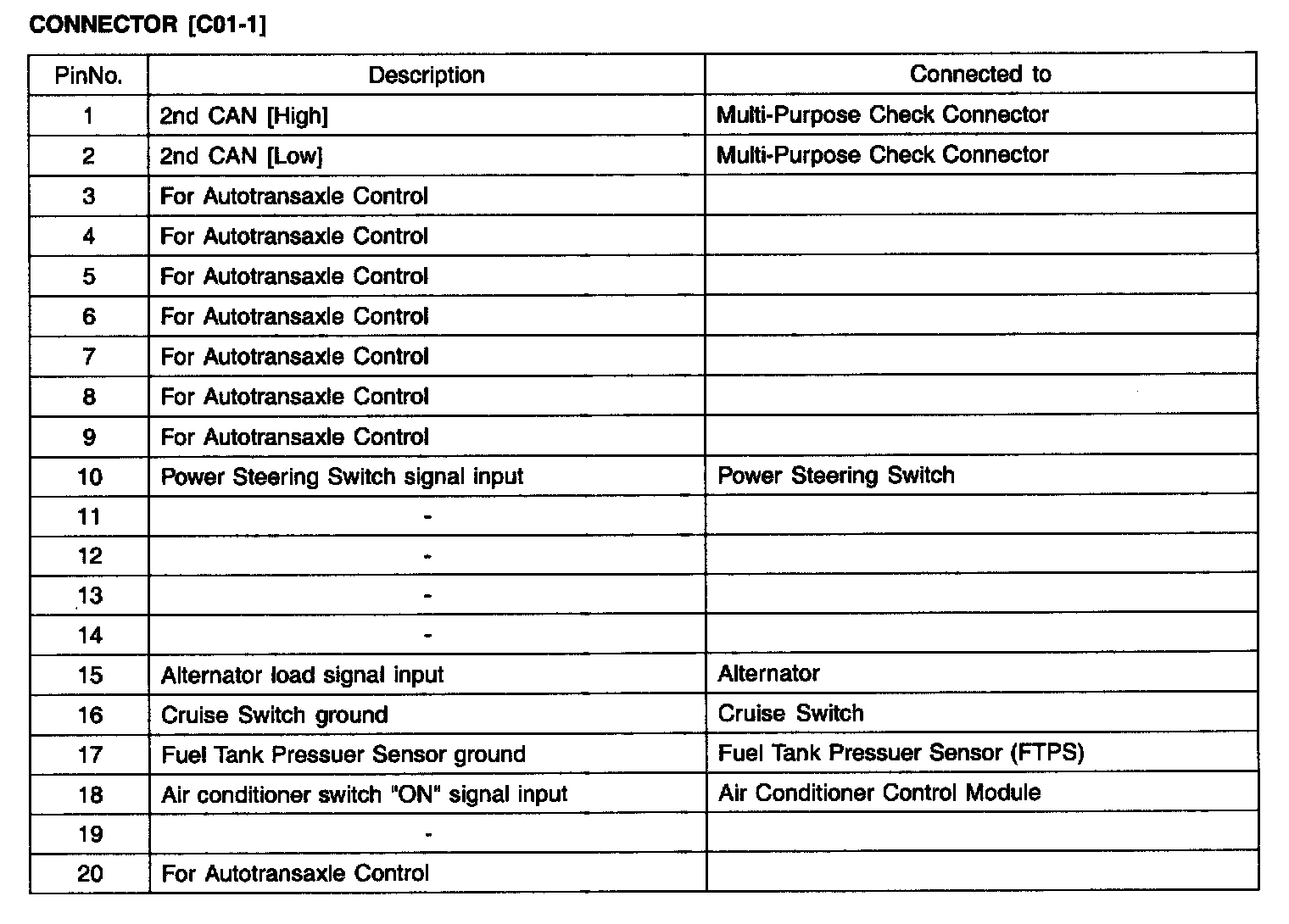

PCM Terminal Function - Connector (C01-1) Part 1:




PCM Terminal Function - Connector (C01-1) Part 2:

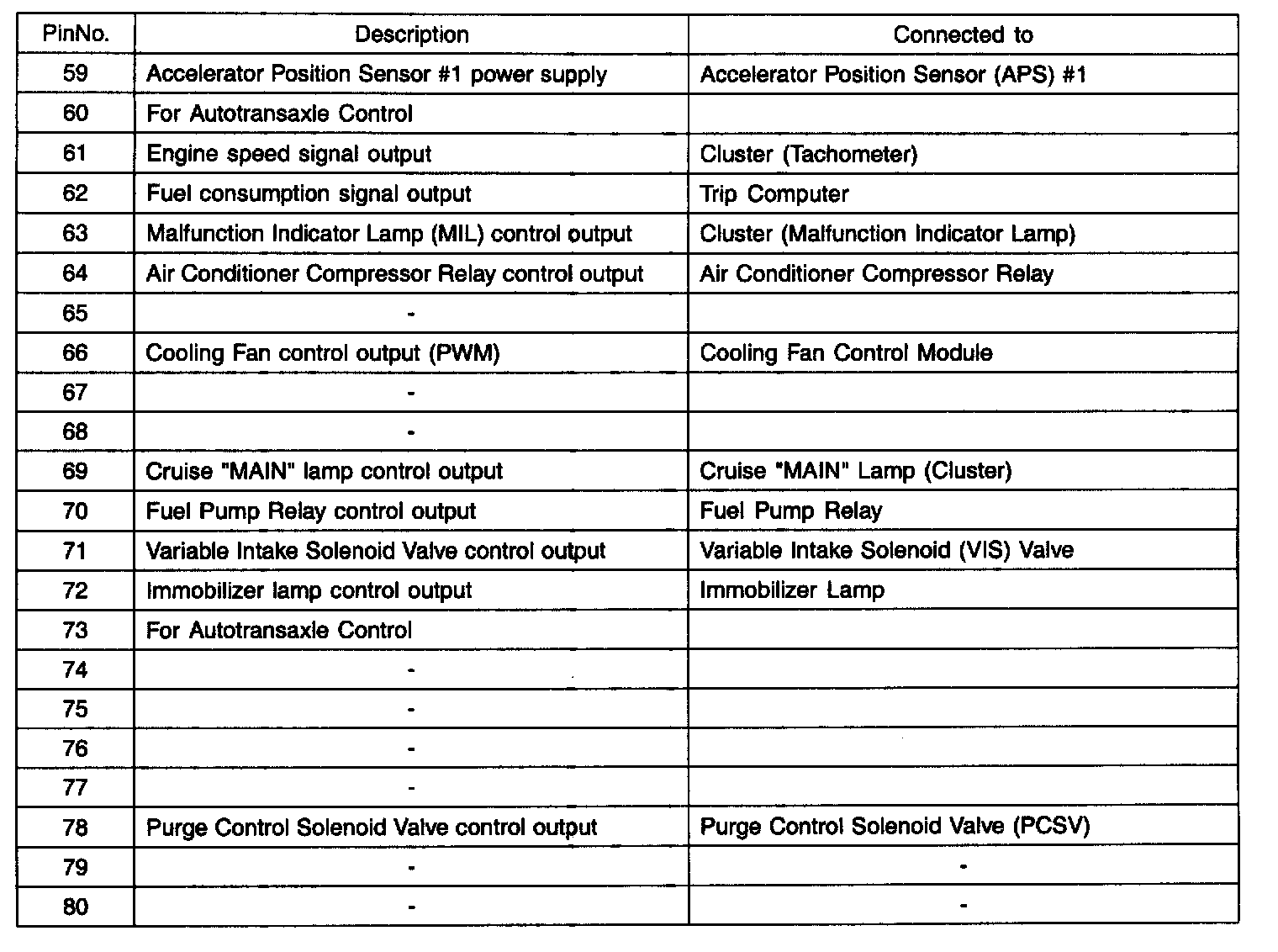

PCM Terminal Function - Connector (C01-1) Part 3:




PCM TERMINAL FUNCTION - CONNECTOR [C01-1]

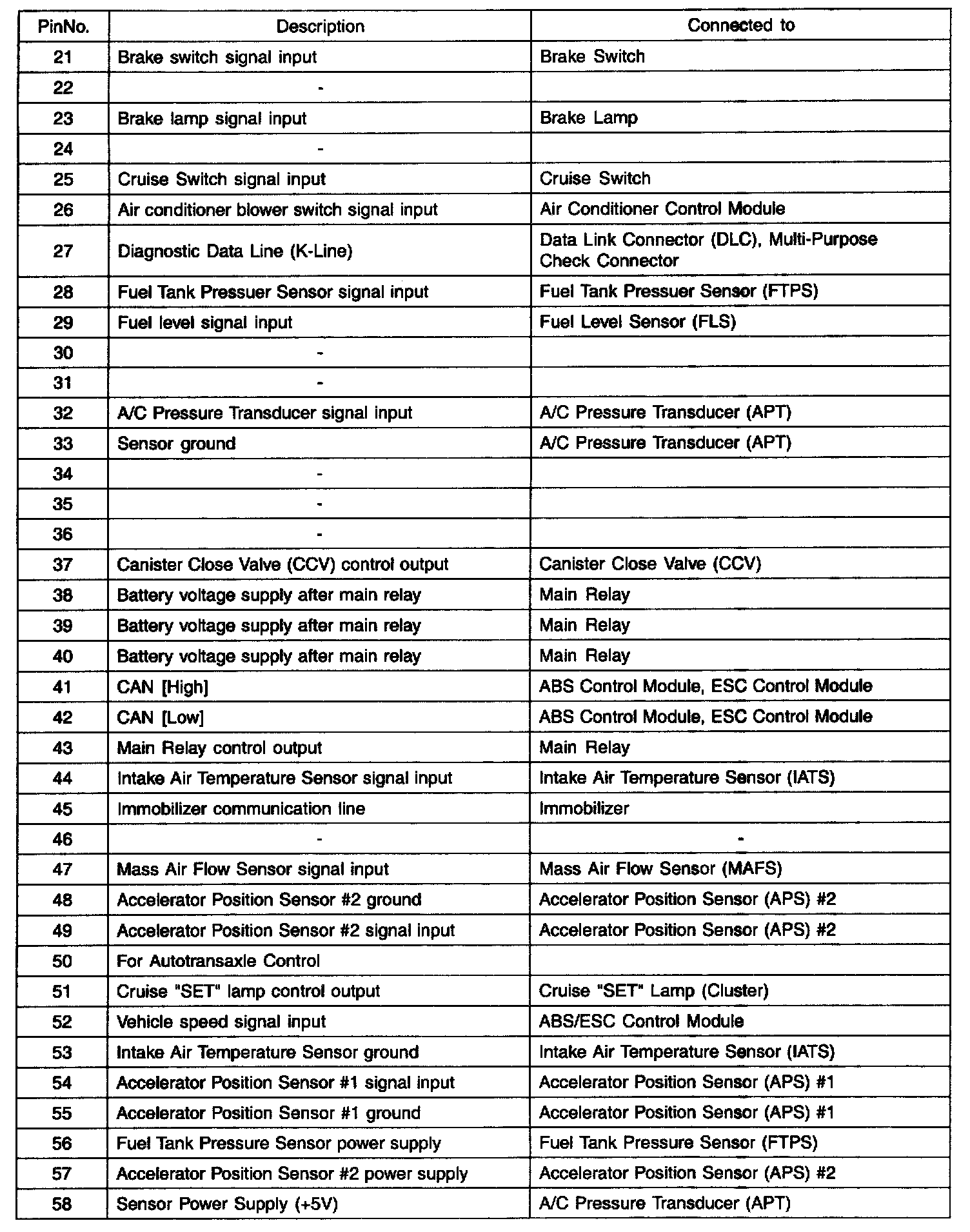

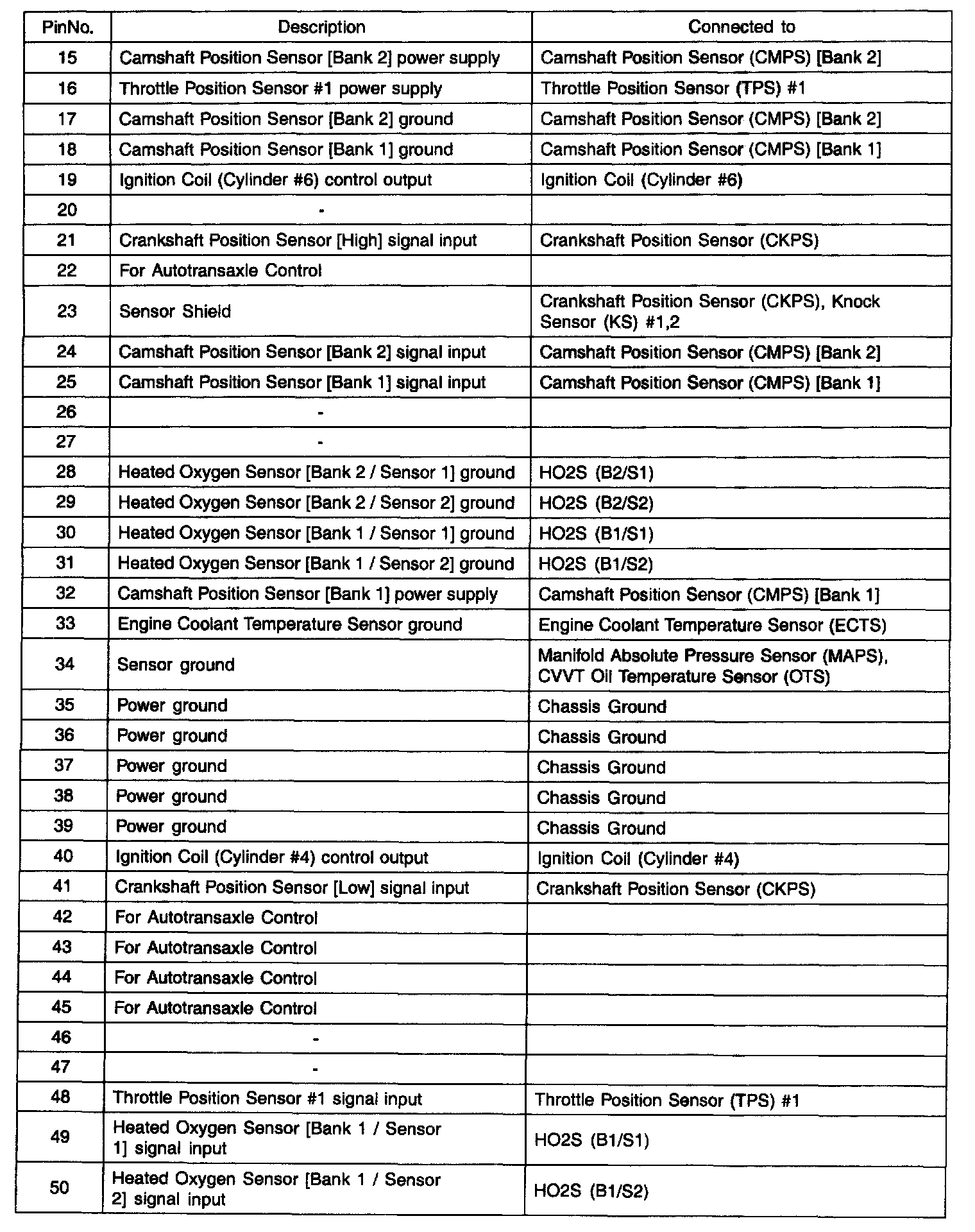

PCM Terminal Function - Connector (C01-2) Part 1:




PCM Terminal Function - Connector (C01-2) Part 2:




PCM Terminal Function - Connector (C01-2) Part 3:




PCM TERMINAL FUNCTION - CONNECTOR [C01-2]

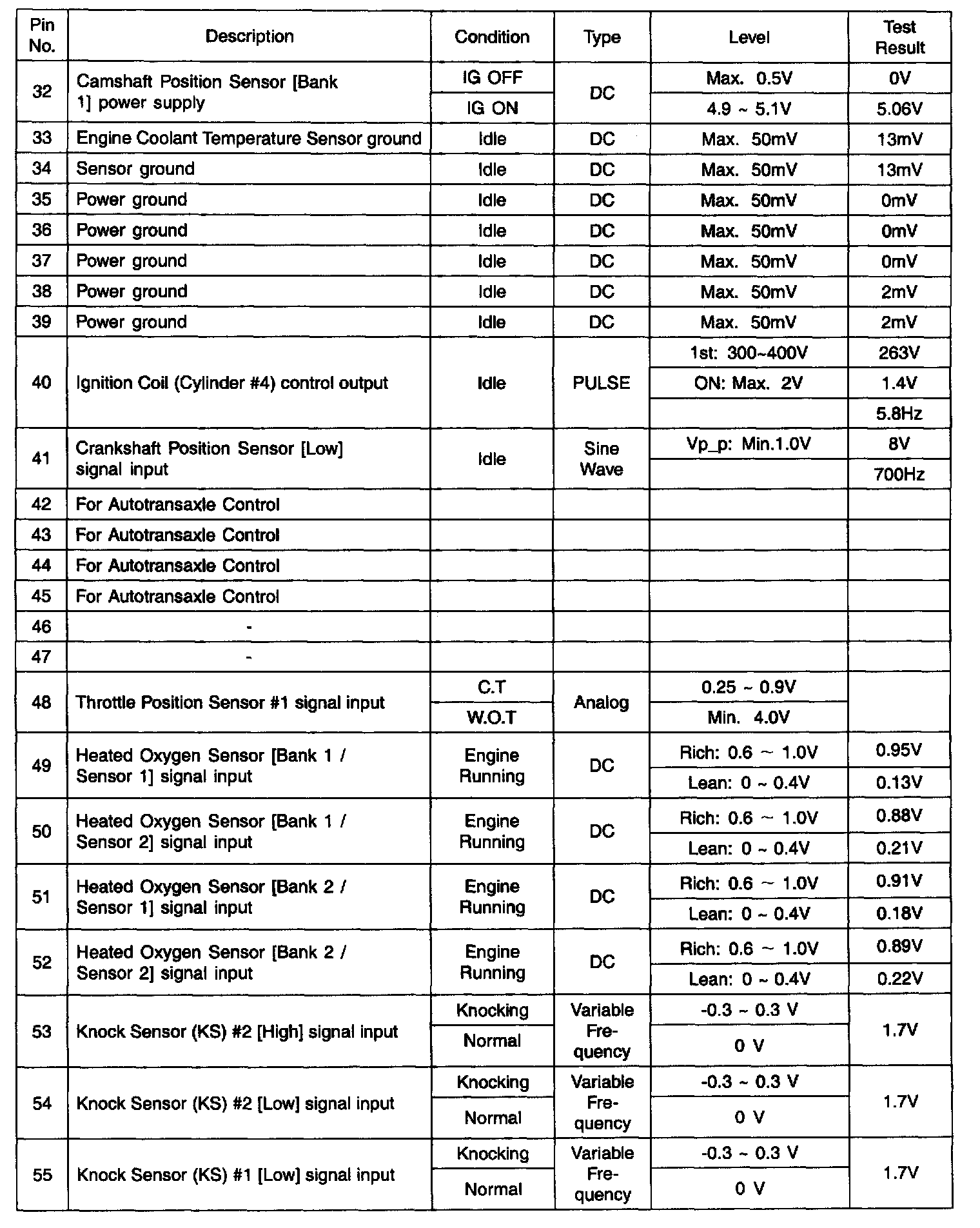

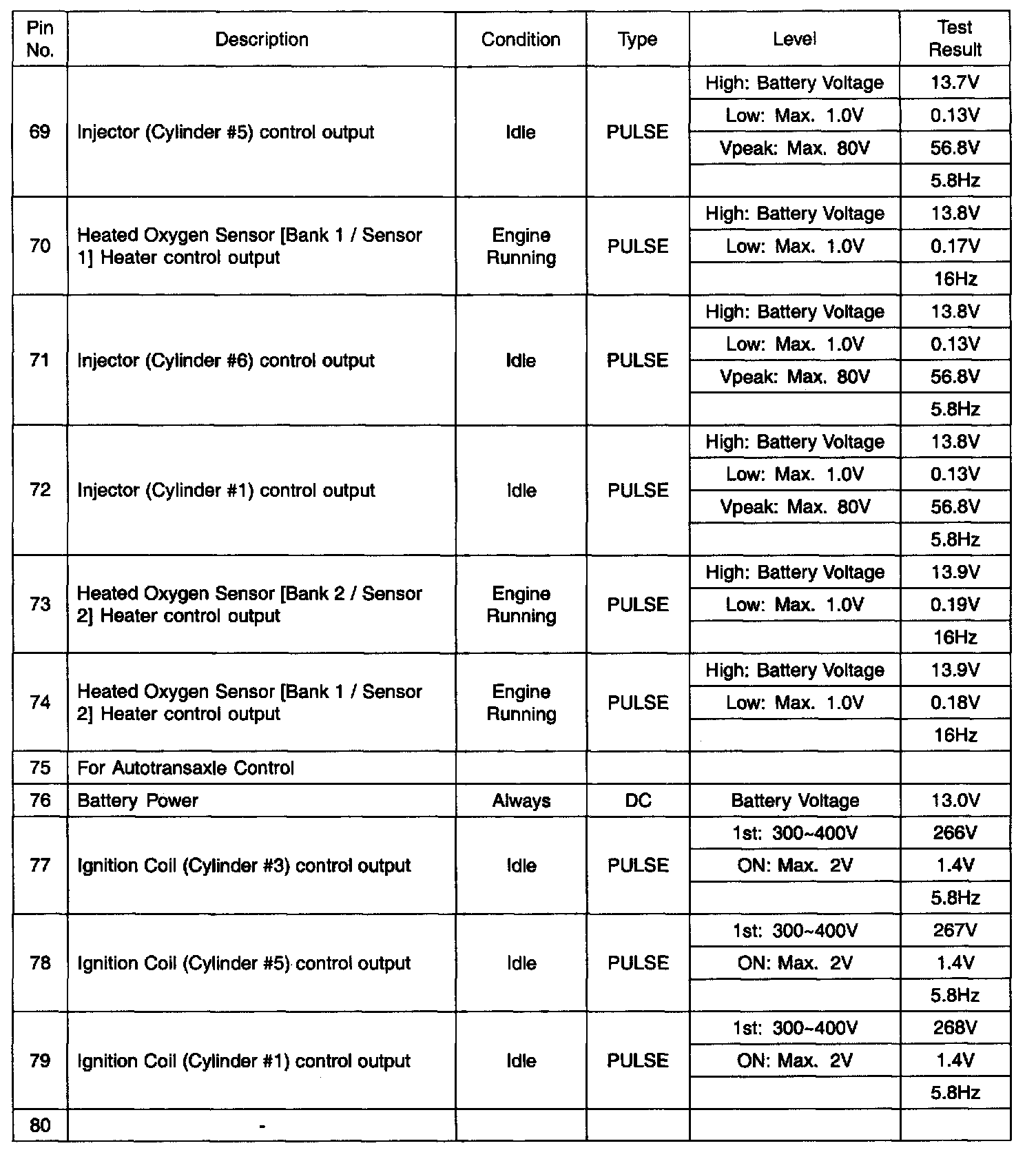

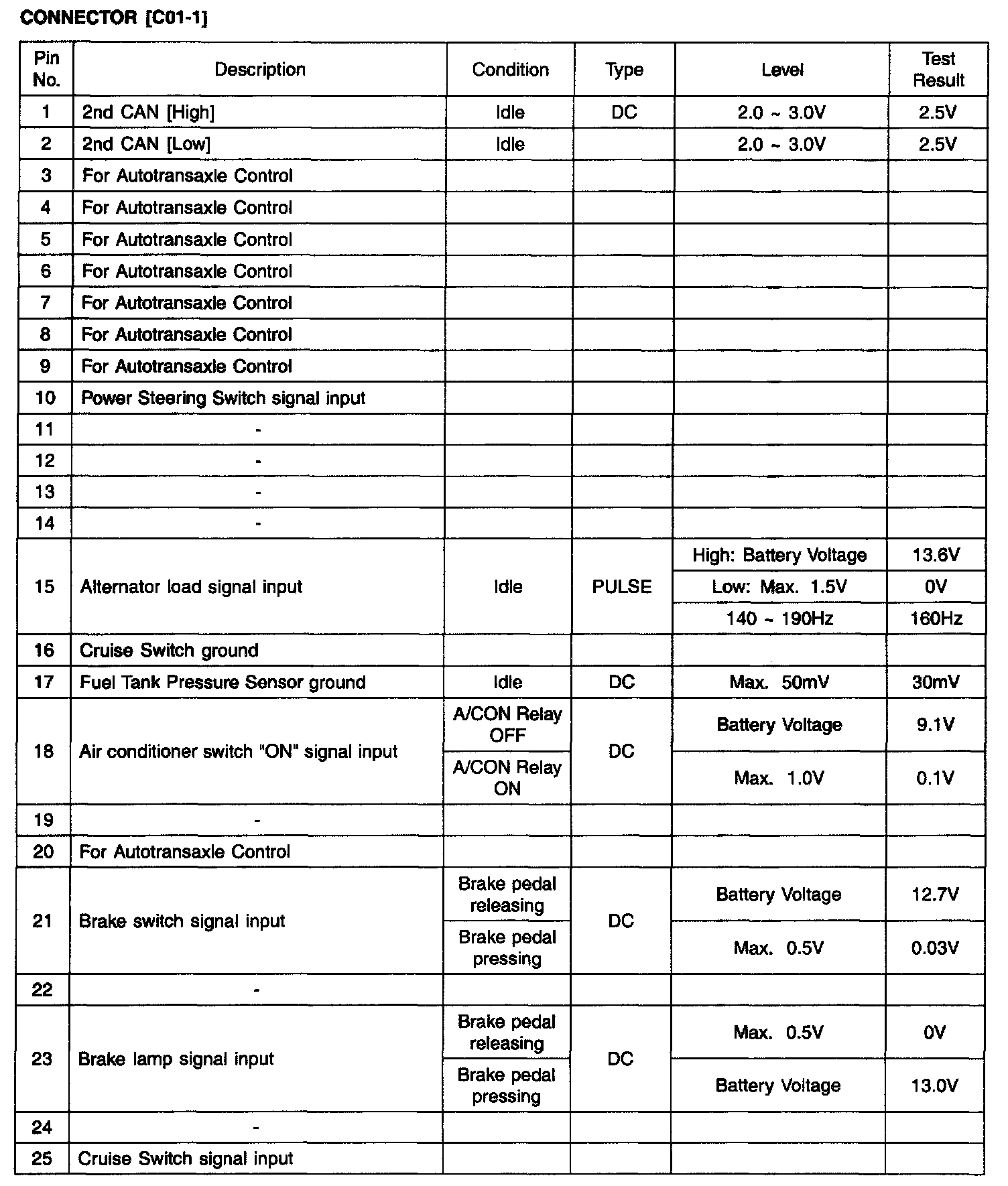

PCM Terminal Input/Output Signal - Connector (C01-1) Part 1:




PCM Terminal Input/Output Signal - Connector (C01-1) Part 2:




PCM Terminal Input/Output Signal - Connector (C01-1) Part 3:




PCM Terminal Input/Output Signal - Connector (C01-1) Part 4:




PCM TERMINAL INPUT/OUTPUT SIGNAL CONNECTOR [C01-1]

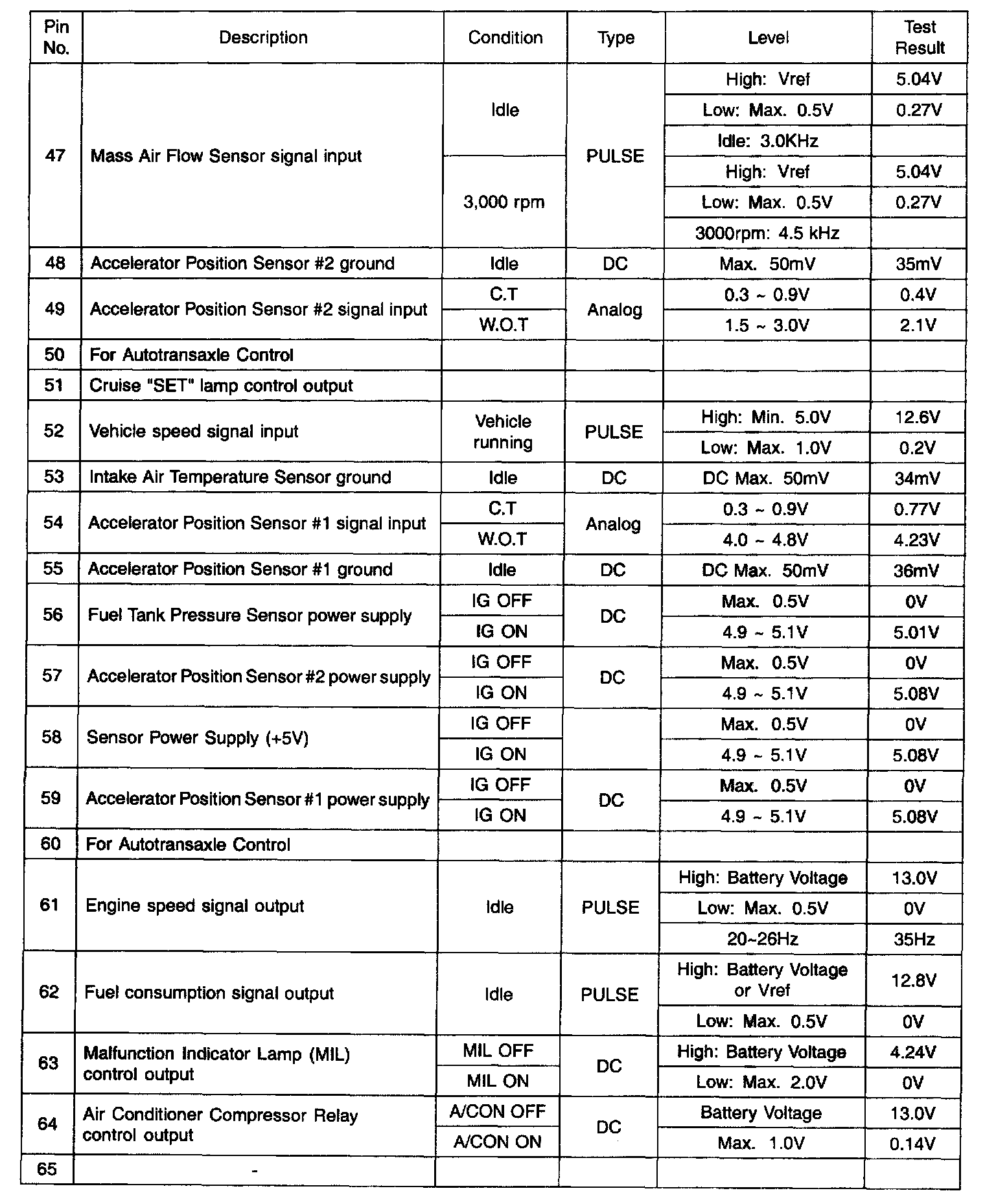

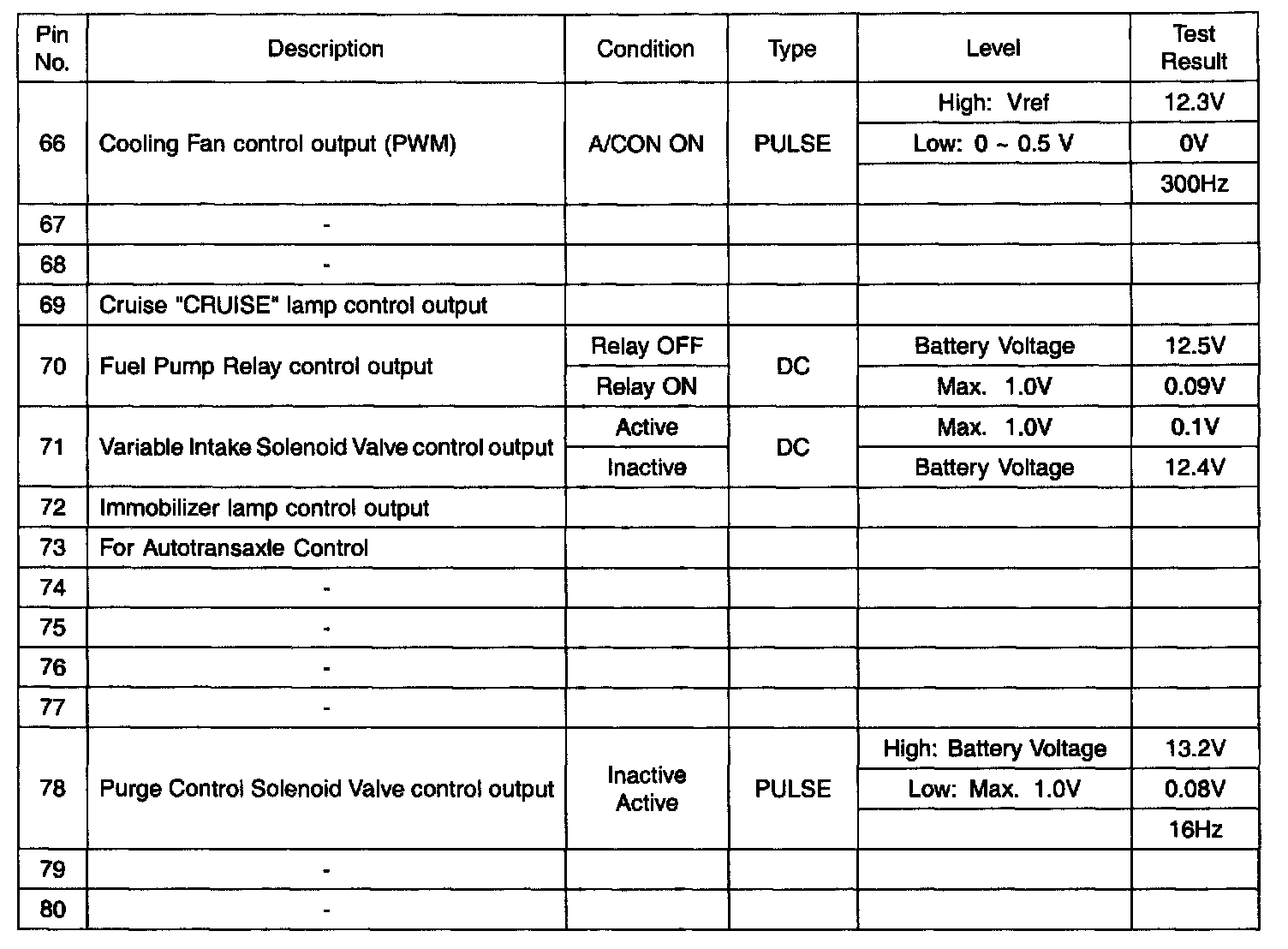

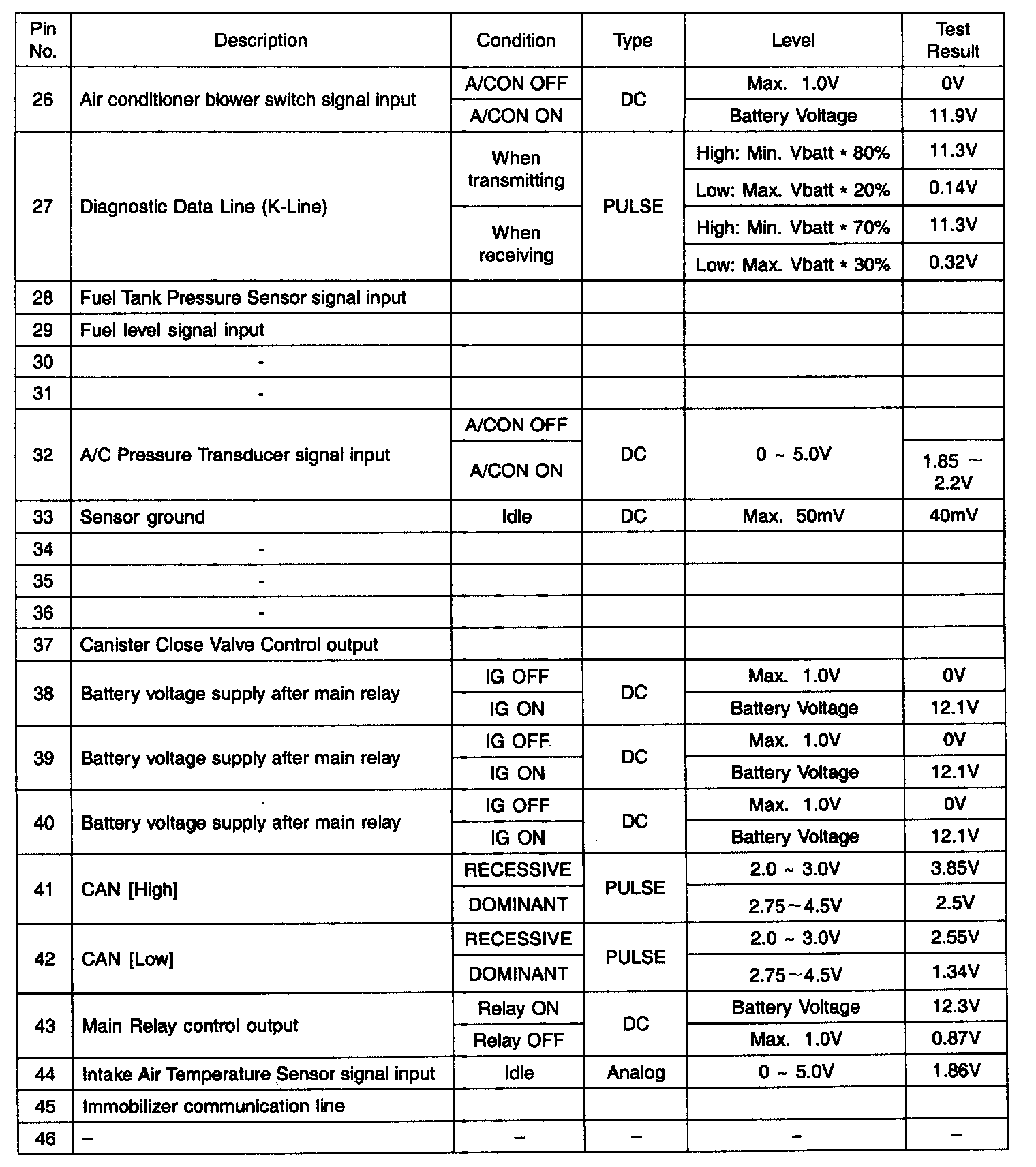

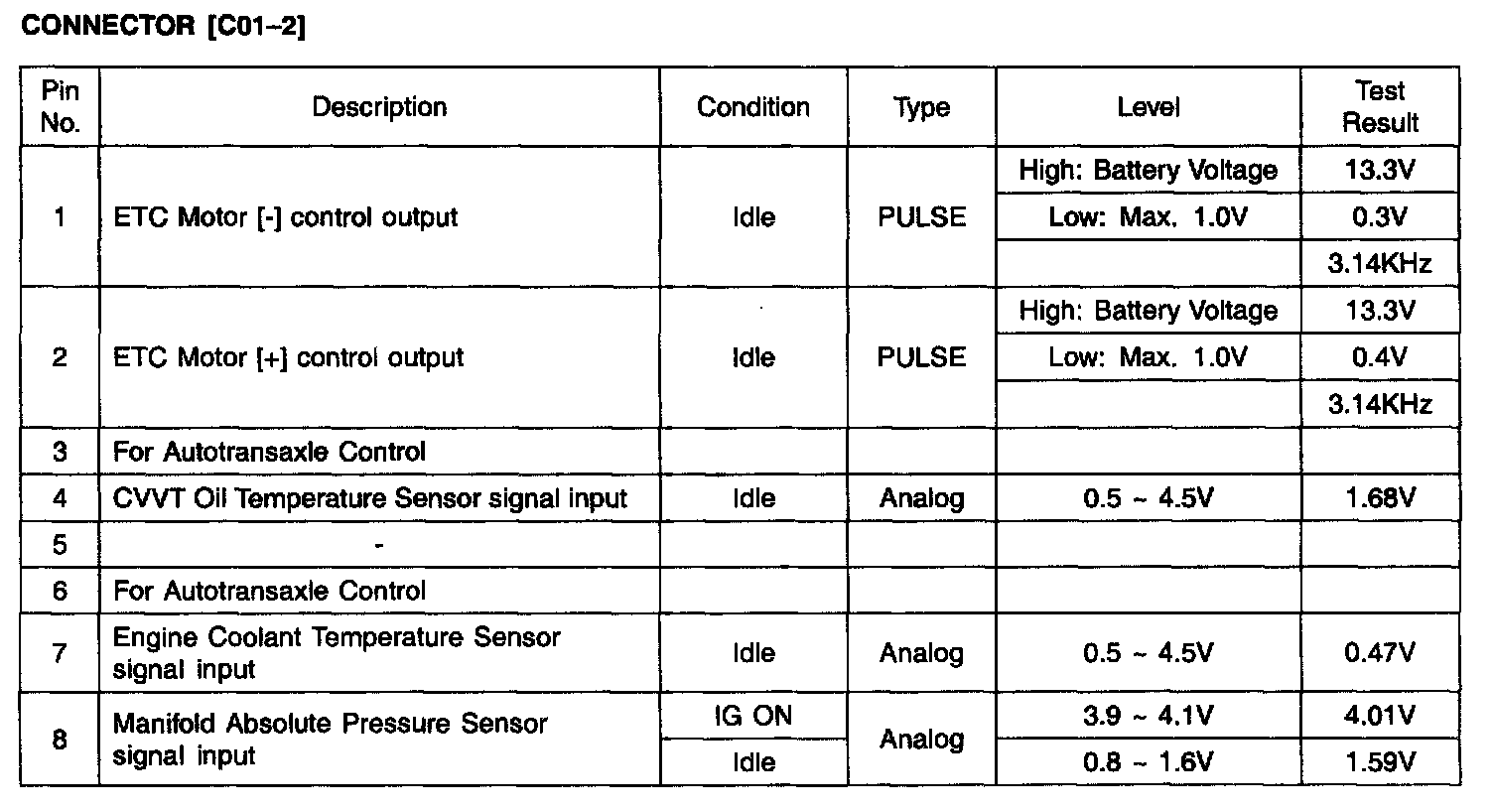

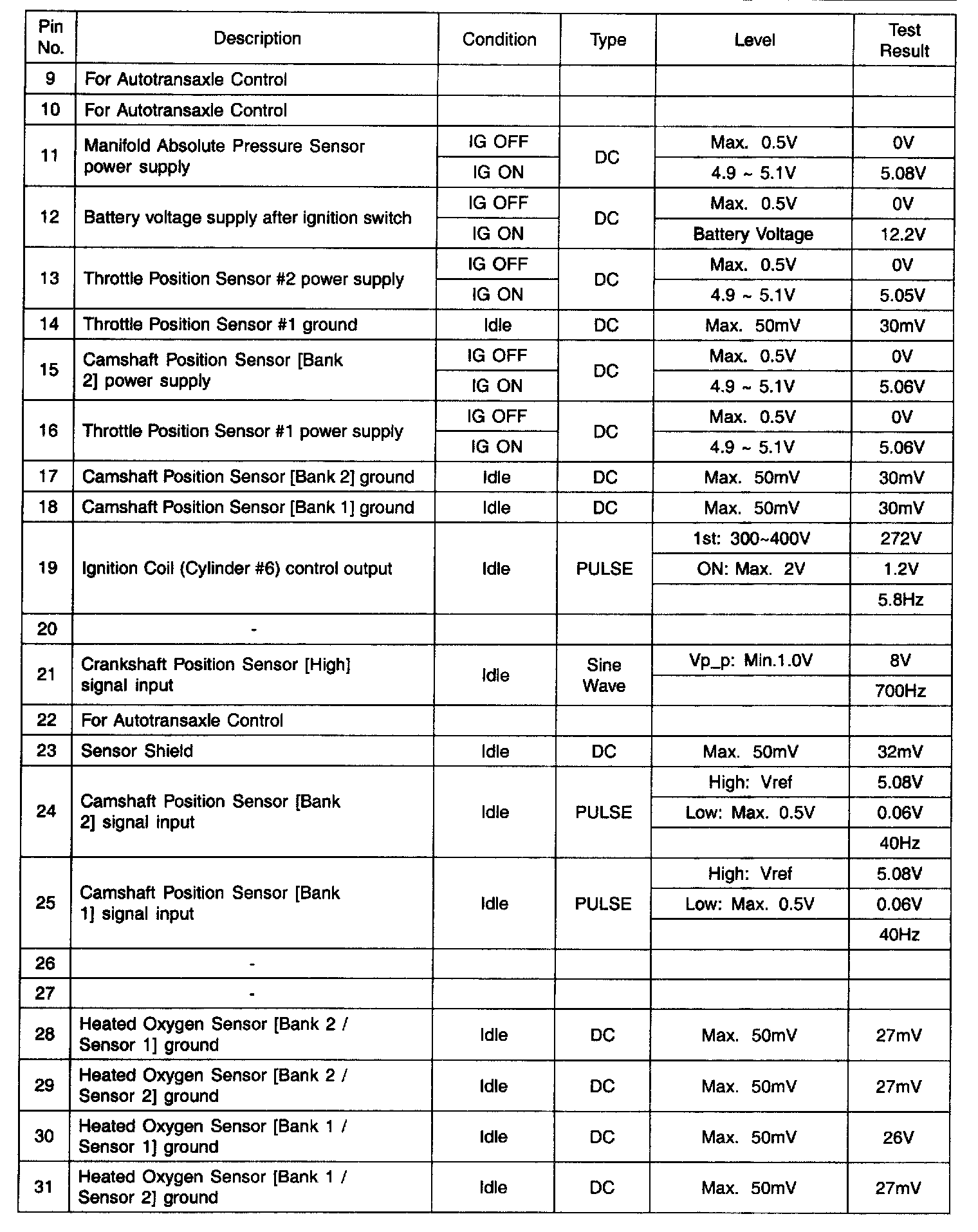

PCM Terminal Input/Output Signal - Connector (C01-2) Part 1:




PCM Terminal Input/Output Signal - Connector (C01-2) Part 2:

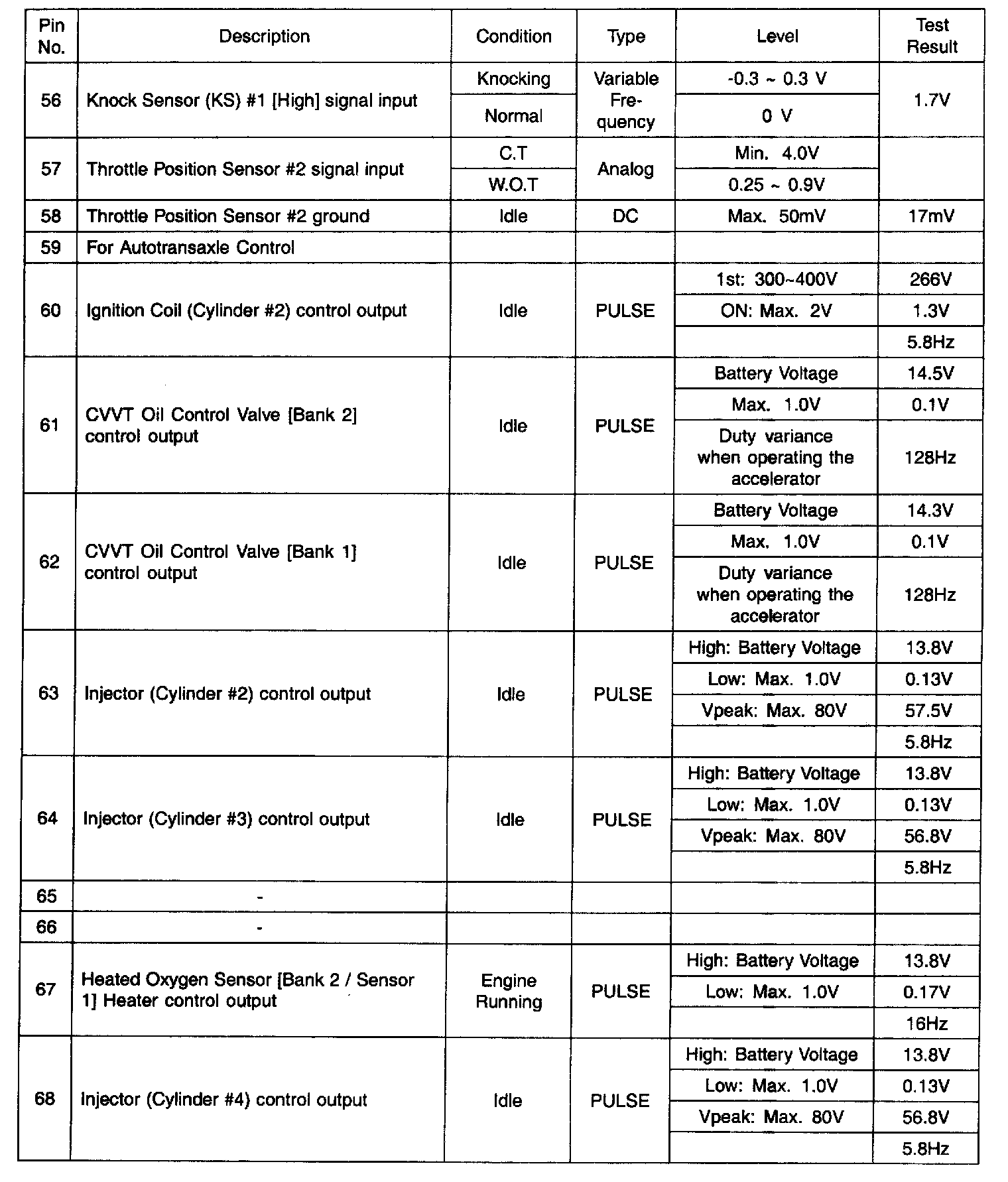

PCM Terminal Input/Output Signal - Connector (C01-2) Part 3:




PCM Terminal Input/Output Signal - Connector (C01-2) Part 4:




PCM Terminal Input/Output Signal - Connector (C01-2) Part 5:




PCM TERMINAL INPUT/OUTPUT SIGNAL CONNECTOR [C01-2]
