Electronic Brake Control Module: Testing and Inspection

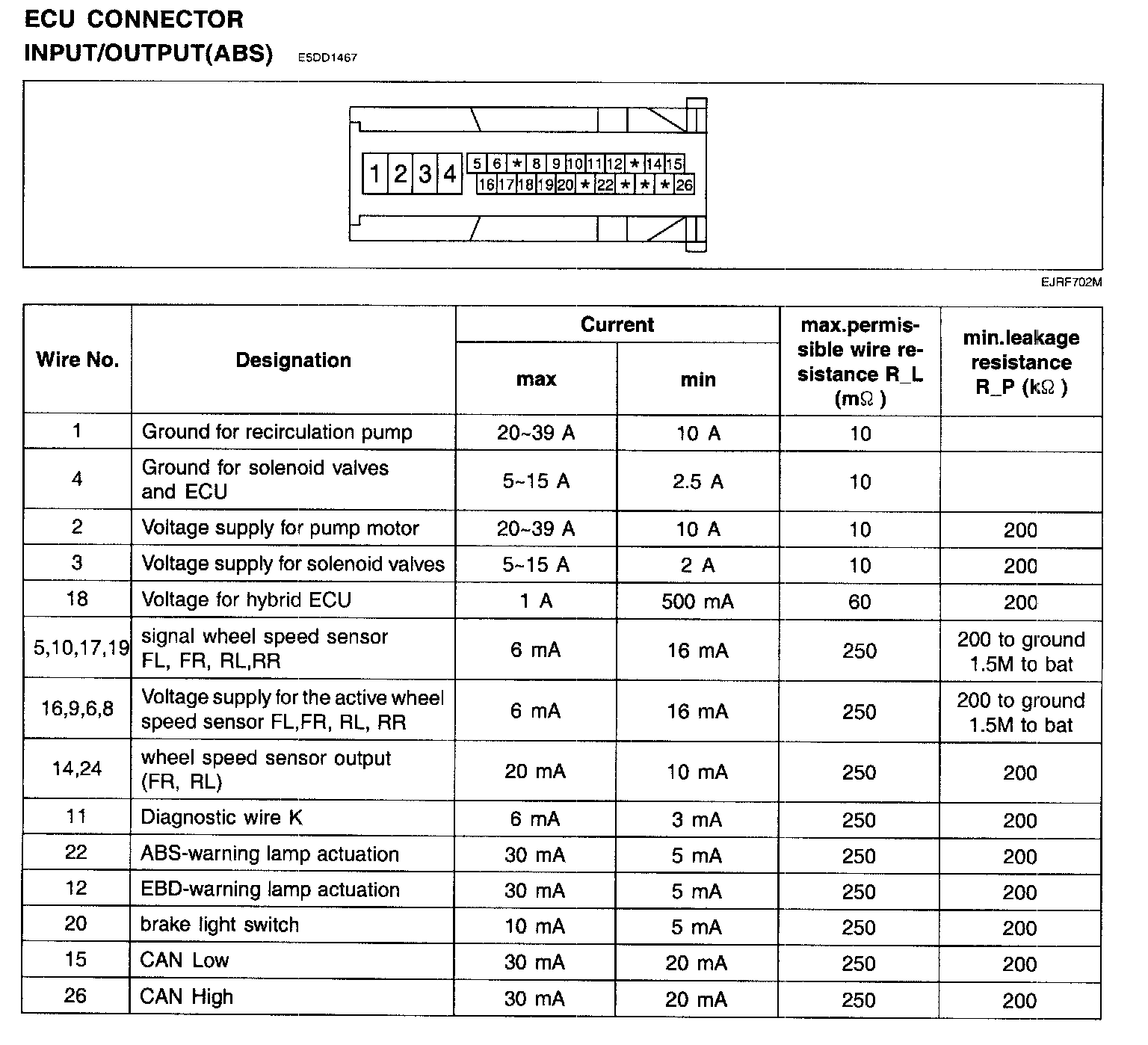

ECU CONNECTOR INPUT/OUTPUT(ABS):

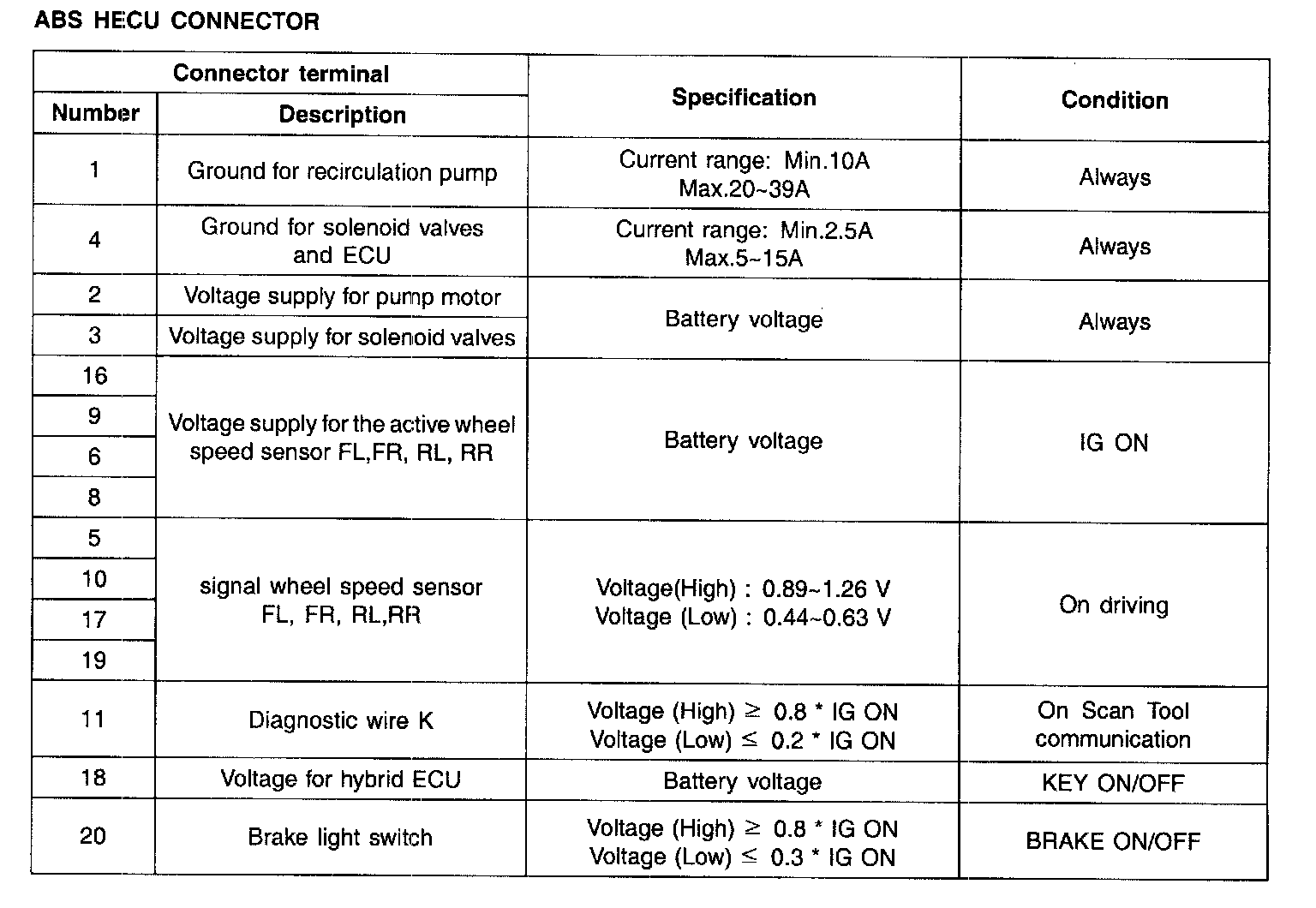

ABS HECU CONNECTOR:
