Home >> Hyundai >> 2007 >> Azera V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo

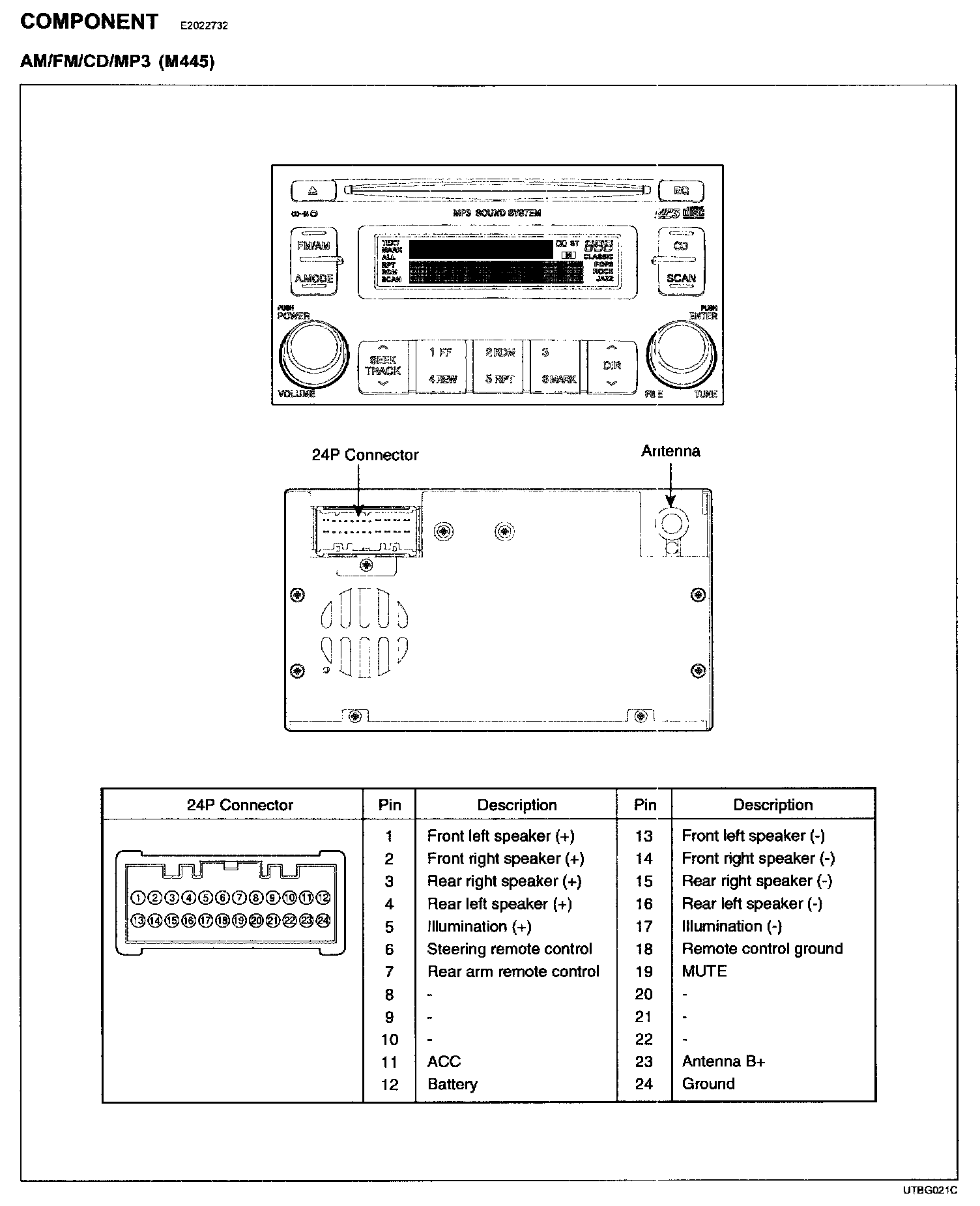

AM/FM/CD/MP3 (M445):

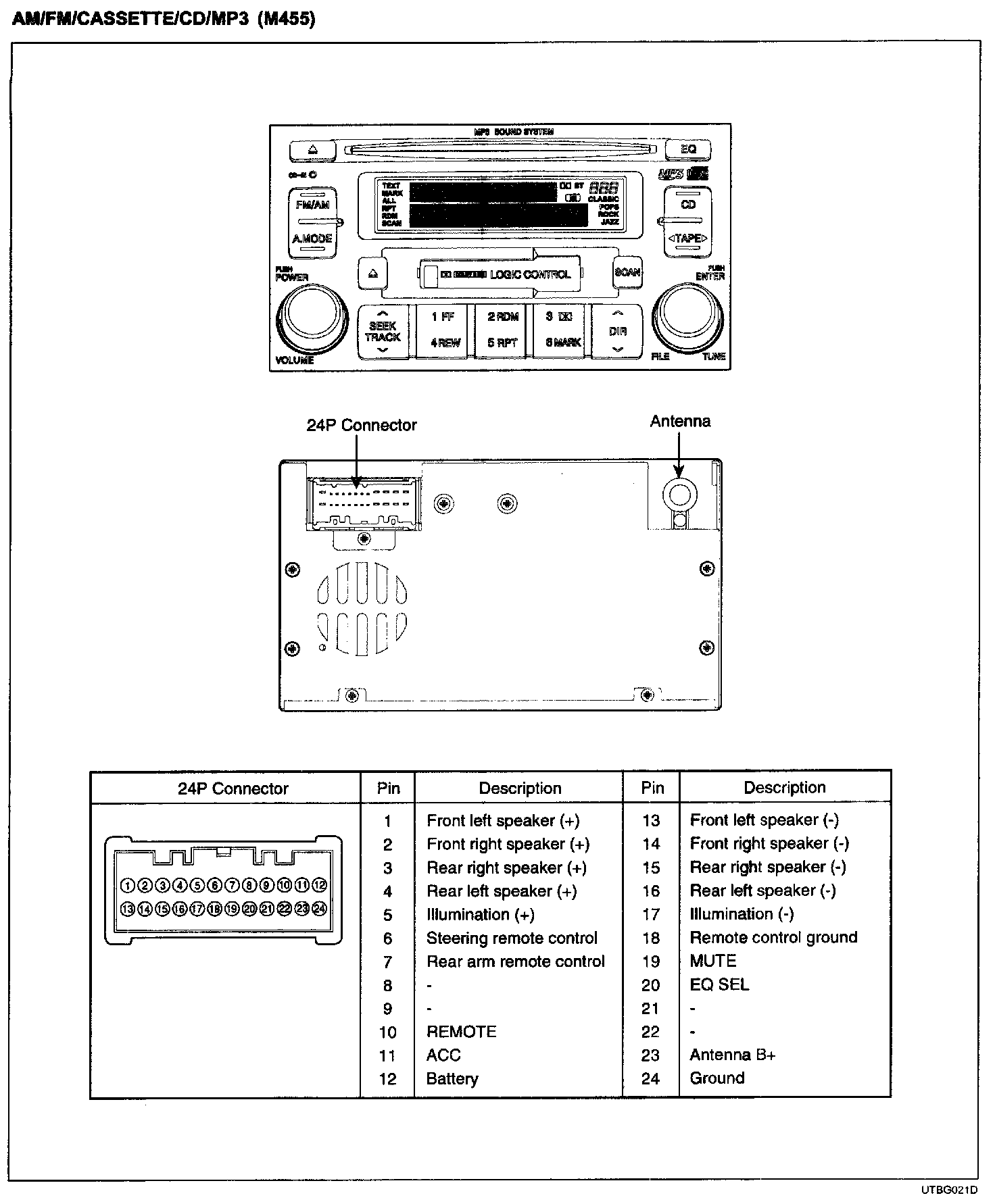

AM/FM/CASSETTE/CD/MP3 (M455):

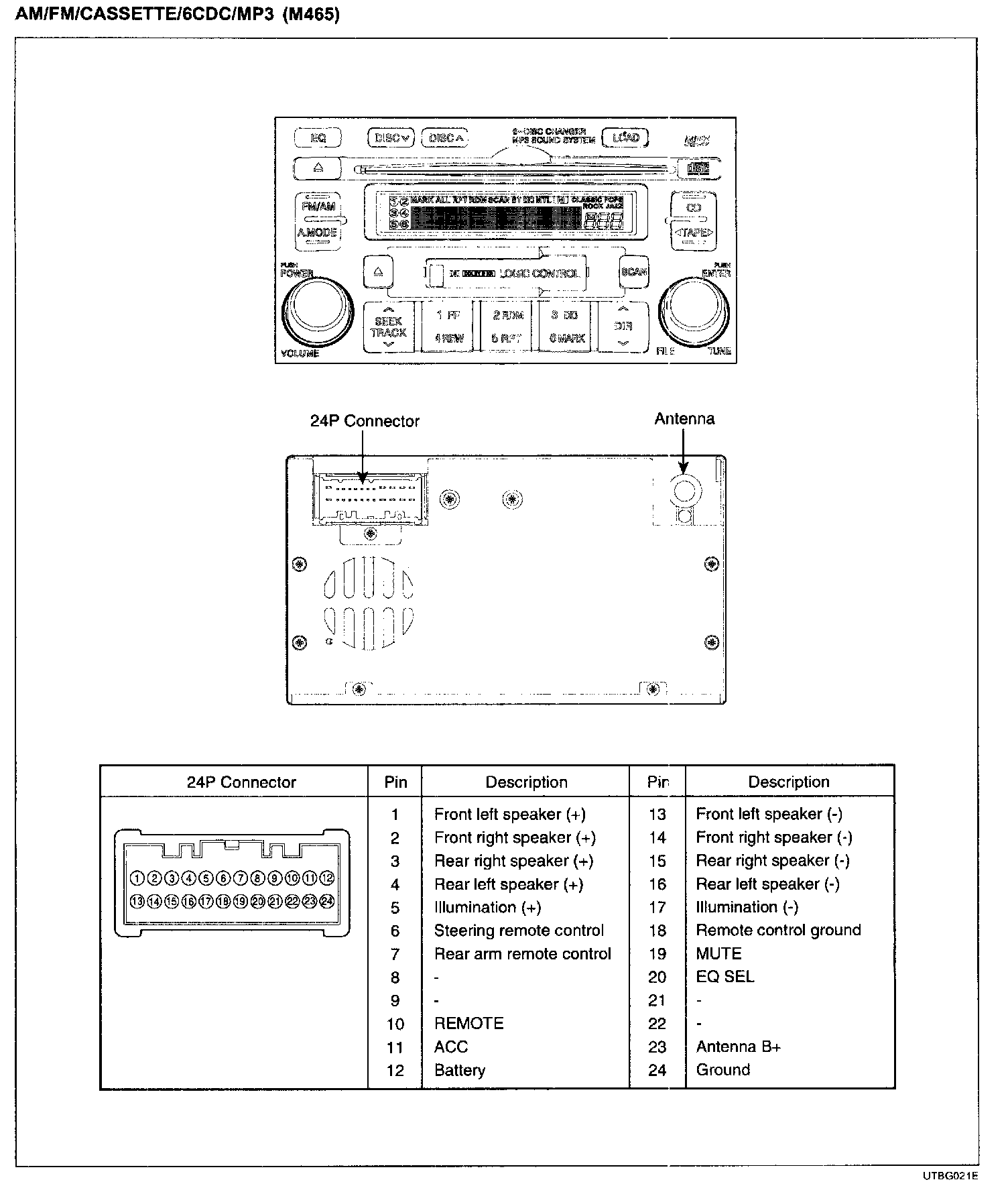

AM/FM/CASSETTE/6CDC/MP3 (M465):

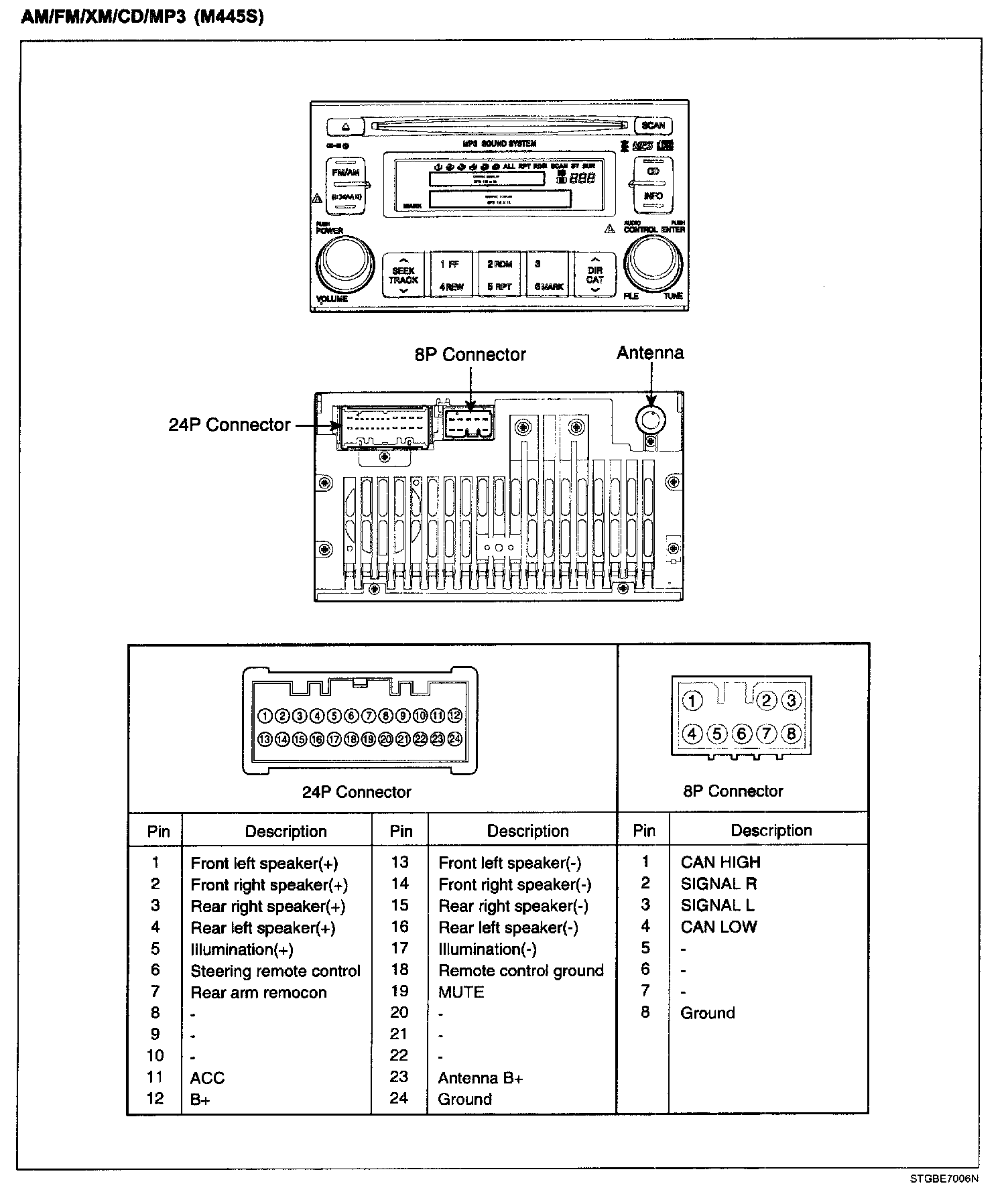

AM/FM/XM/CD/MP3 (M445S):

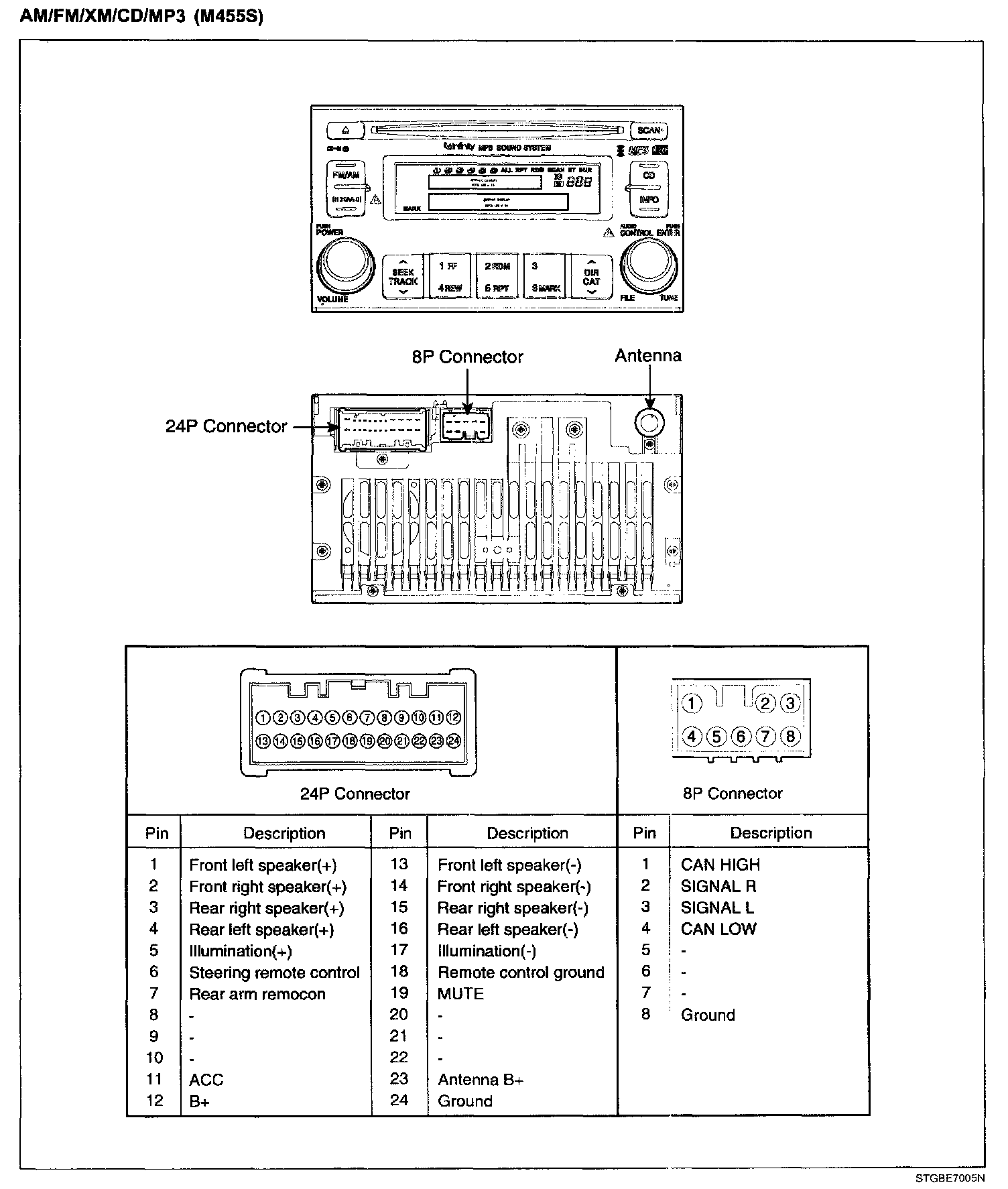

AM/FM/XM/CD/MP3 (M455S):

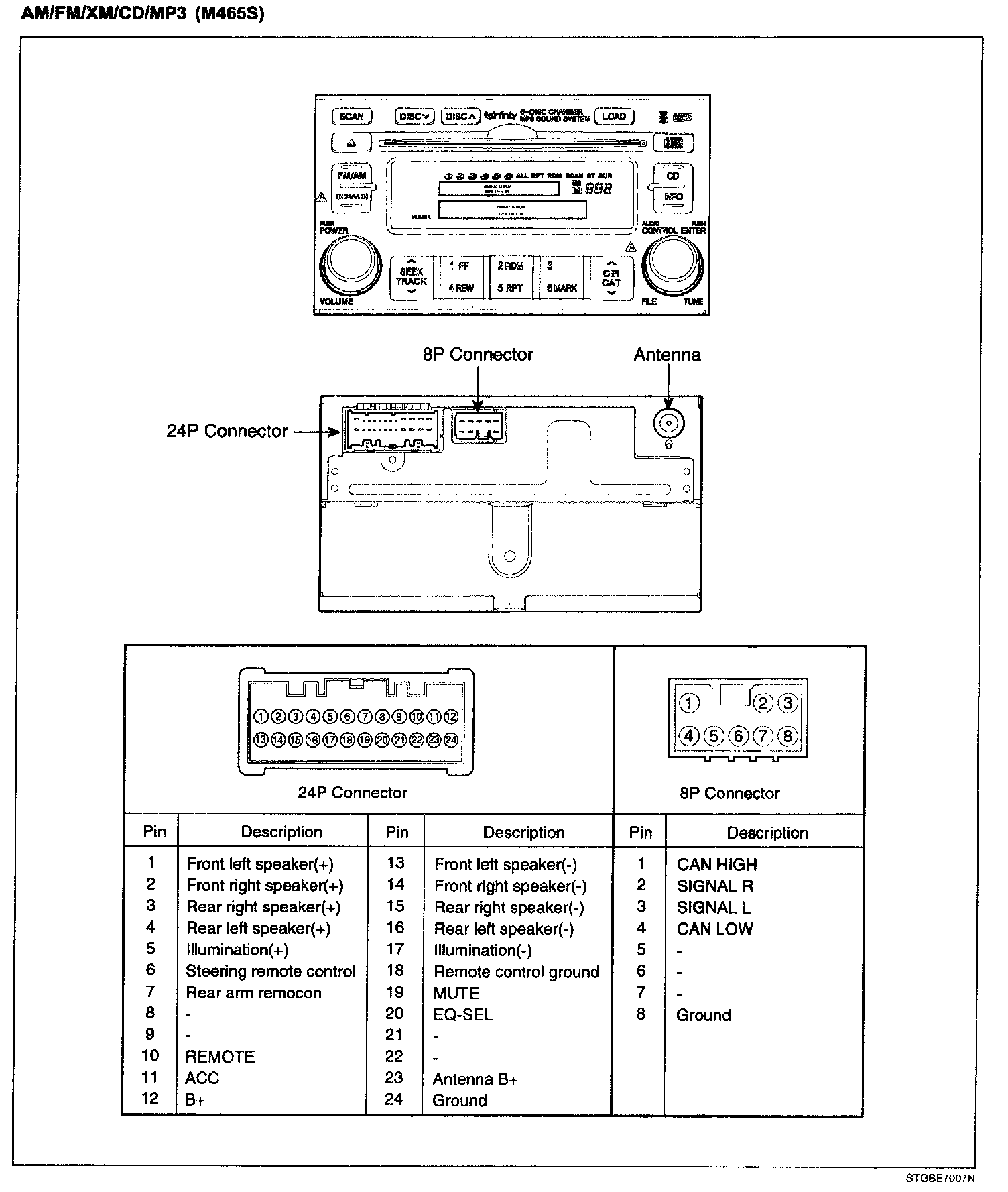

AM/FM/XM/CD/MP3 (M465S):

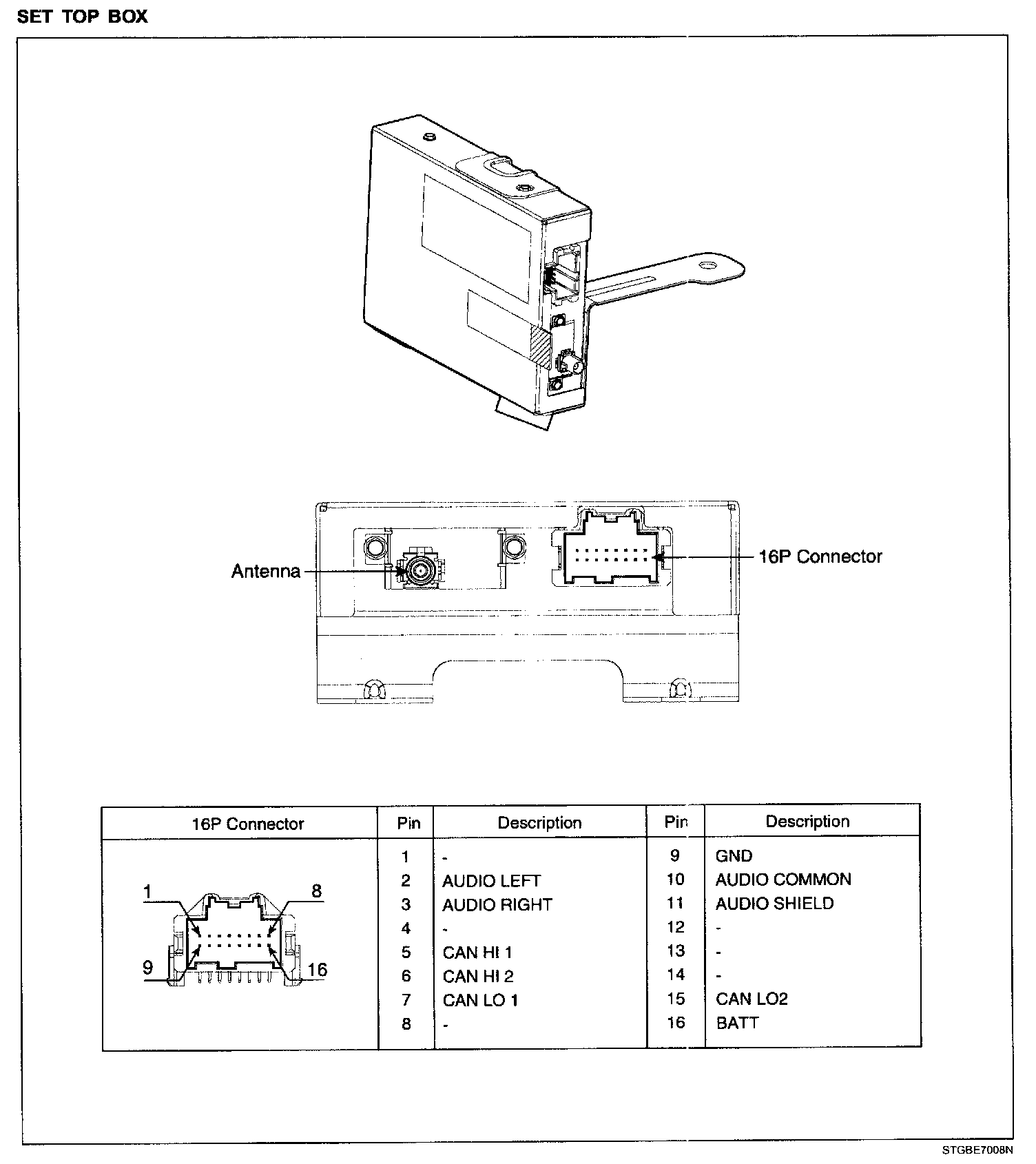

Set Top Box:
