Home >> Hyundai >> 2007 >> Azera V6-3.3L >> Repair and Diagnosis >> Locations >> Harness Locations >> Main Harness

Main Harness

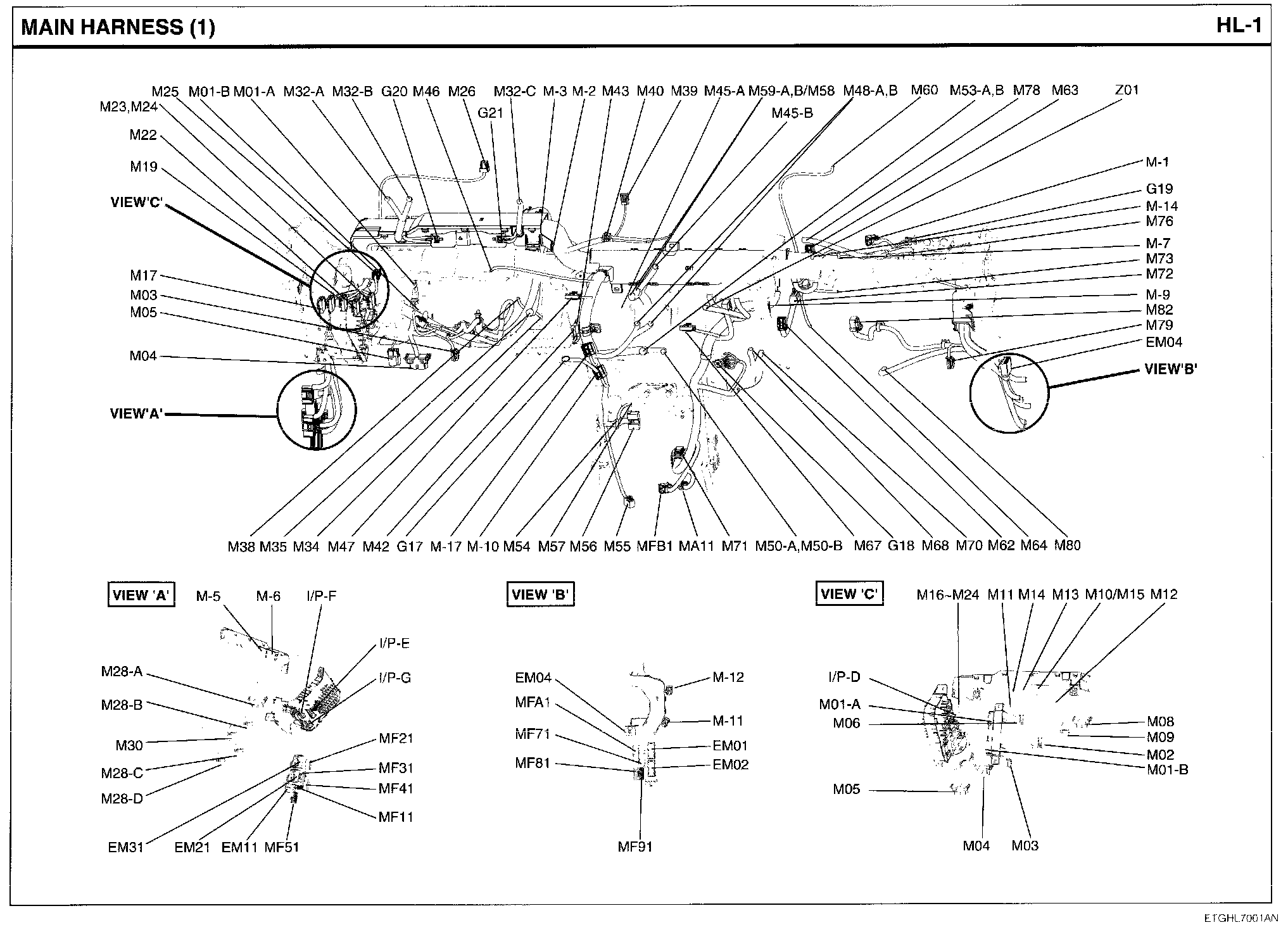

Main Harness (1):

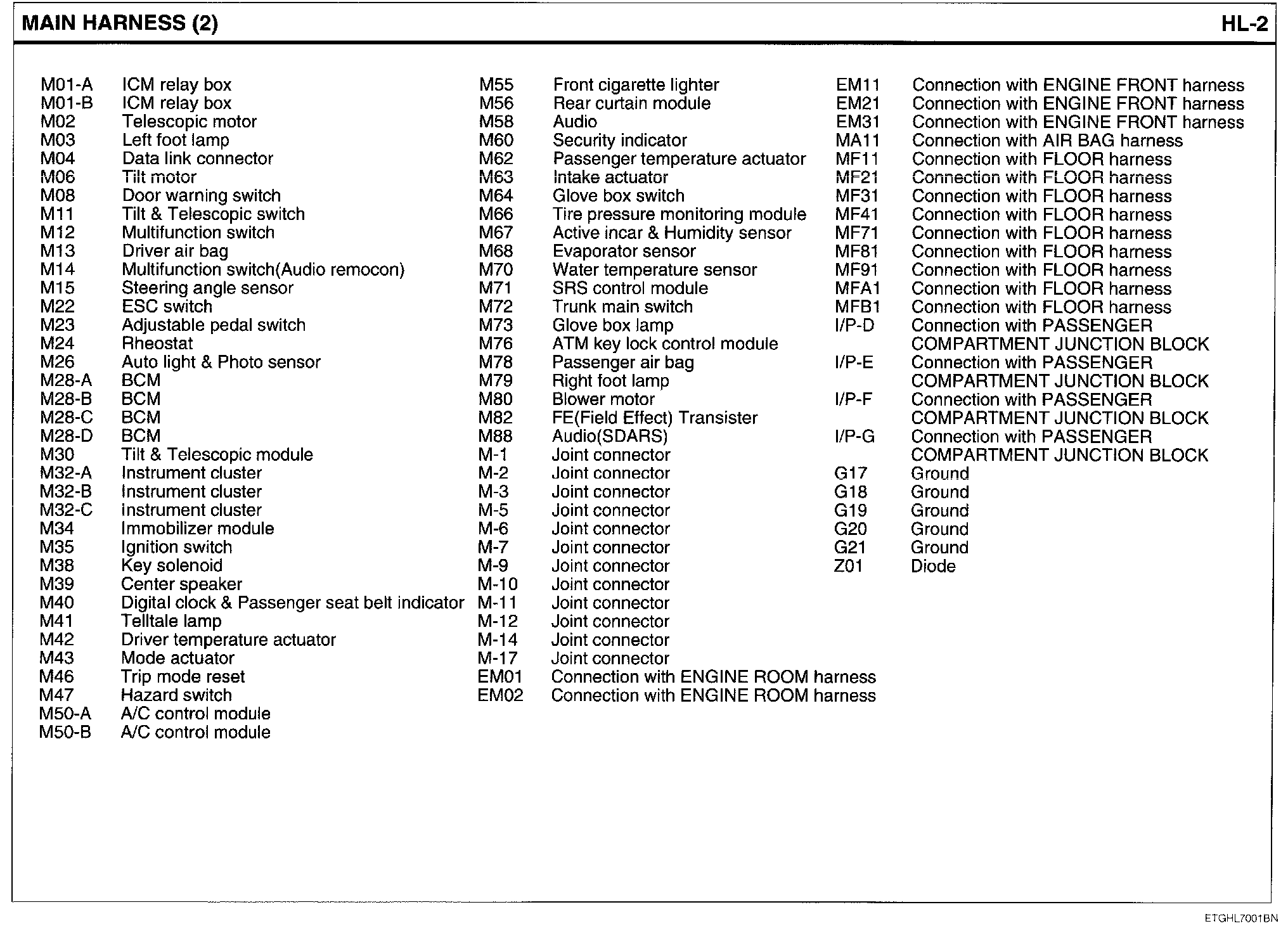

Main Harness (2):
