Home >> Hyundai >> 2007 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Restraints and Safety Systems

Restraints and Safety Systems

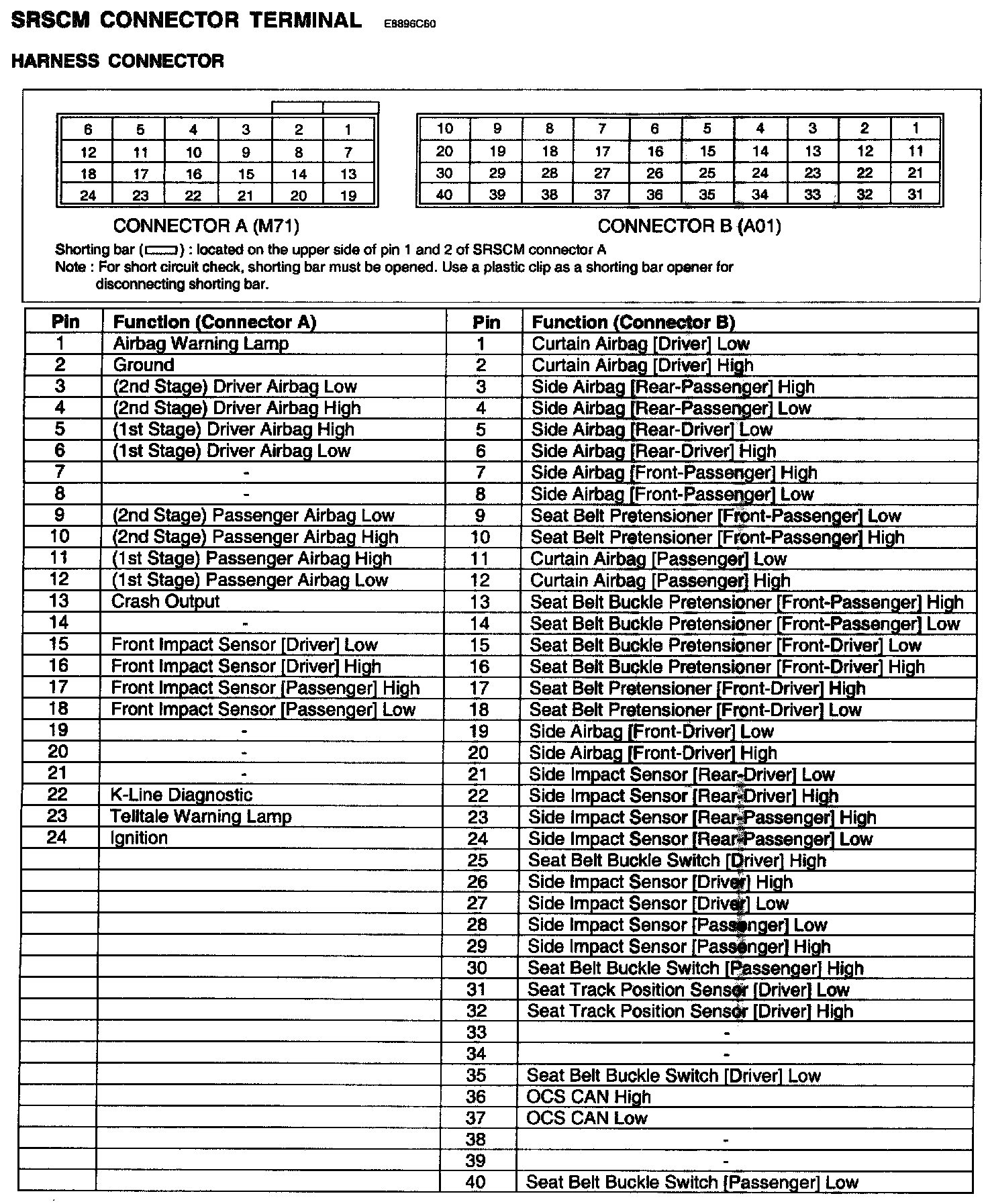

SRSCM Connector Terminal:
