Home >> Hyundai >> 2007 >> Accent L4-1.6L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Testing and Inspection

Electronic Brake Control Module: Testing and Inspection

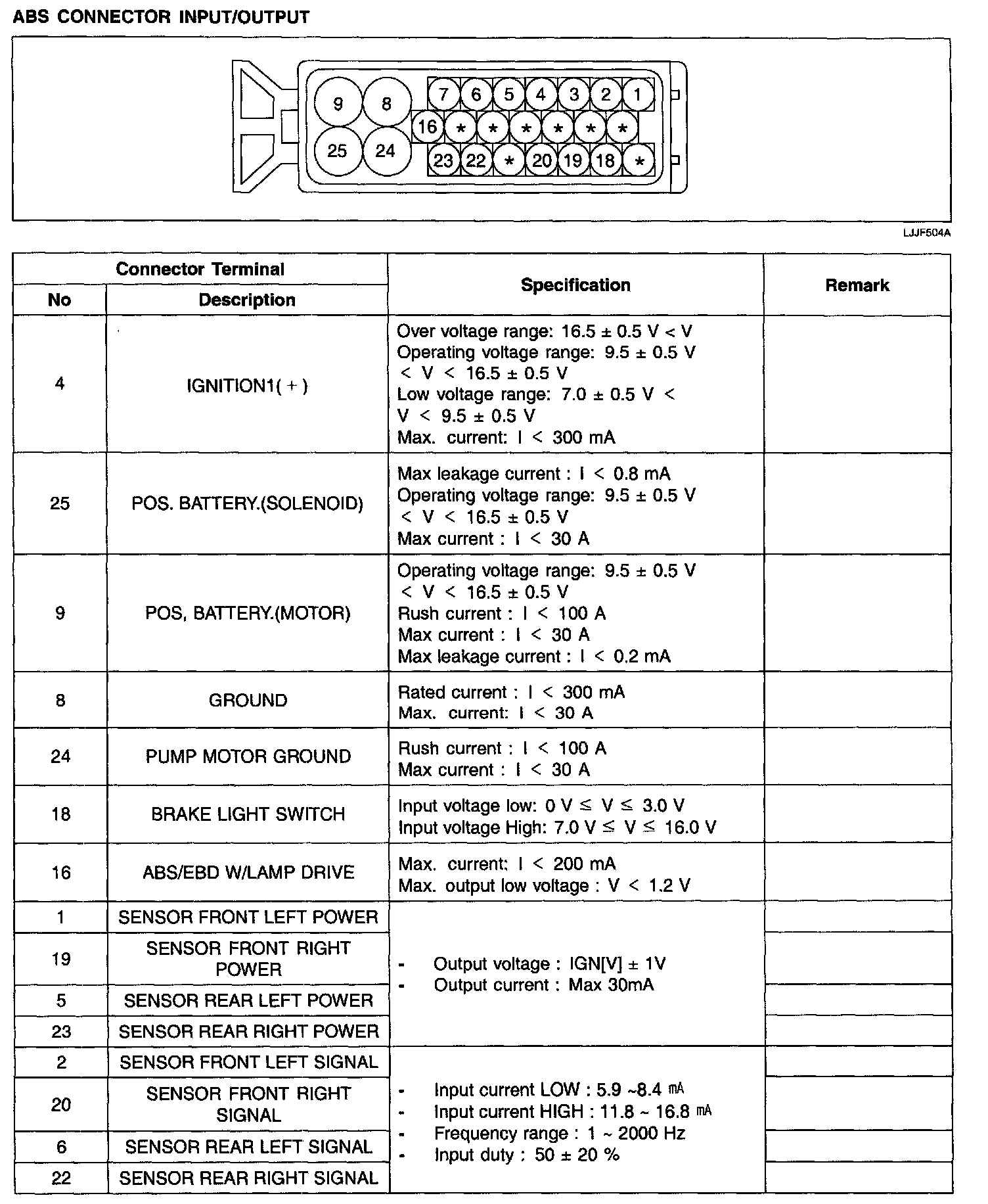

ABS CONNECTOR INPUT/OUTPUT:
