Home >> Hyundai >> 2006 >> Tucson L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Compartment Junction Block >> An Index

An Index

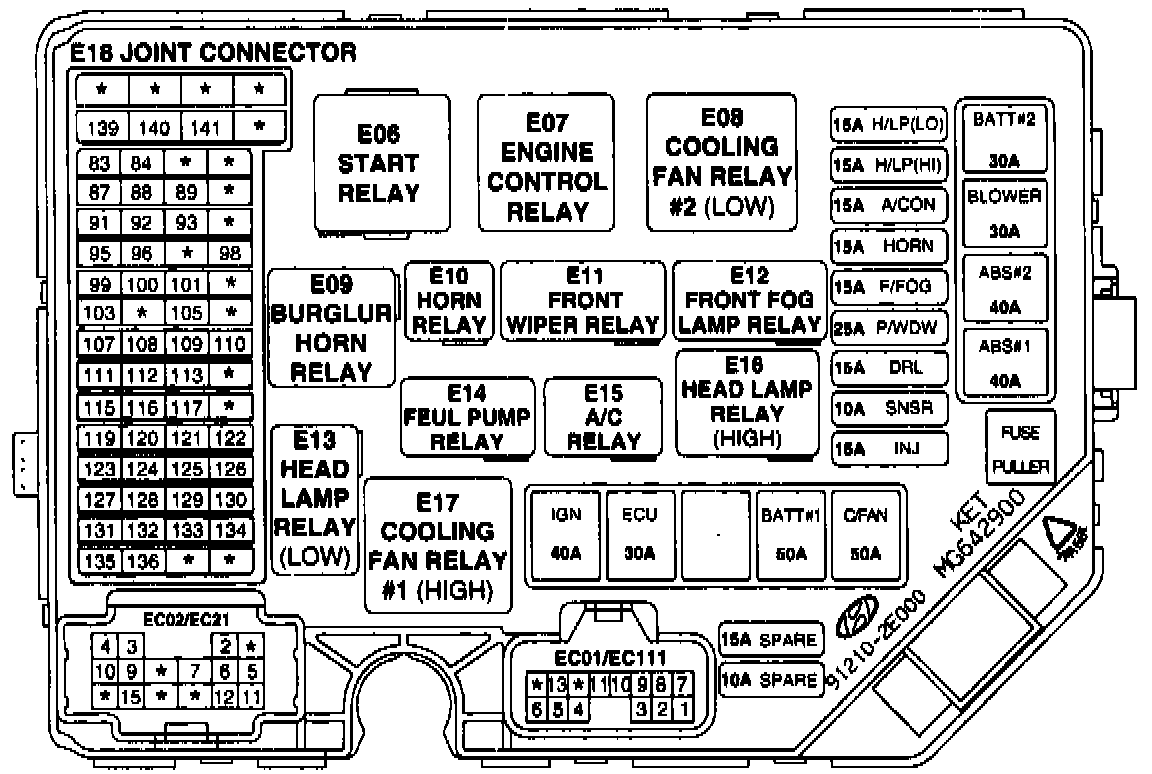

E/R Fuse & Relay Box View:
