General Specifications

GENERAL SPECIFICATIONS

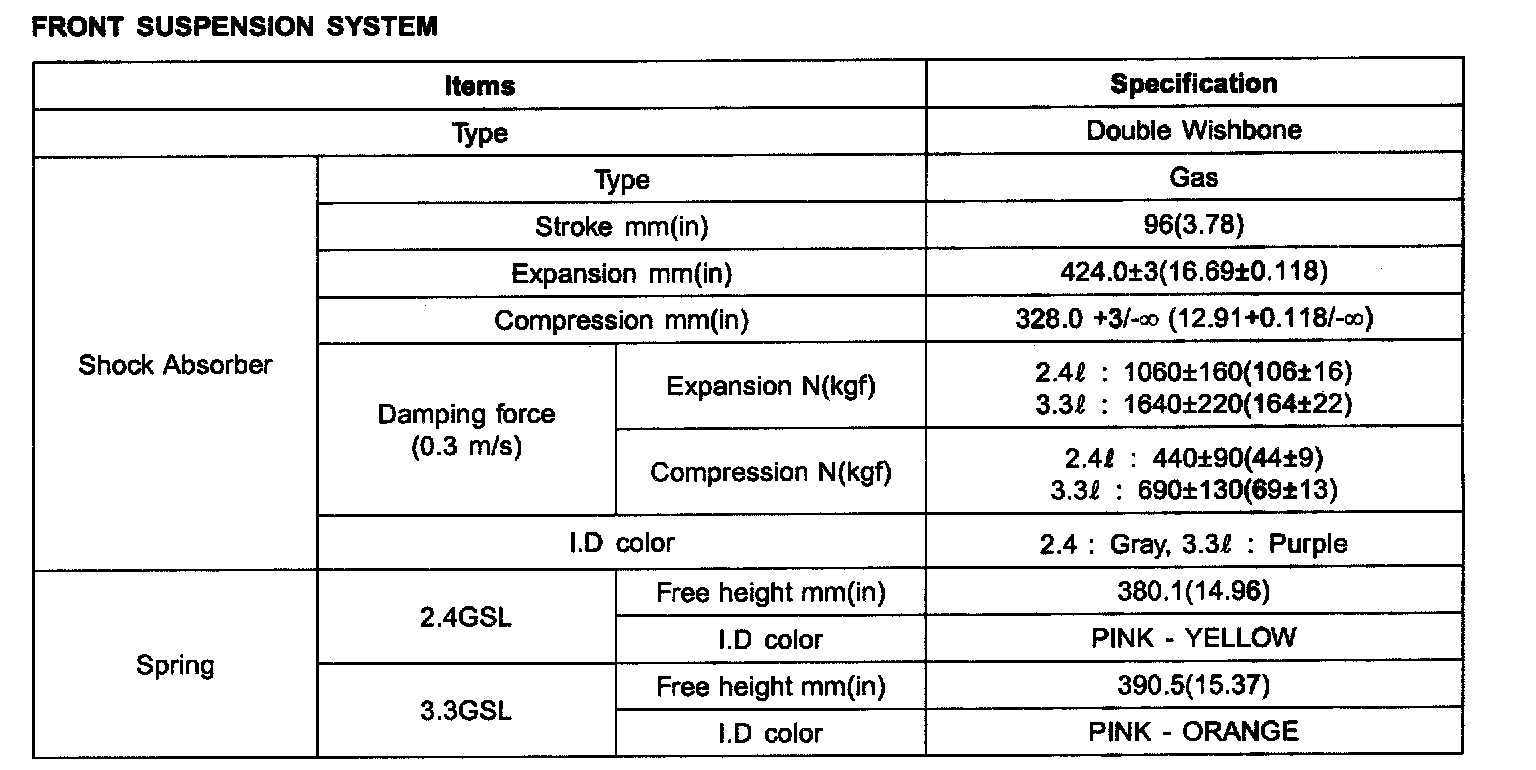

FRONT SUSPENSION SYSTEM

FRONT SUSPENSION SYSTEM:

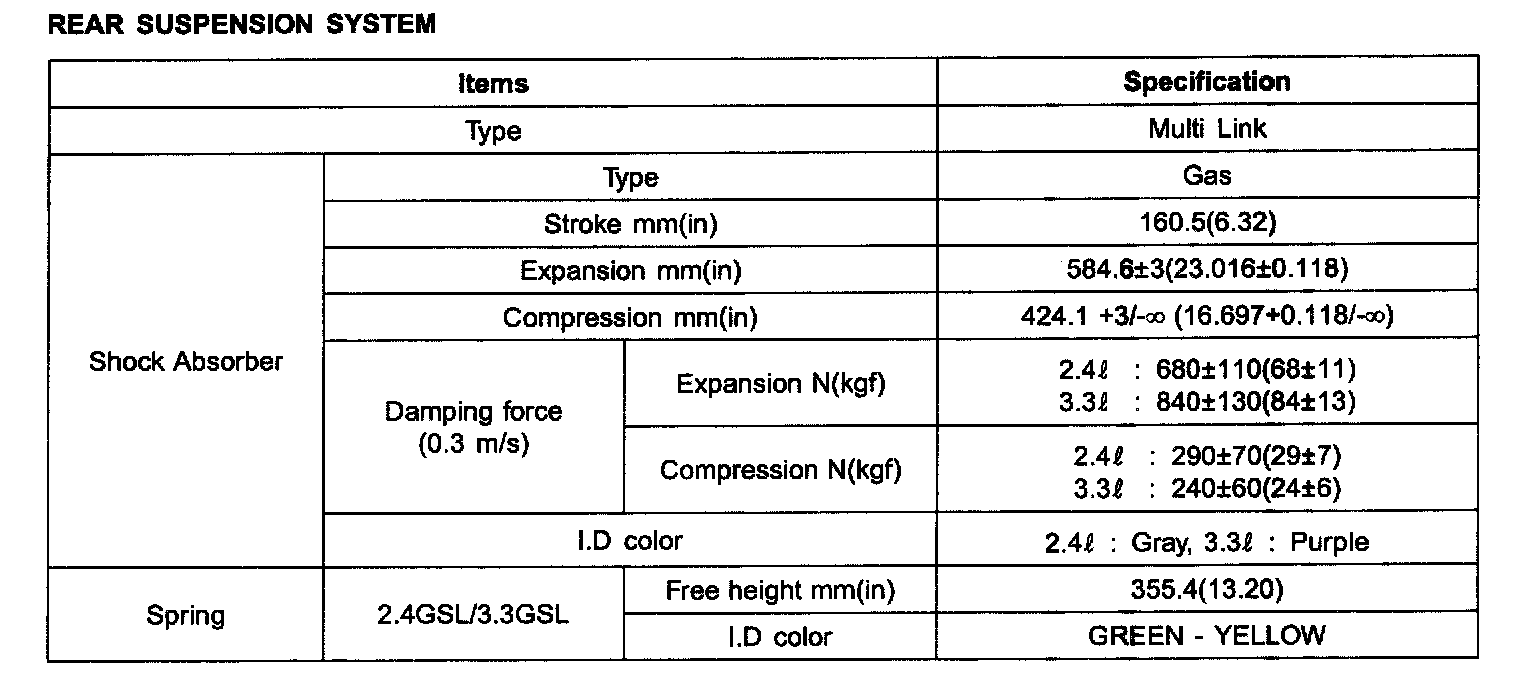

REAR SUSPENSION SYSTEM

REAR SUSPENSION SYSTEM:
