Fuse Block: Application and ID

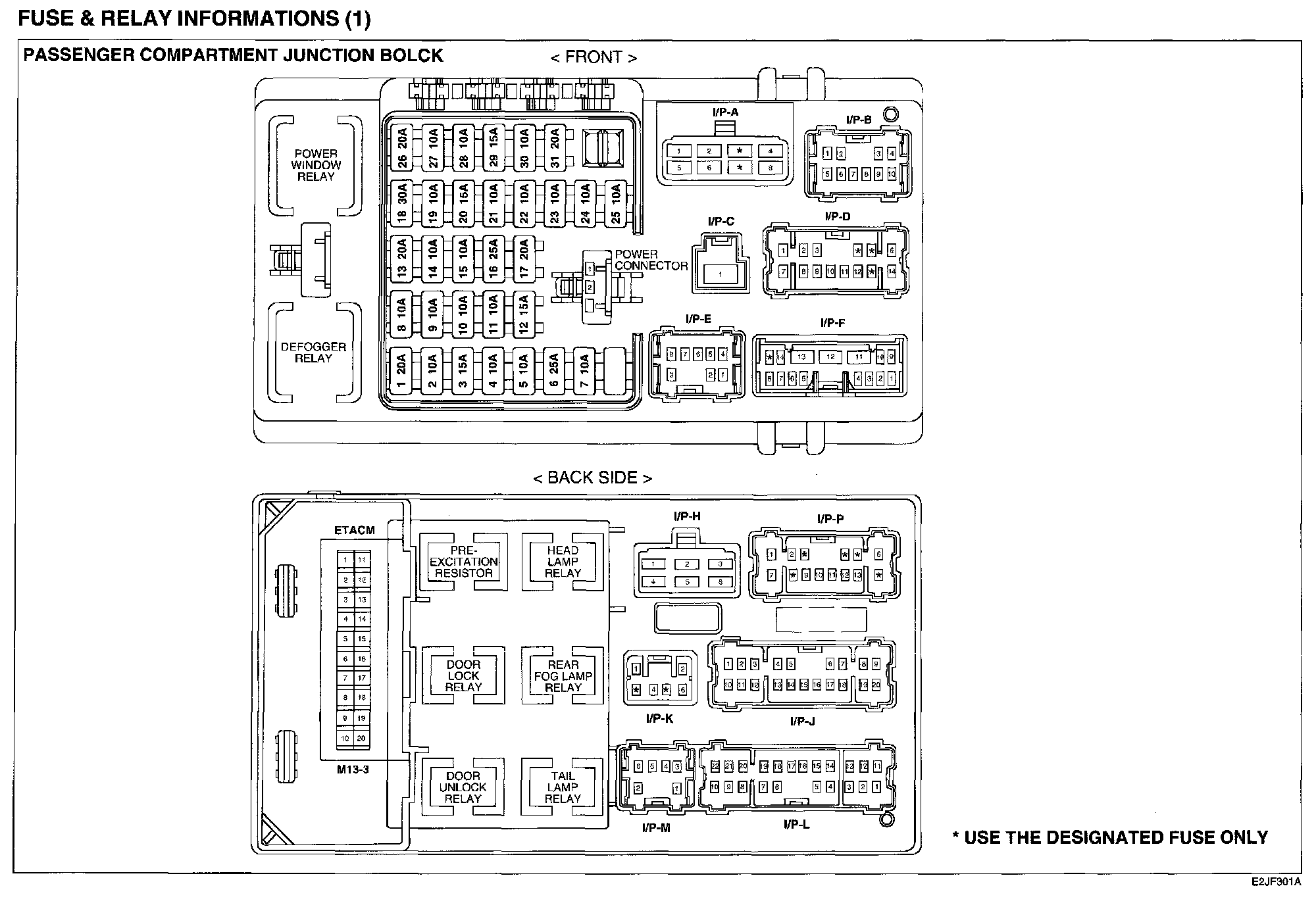

Passenger Compartment Junction Block View:

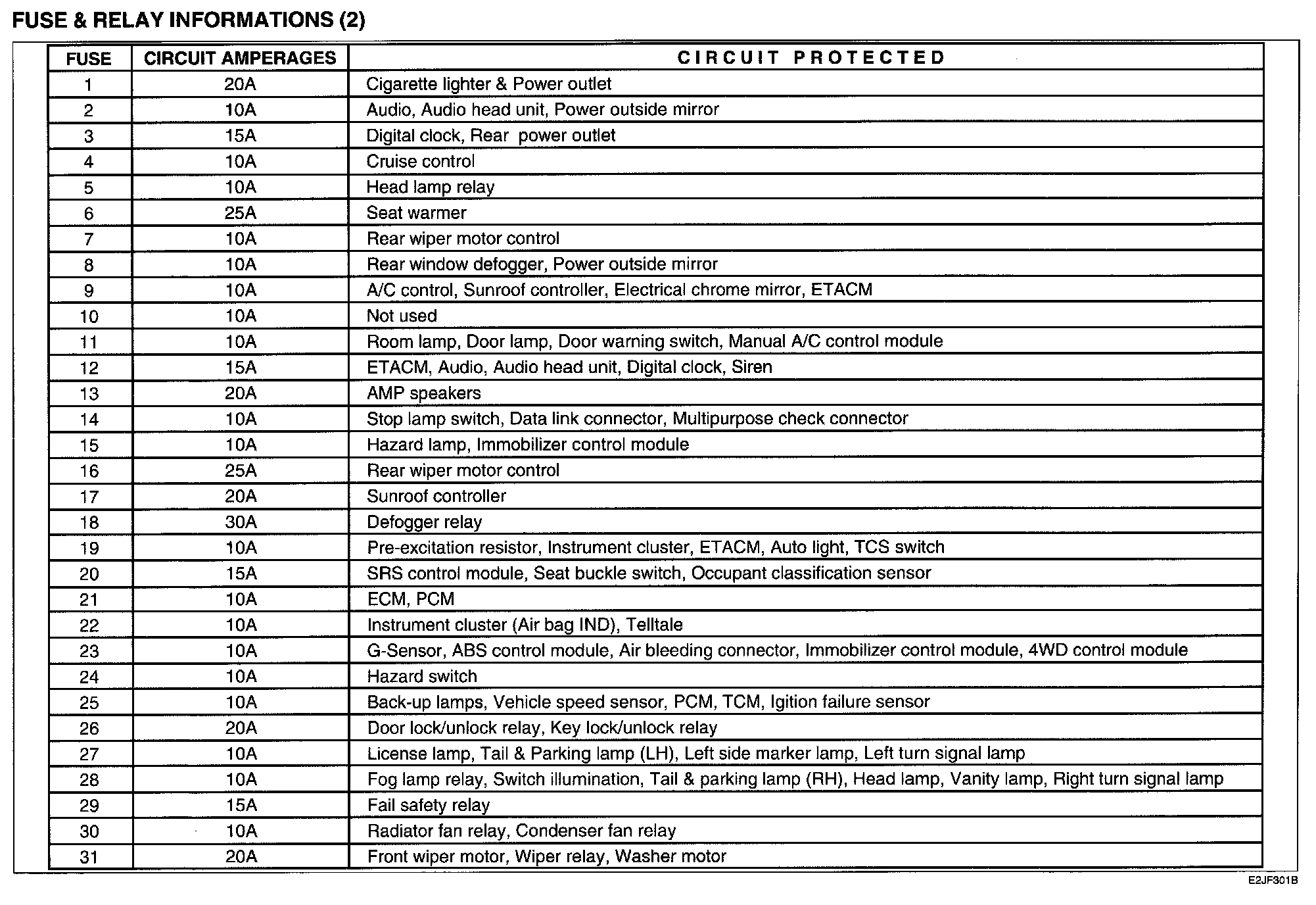

Passenger Compartment Junction Block Circuit Details:

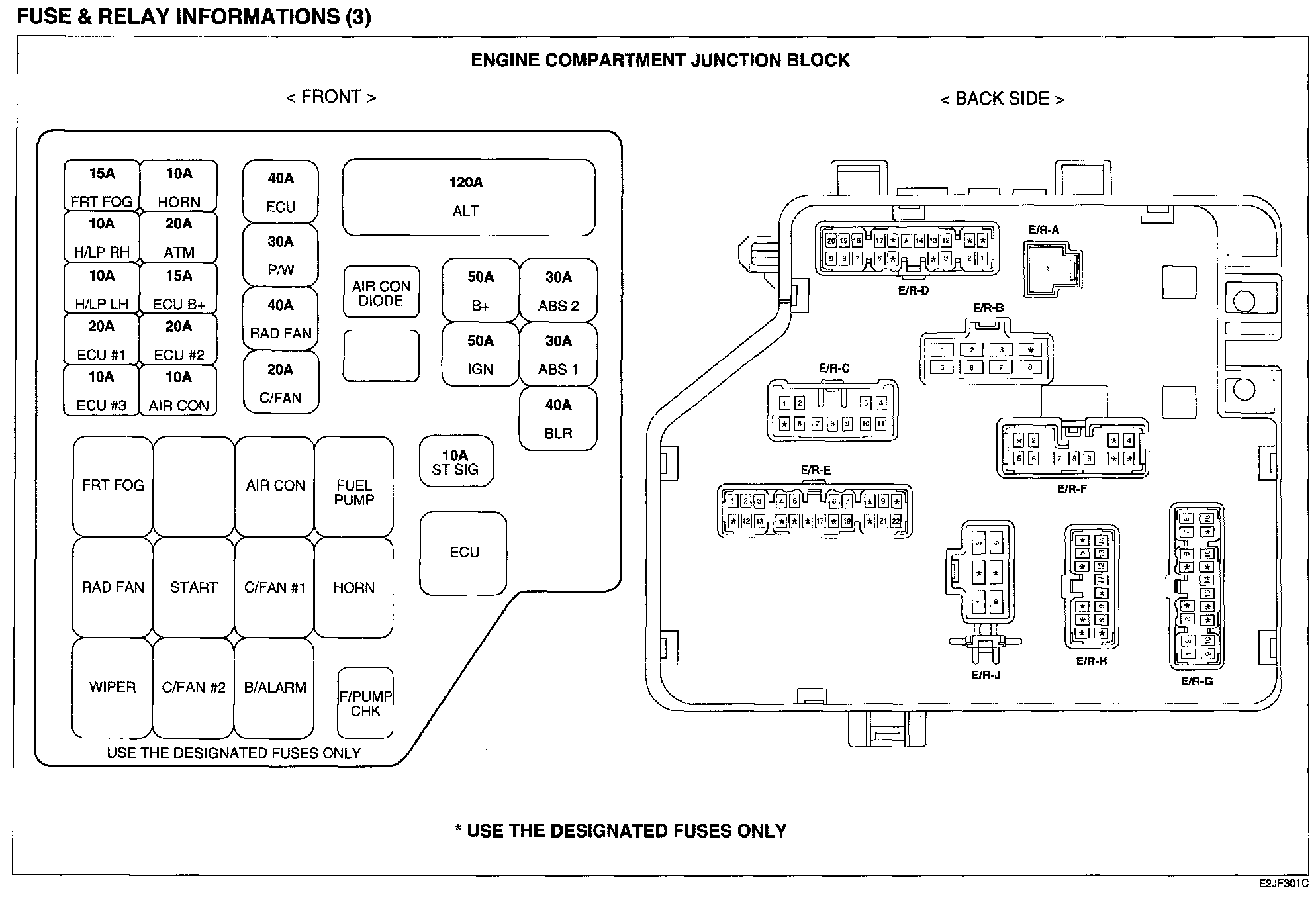

Engine Compartment Junction Block View:

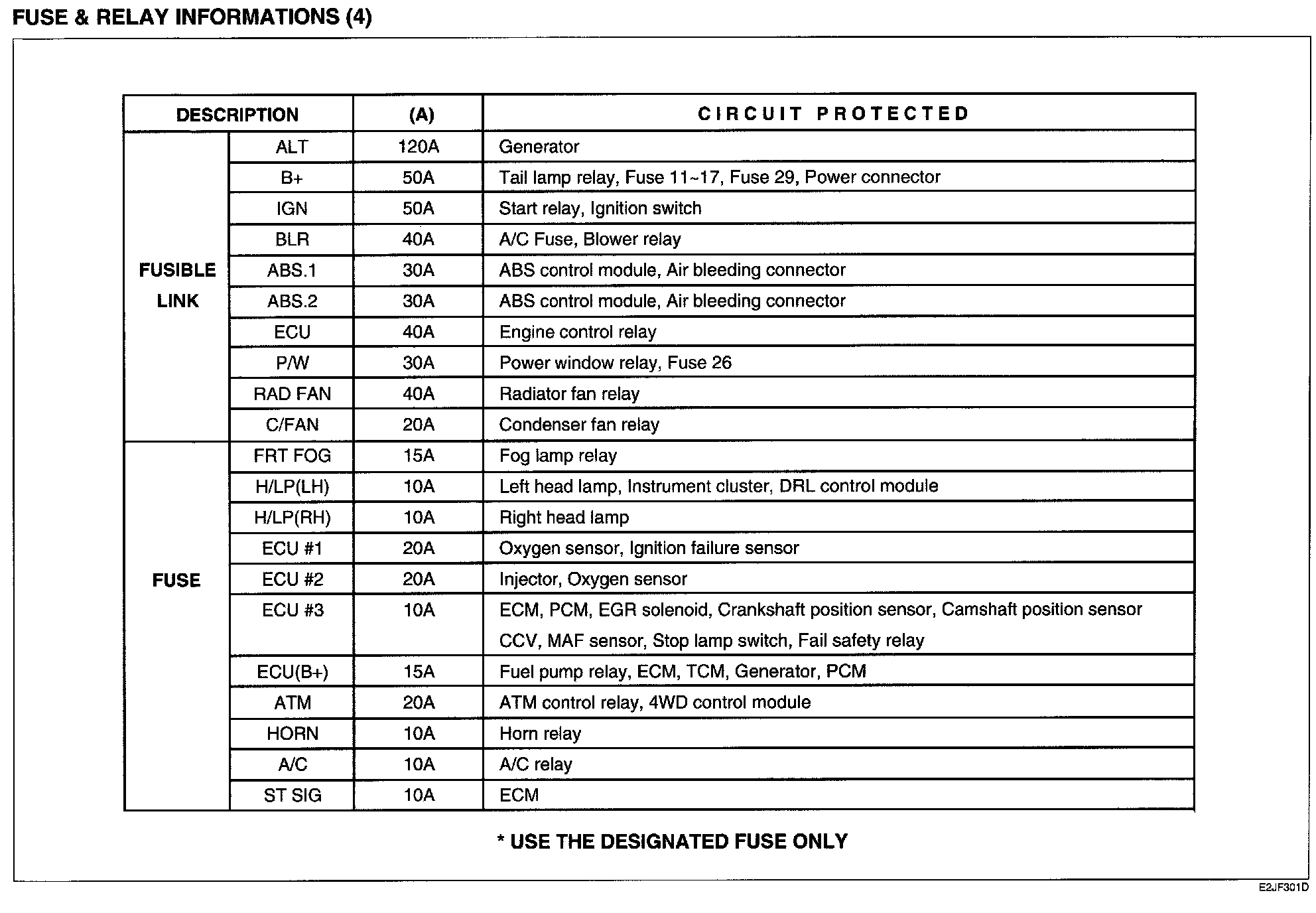

Engine Compartment Junction Block Circuit Details:
