Electronic Brake Control Module: Testing and Inspection

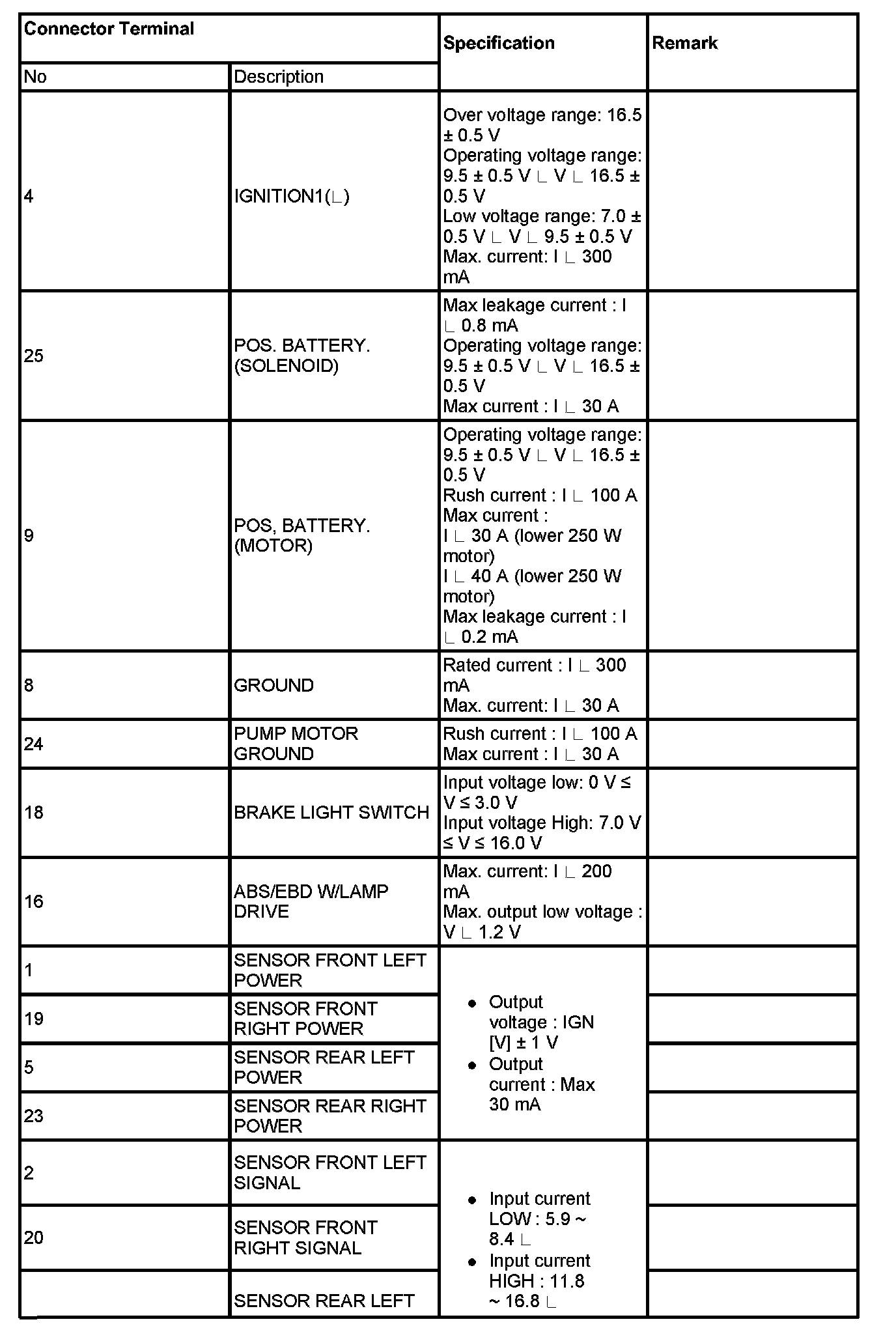

ABS CONNECTOR INPUT/OUTPUT (part 1):



ABS CONNECTOR INPUT/OUTPUT (part 2):



ABS CONNECTOR INPUT/OUTPUT (part 3):
