Home >> Hyundai >> 2006 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Automatic

Automatic

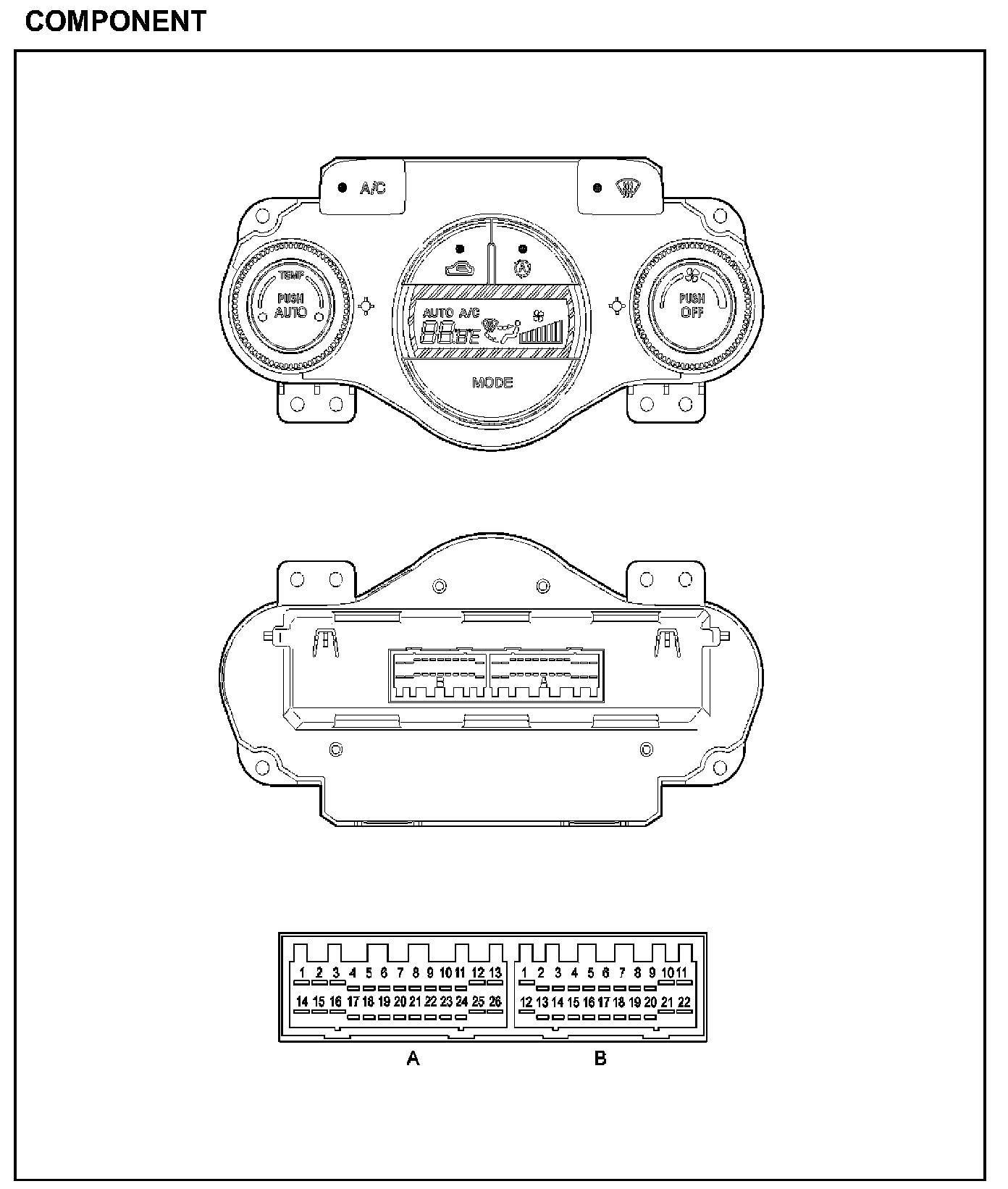

Component:

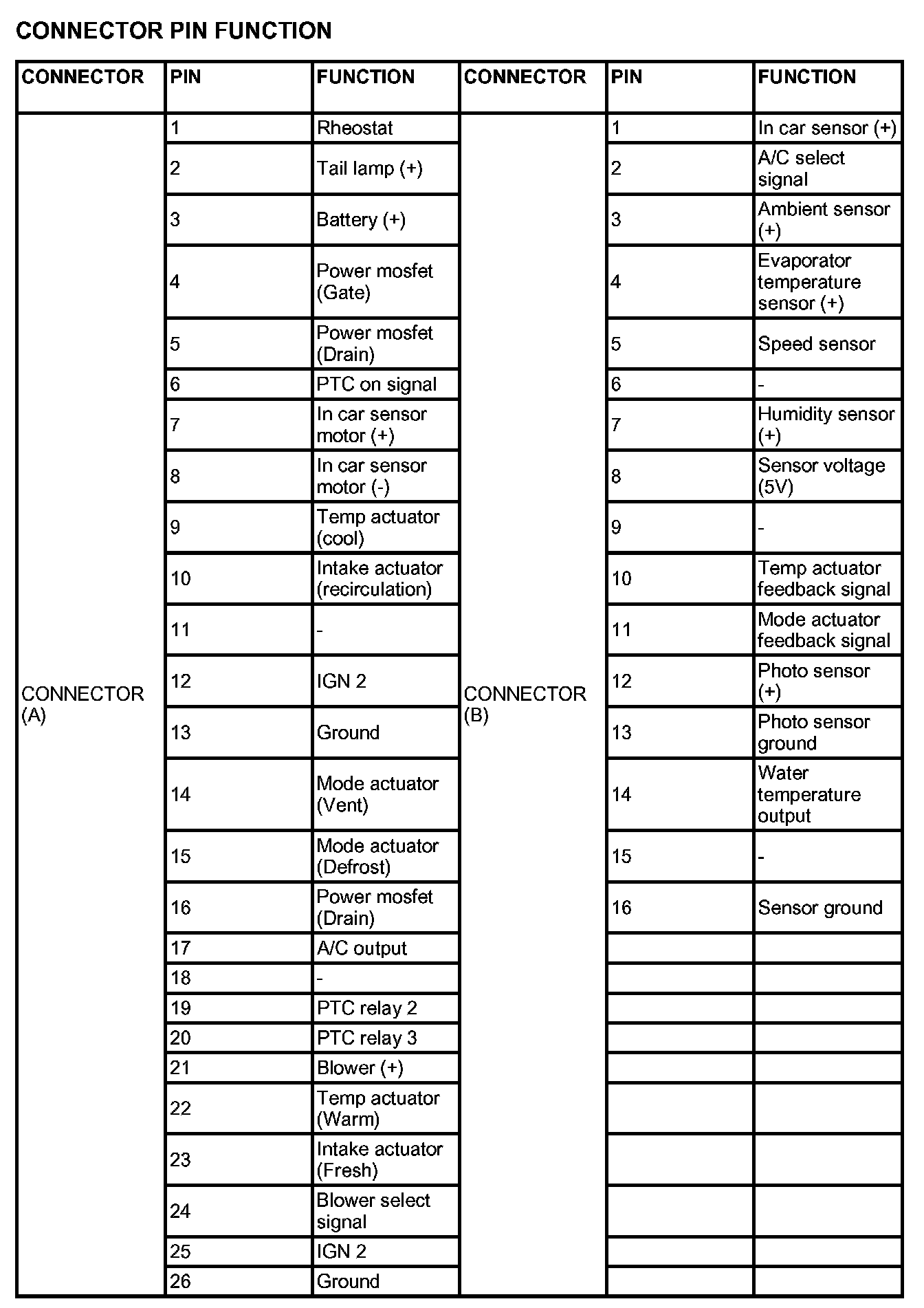

Connector Pin Function:
