Home >> Hyundai >> 2005 >> XG 350 V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Tightening Torque

Tightening Torque

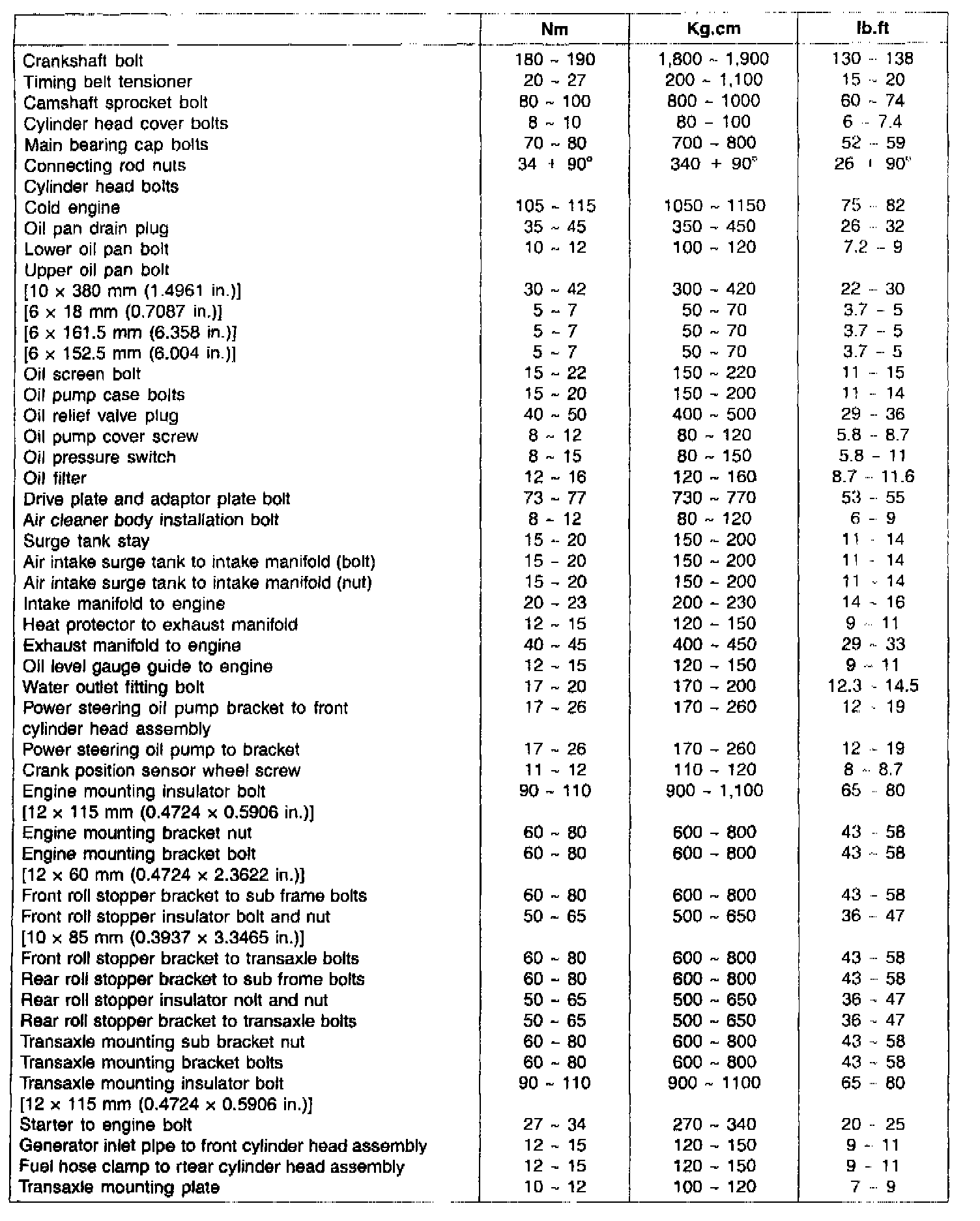

Tightening Torque Part 1:

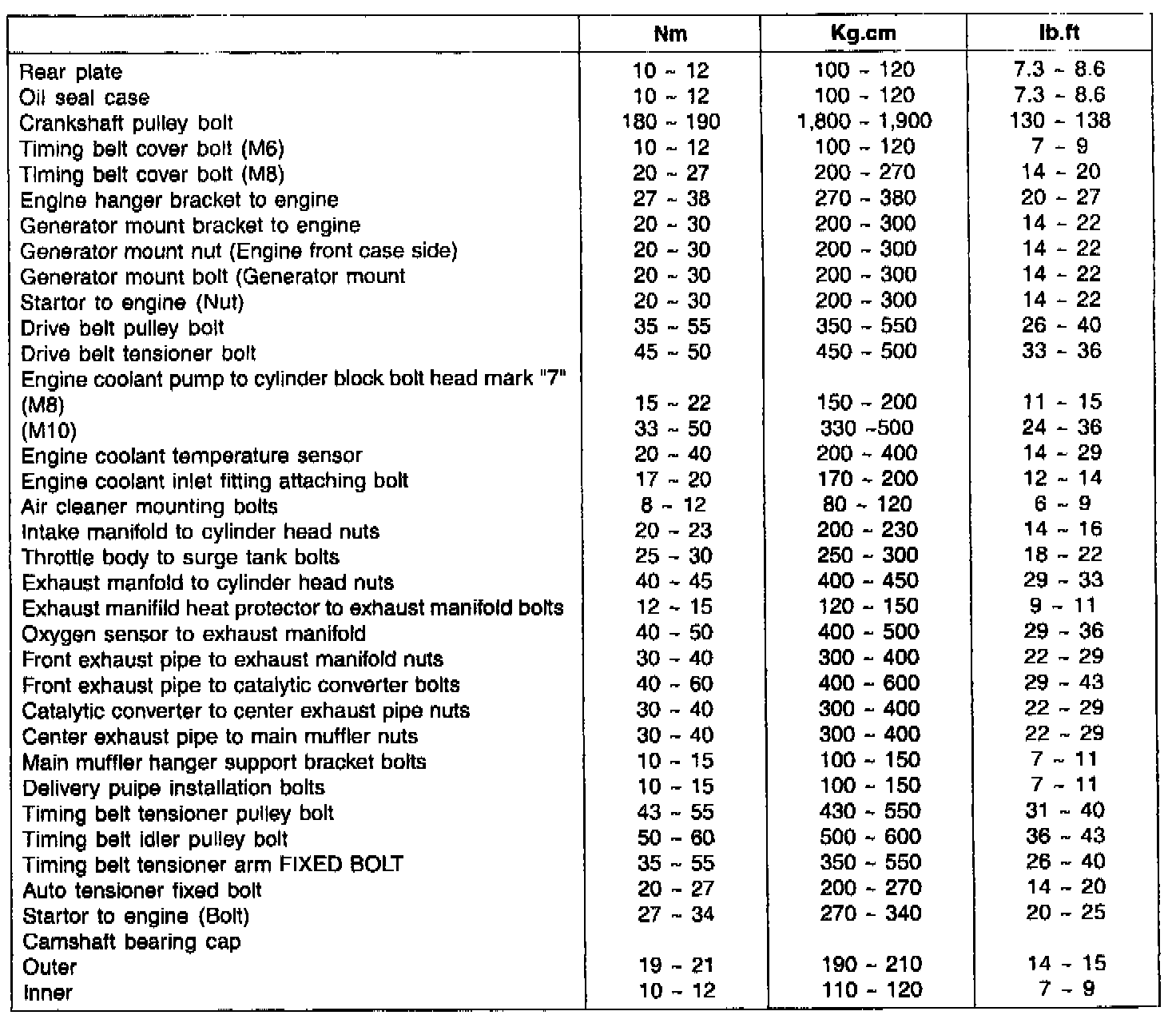

Tightening Torque Part 2:





Cylinder Head Tightening Sequence:





Intake Manifold:
