Air Bag Control Module
Air Bag Control Module
SRSCM Connector DAB+PAB+SAB+BPT:

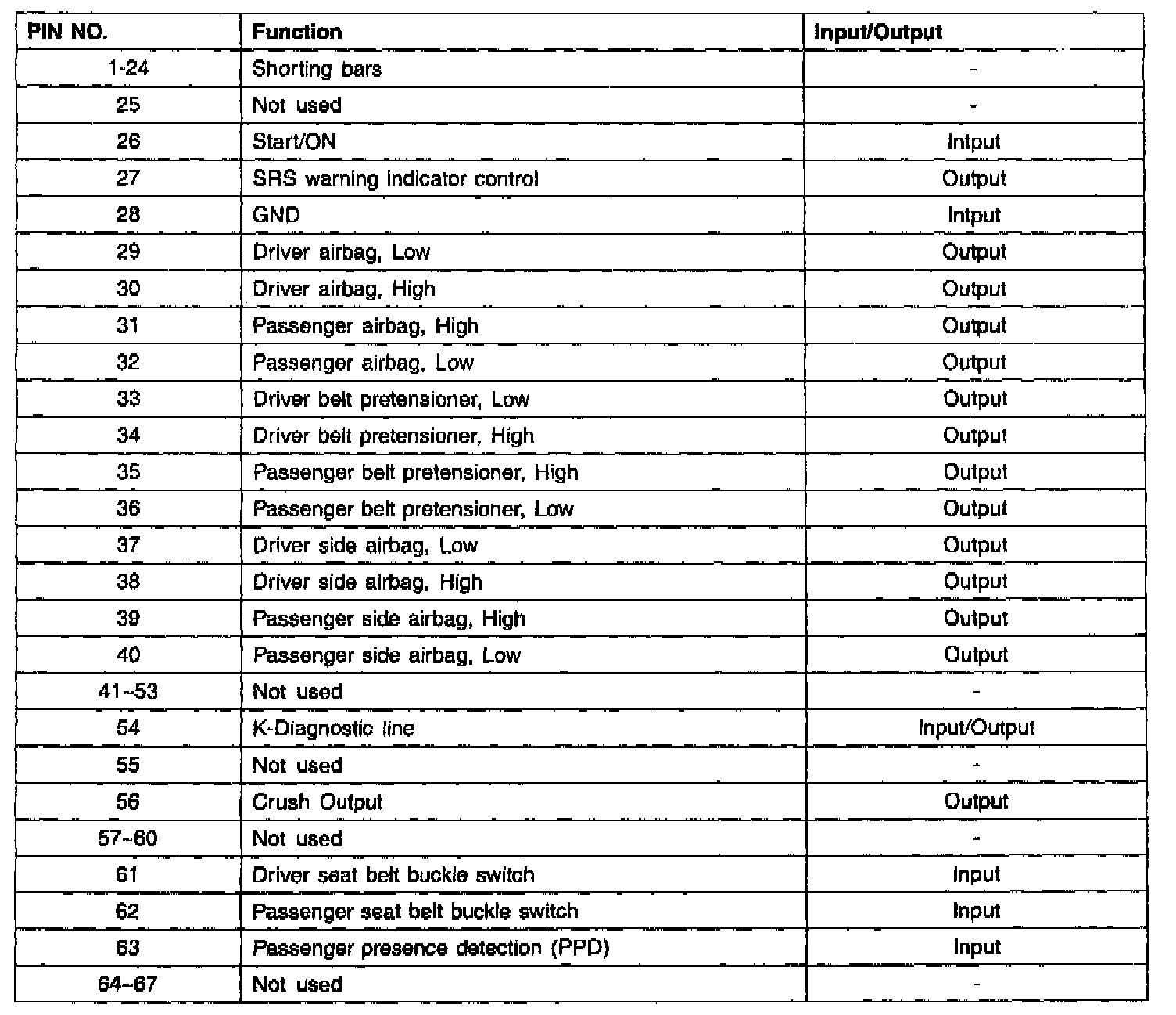

Pins 1-67:
Pins 68-75:
