Output Phase

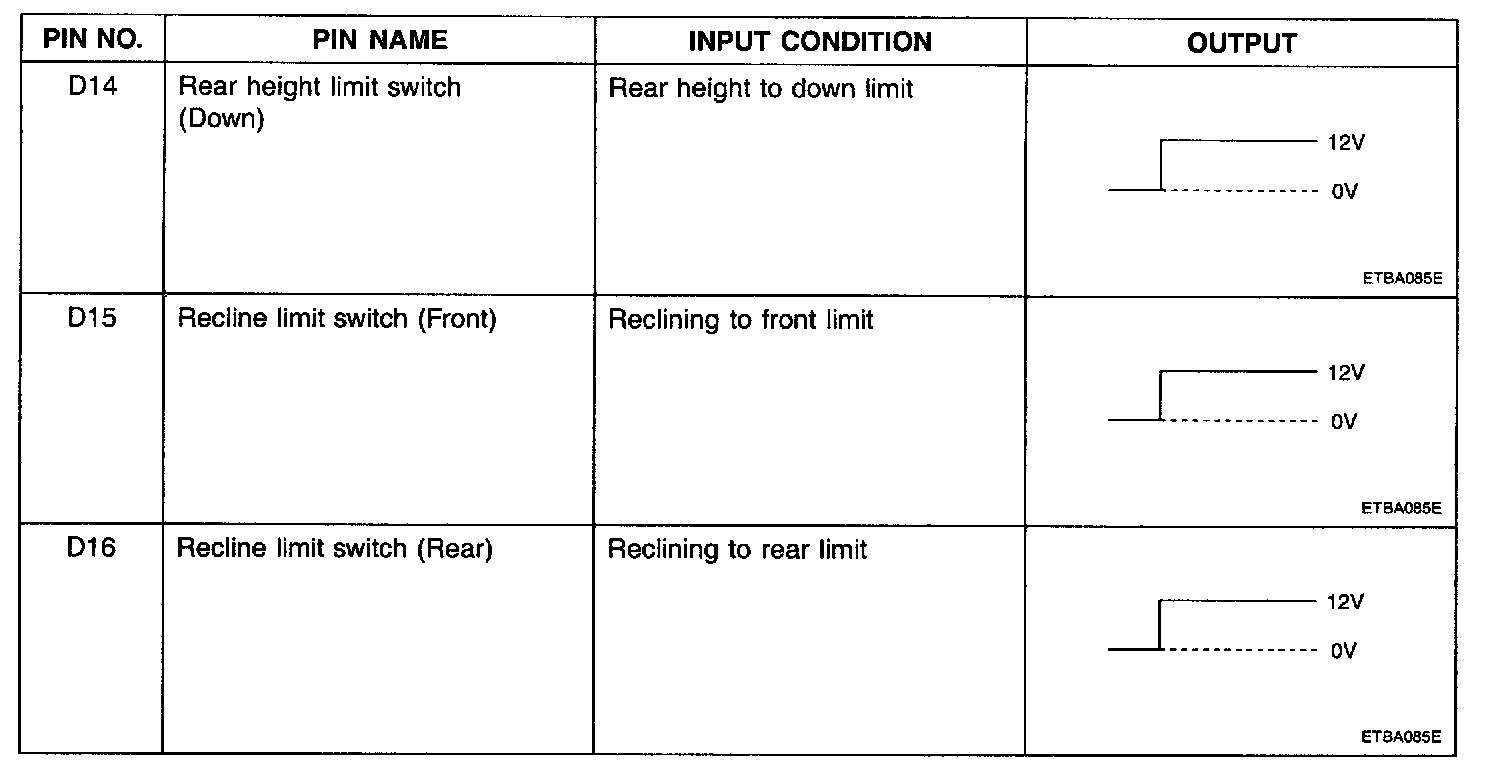

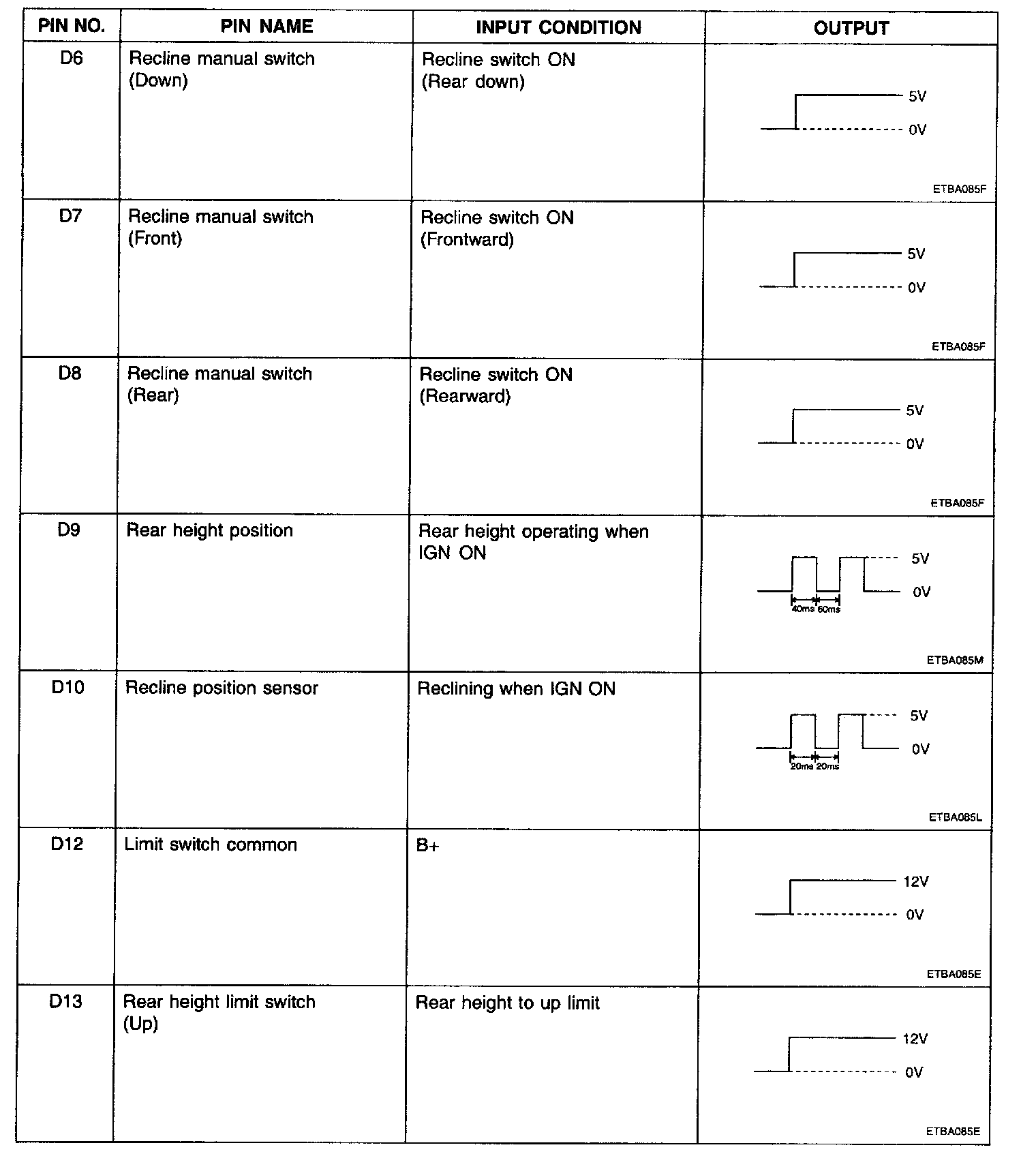

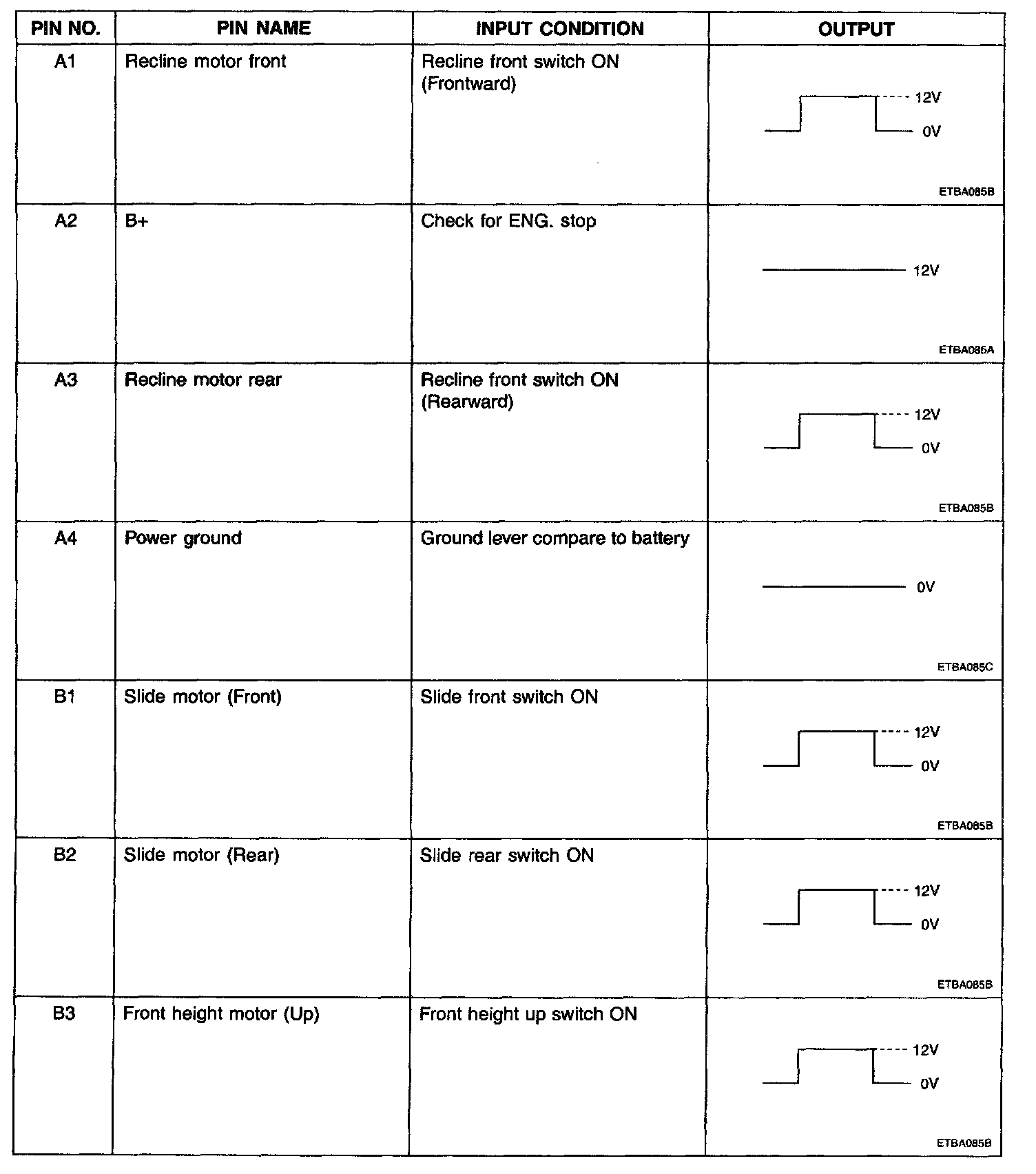

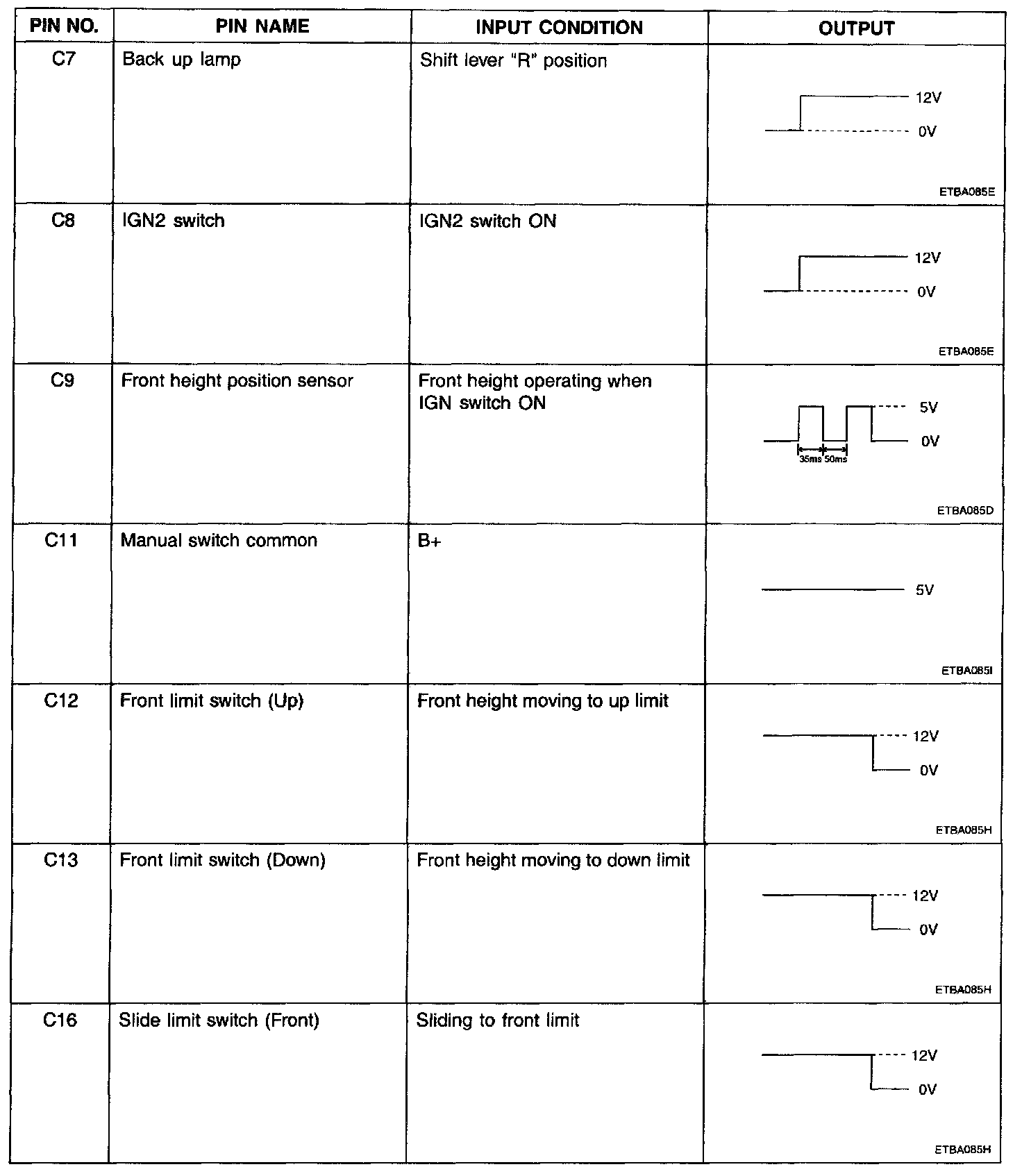

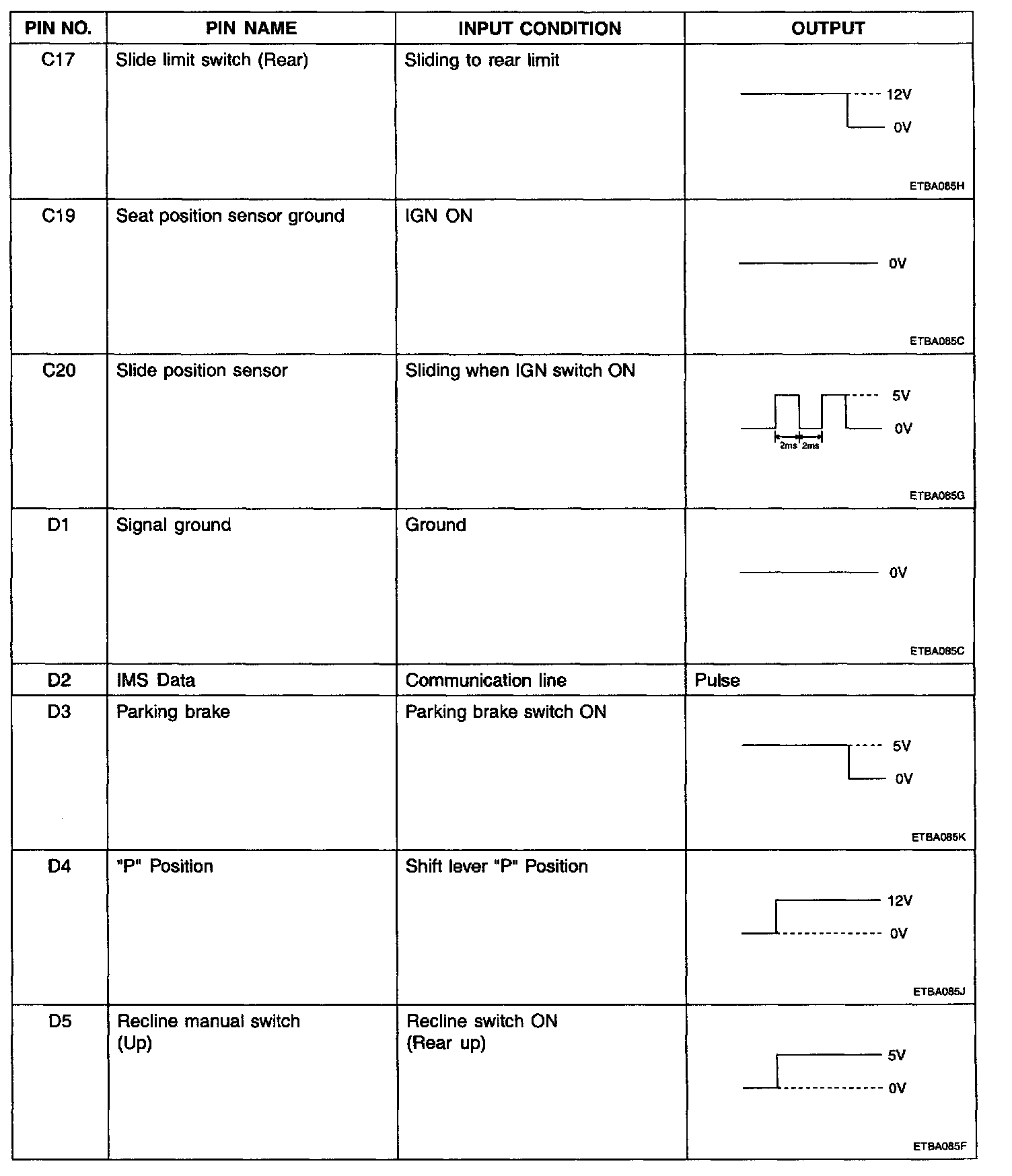

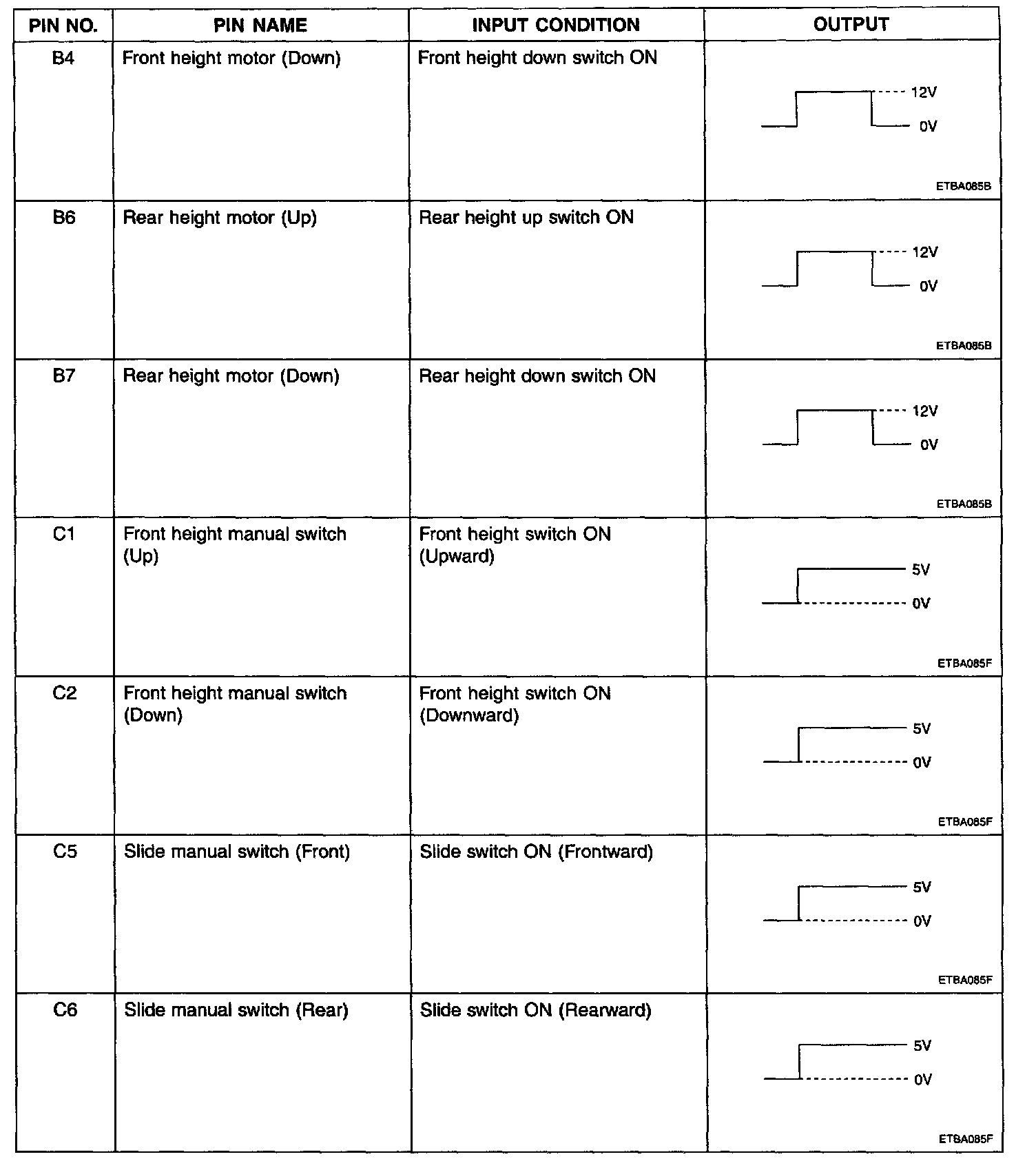

Output Pulse Part 1:




Output Pulse Part 2:




Output Pulse Part 3:




Output Pulse Part 4:




Output Pulse Part 5:




Output Pulse Part 6:
