Automatic Temperature Control
Automatic Temperature Control

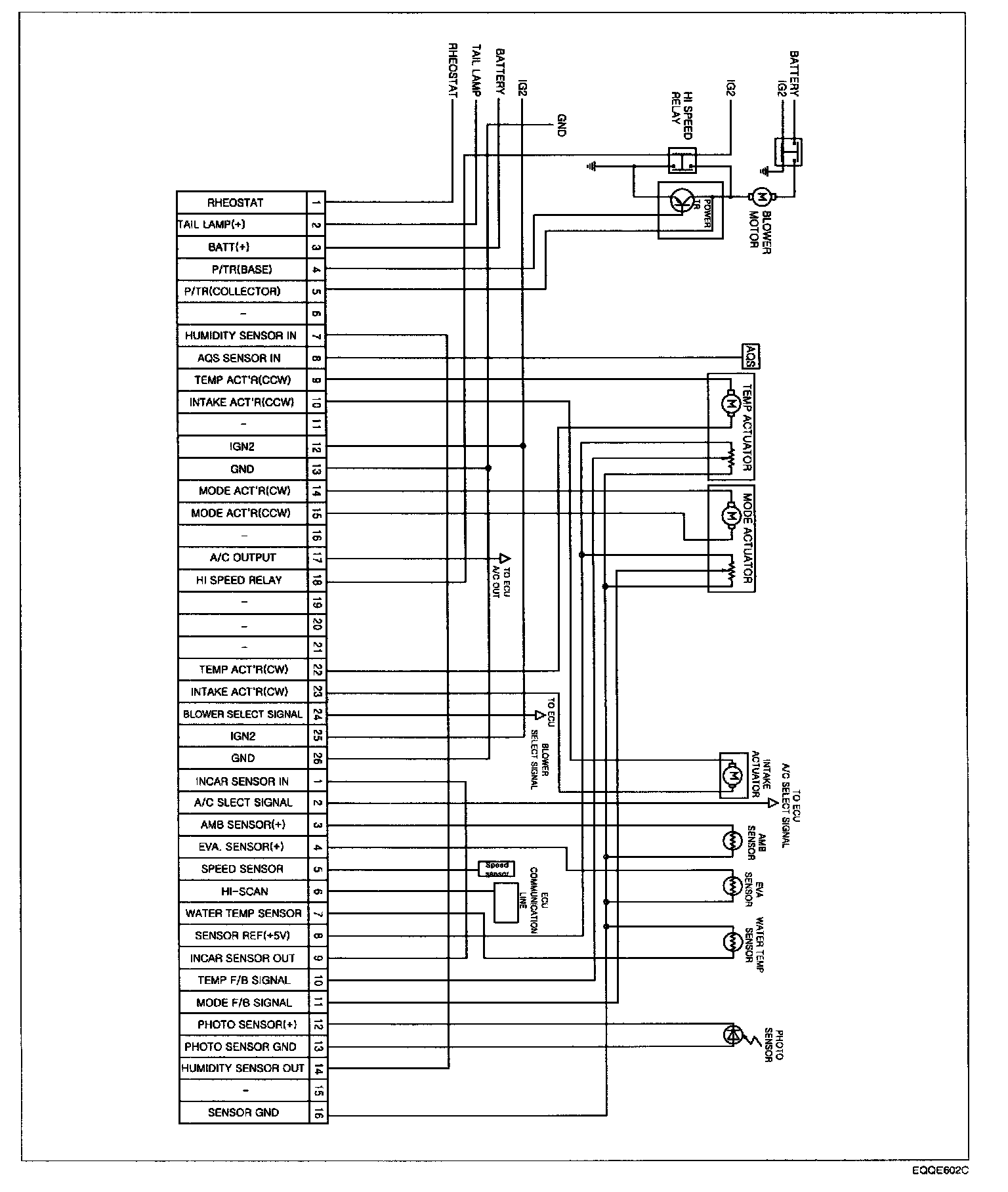

Blower And A/c Controls (Automatic) Circuit Diagram:
