Home >> Hyundai >> 2005 >> Tucson L4-2.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams >> Exploded Views >> Front

Front

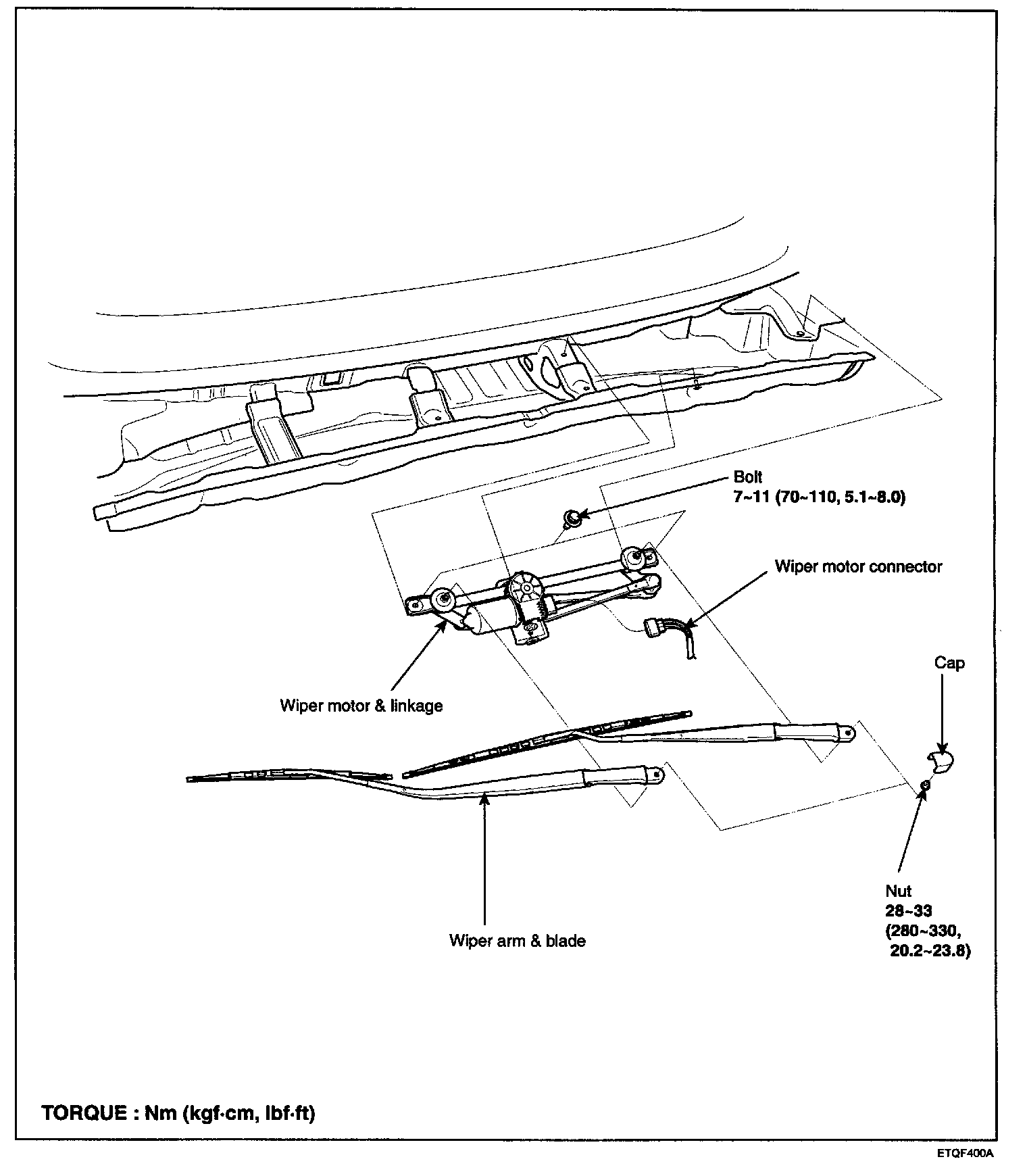

Front Wiper Motor Components:
