Air Bag Control Module
Air Bag Control Module

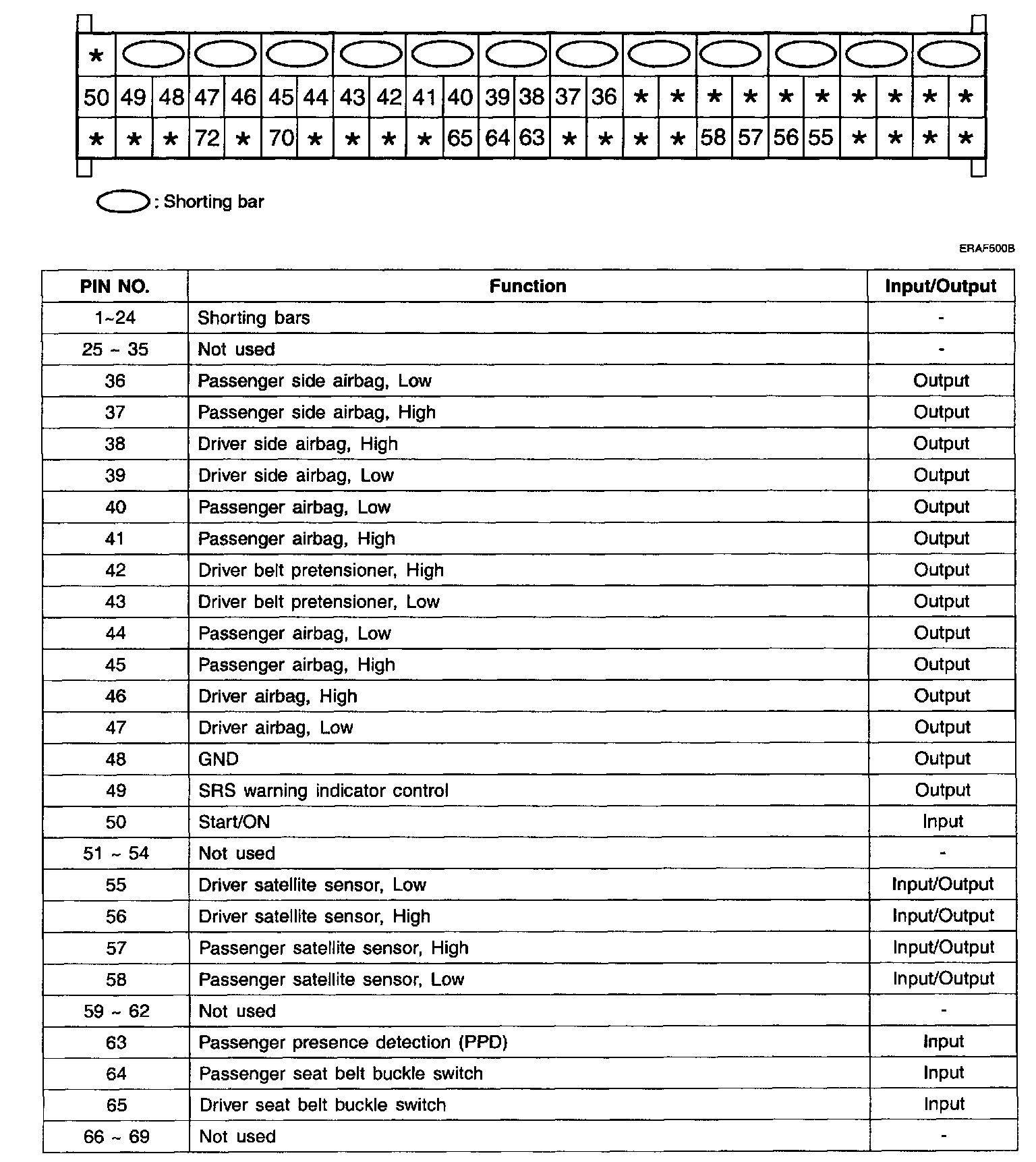

SRSCM Connector DAB+PAB+SAB+BPT Pin No. 1 - 69:
SRSCM Connector DAB+PAB+SAB+BPT Pin No. 70 - 75:
