Without TCU (Vehicle With Manual Transaxle)

ECM Terminal Layout

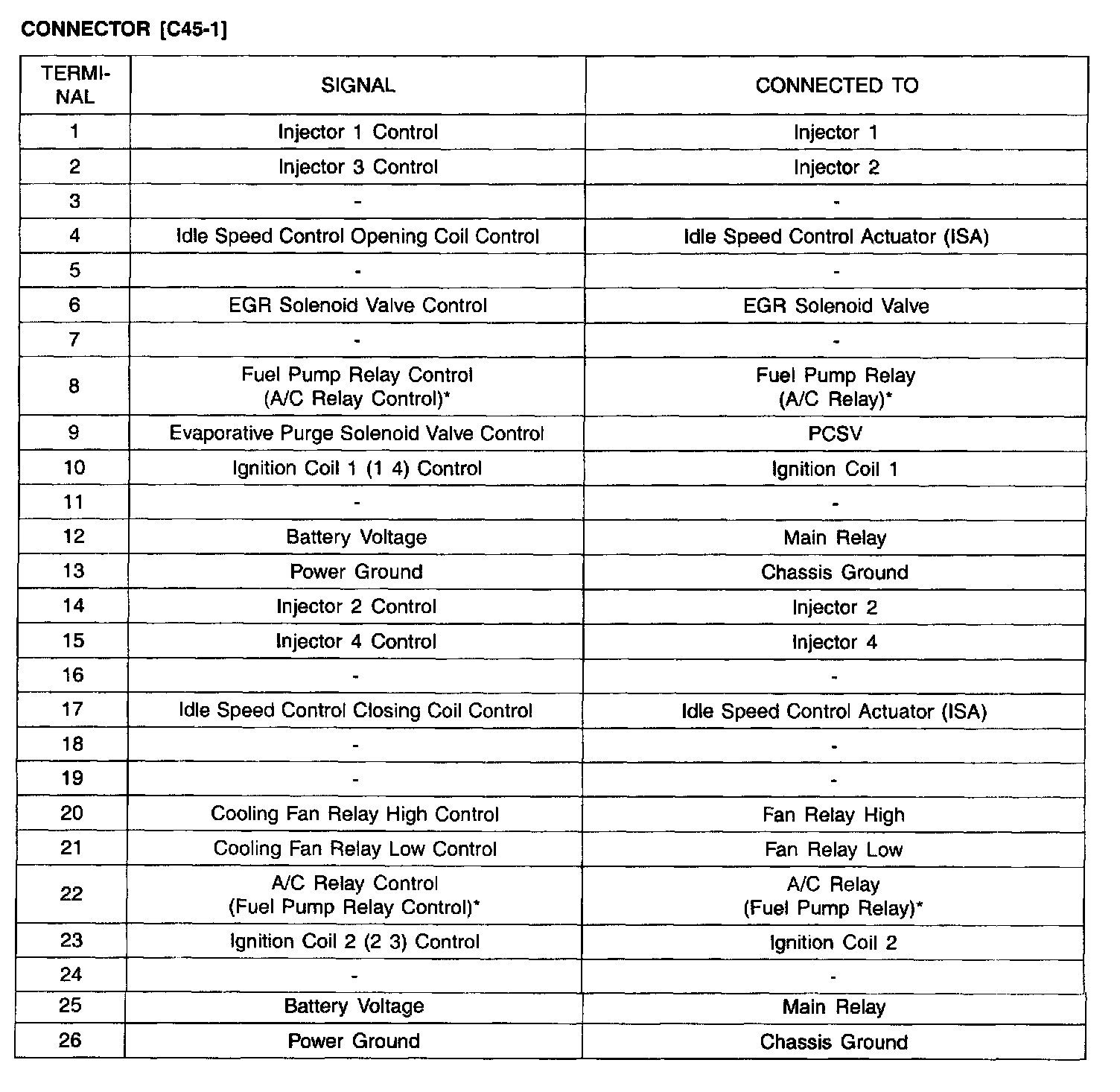

CONNECTOR (C45-1)

Terminal 1 - 26:




Terminal 25 - 26:

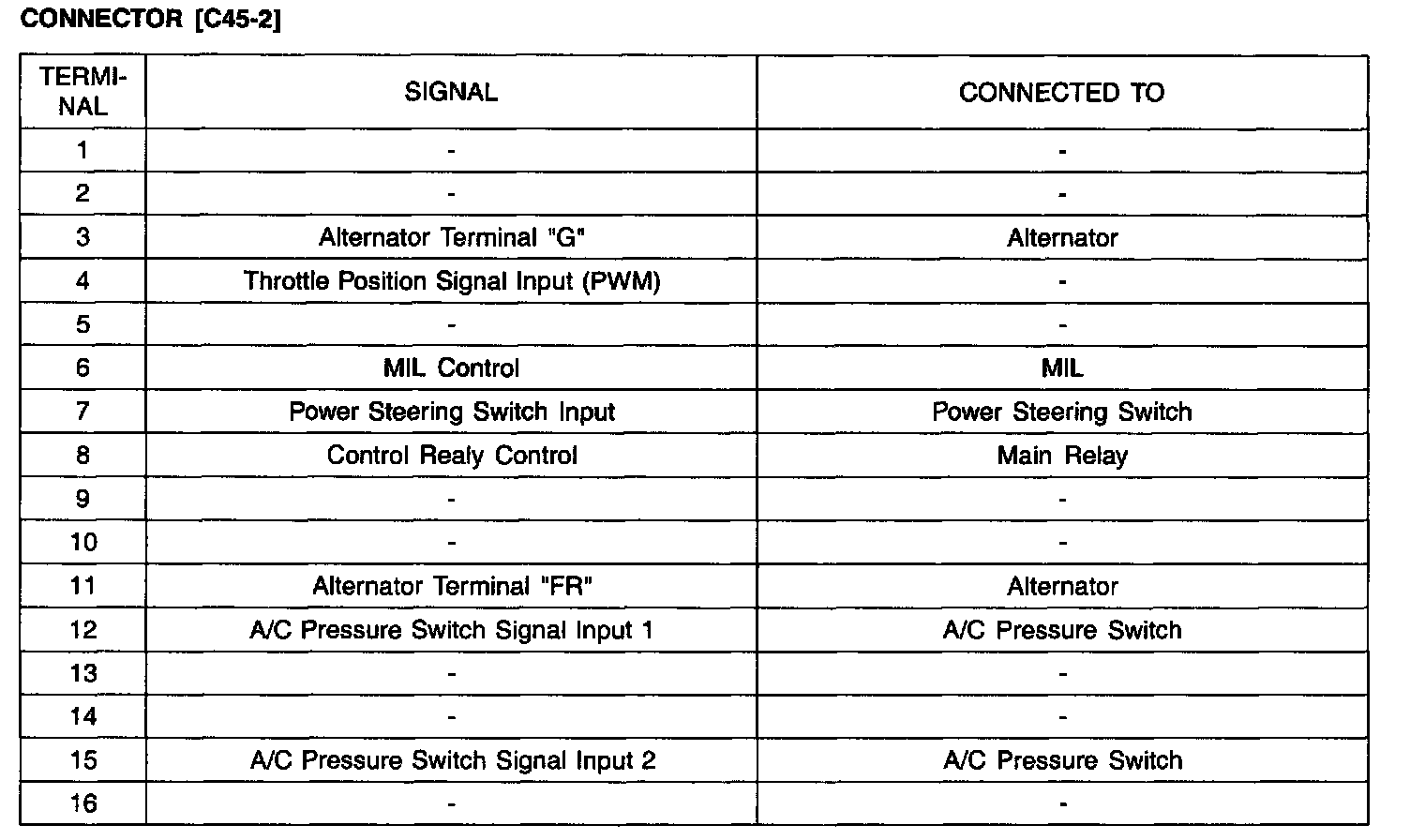

CONNECTOR (C45-2)

Terminal 1 - 16:






CONNECTOR (C45-3)

Terminal 1 - 12:

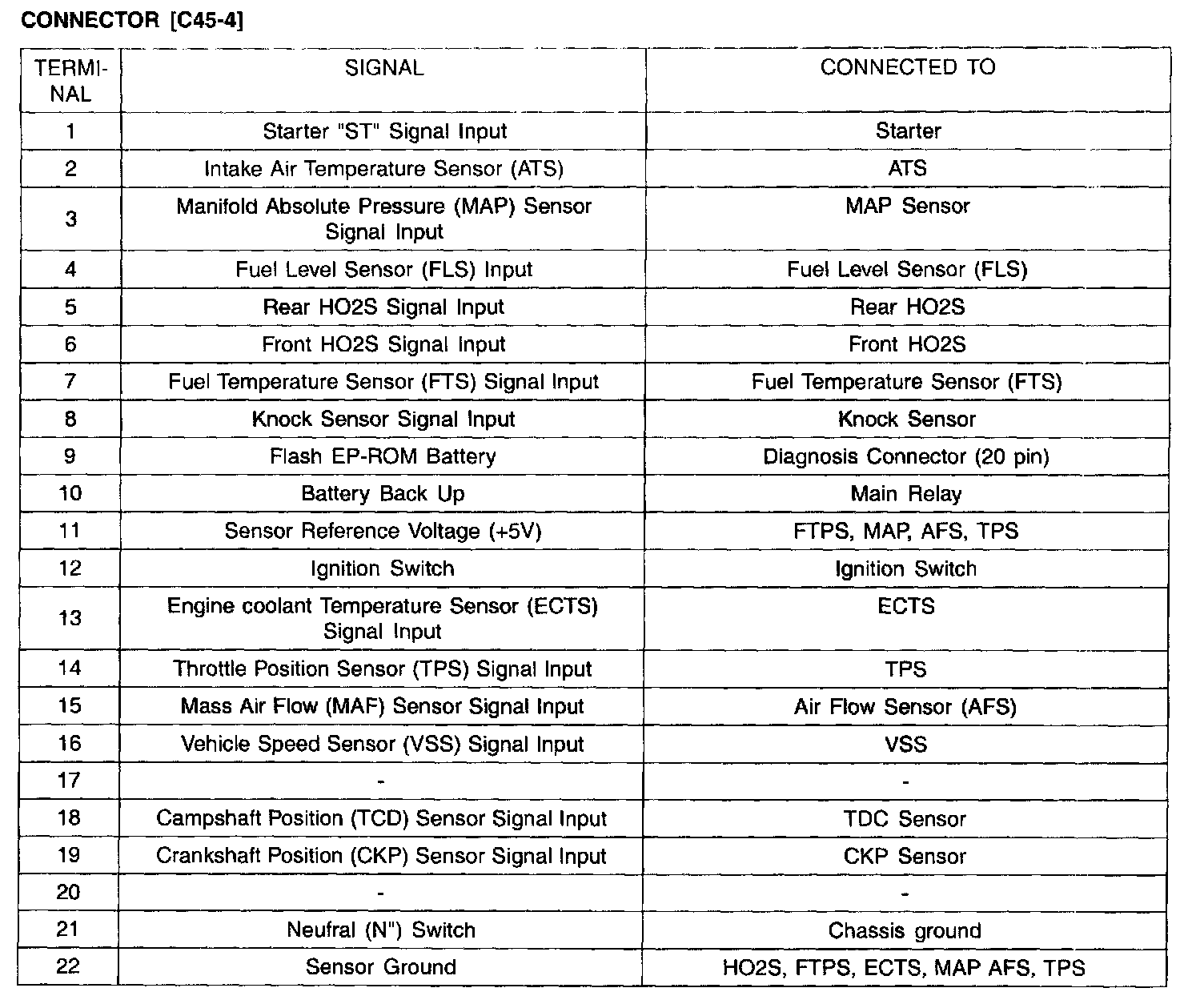

CONNECTOR (C45-4)

Terminal 1 - 22:
