Home >> Hyundai >> 2005 >> Sonata L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations

Relay Box: Locations

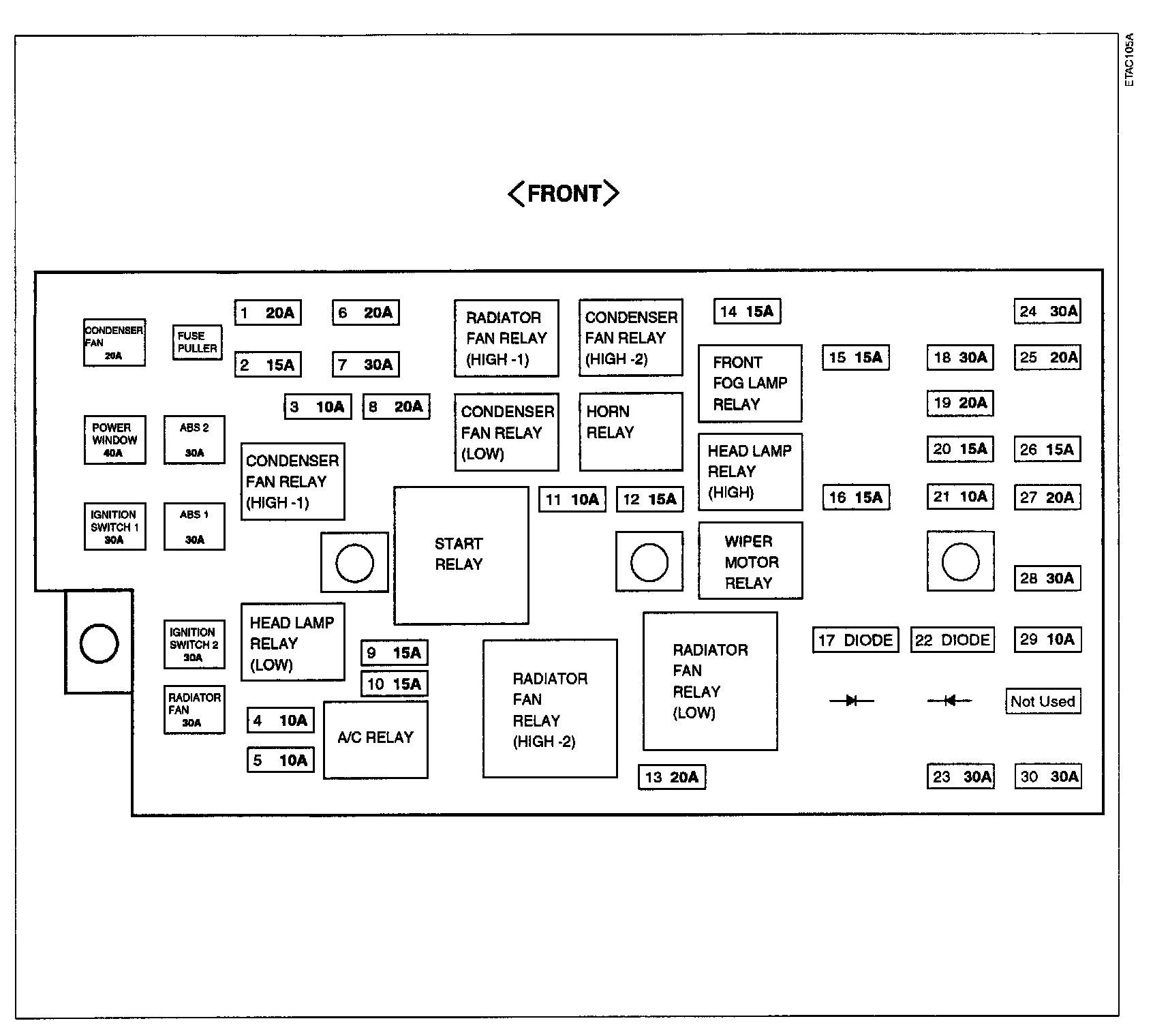

RELAY BOX(ENGINE COMPARTMENT):



Relay Box (Passenger Compartment):
