Home >> Hyundai >> 2005 >> Sonata GLS >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Generator >> Components >> DOHC

Charging System: Generator: Components: DOHC

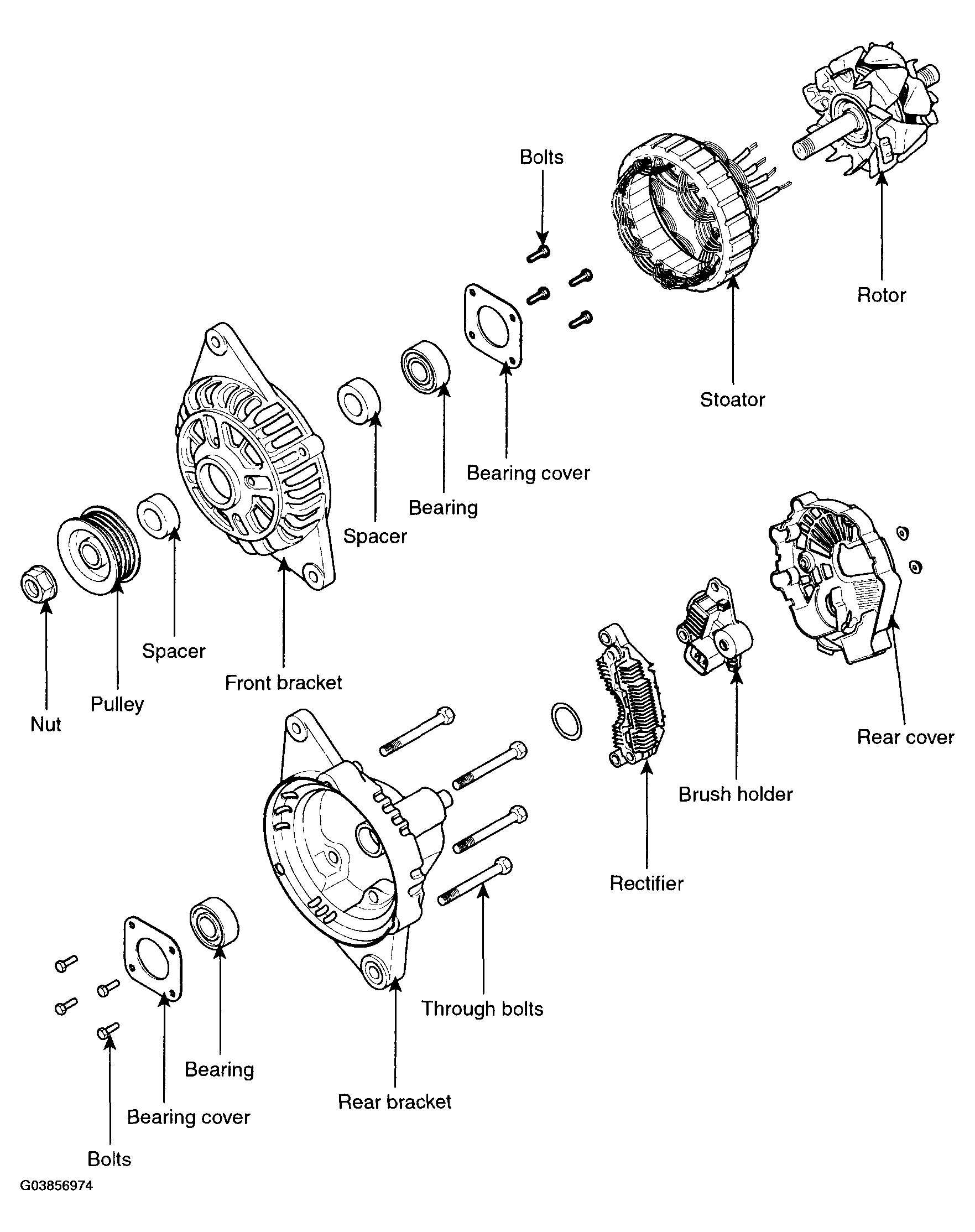

Fig 1: Identifying Generator Components (DOHC Engine)

G03856974

Courtesy of HYUNDAI MOTOR CO.
