Camshaft Position Sensor: Testing and Inspection

CAMSHAFT POSITION (TDC) SENSOR




The TDC Sensor is a Hall-effect sensor that detects the camshaft position on the compression stroke to the No.1 cylinder, converts it into a pulse signal, and inputs it to the ECM. The ECM then computes the fuel injection sequence, etc. based on the input signal.

Circuit Diagram And Output Feature (TDC):

CIRCUIT DIAGRAM

Harness Connector:

HARNESS CONNECTOR

TROUBLESHOOTING HINTS

If the TDC Sensor does not operate correctly-sequential injection is may not occur and the engine may stall or run irregularly at idle or fail to accelerate normally.

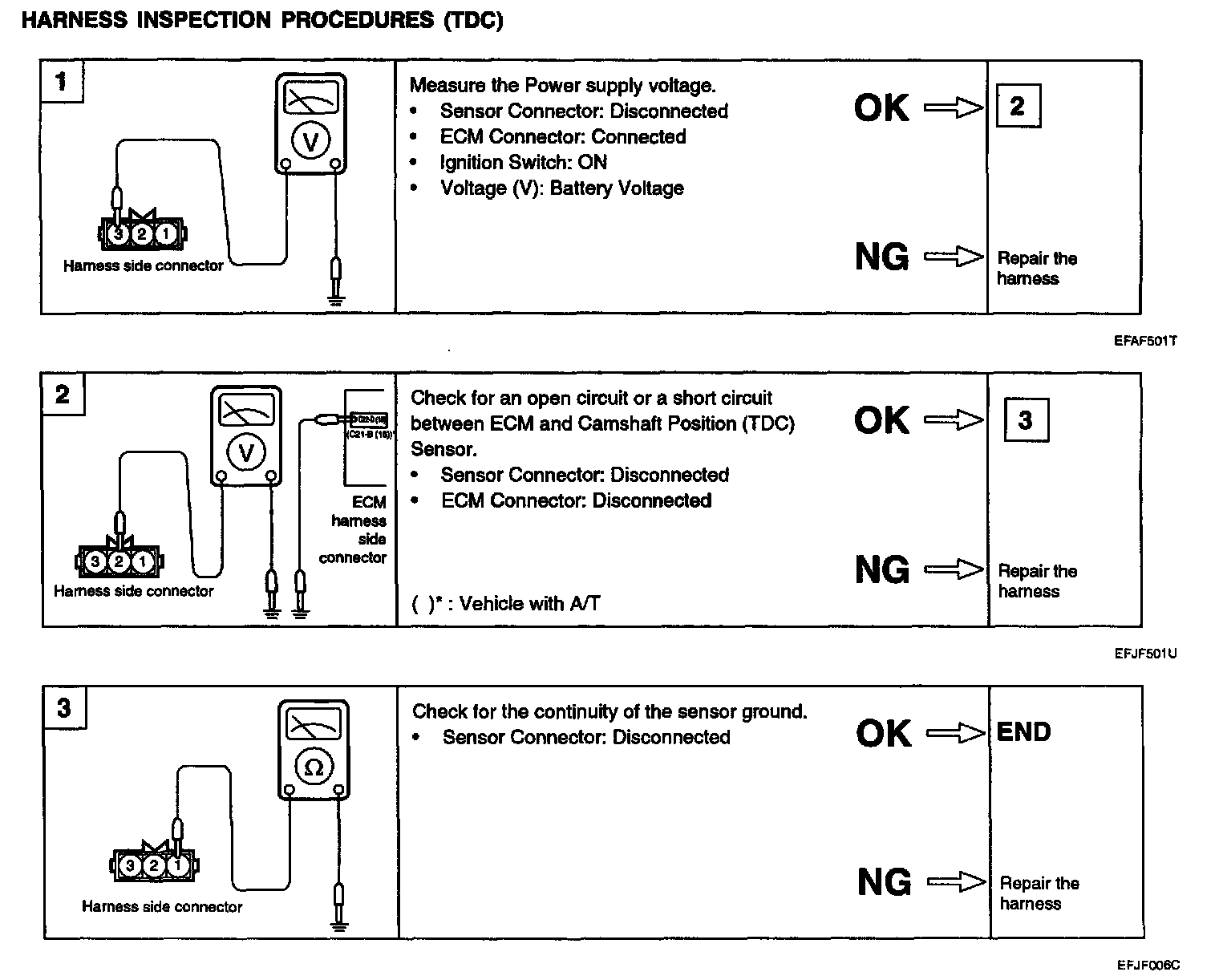

Harness Inspection Procedures (TDC):

HARNESS INSPECTION PROCEDURES (TDC)
