Ignition Coil: Testing and Inspection





IGNITION COIL
when the ignition power transistor is turned ON by a signal from the ECM, the ECM sends a signal to the ignition coil, then the primary current is shut off and a high voltage is induced in the secondary coil.

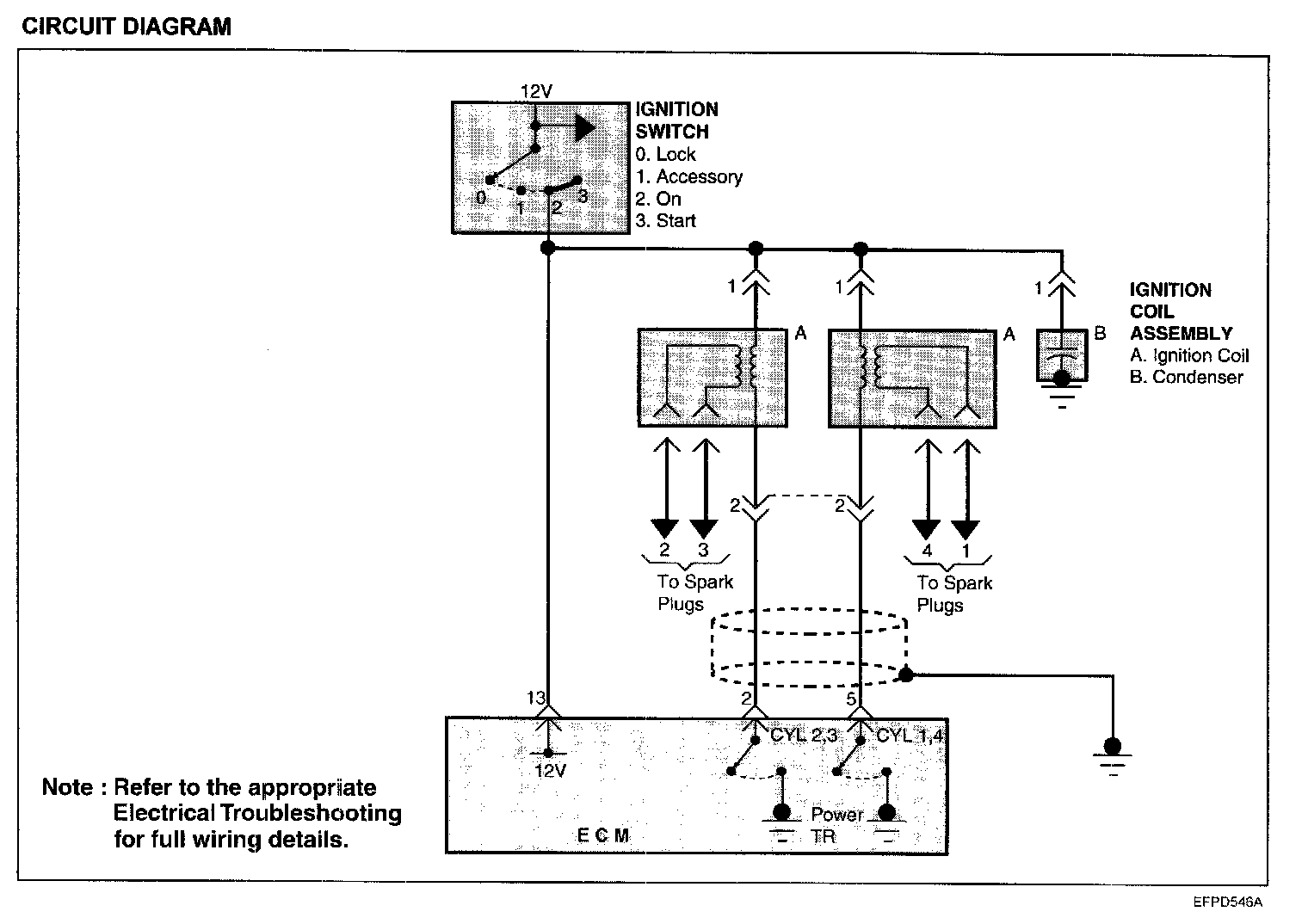

Circuit Diagram:

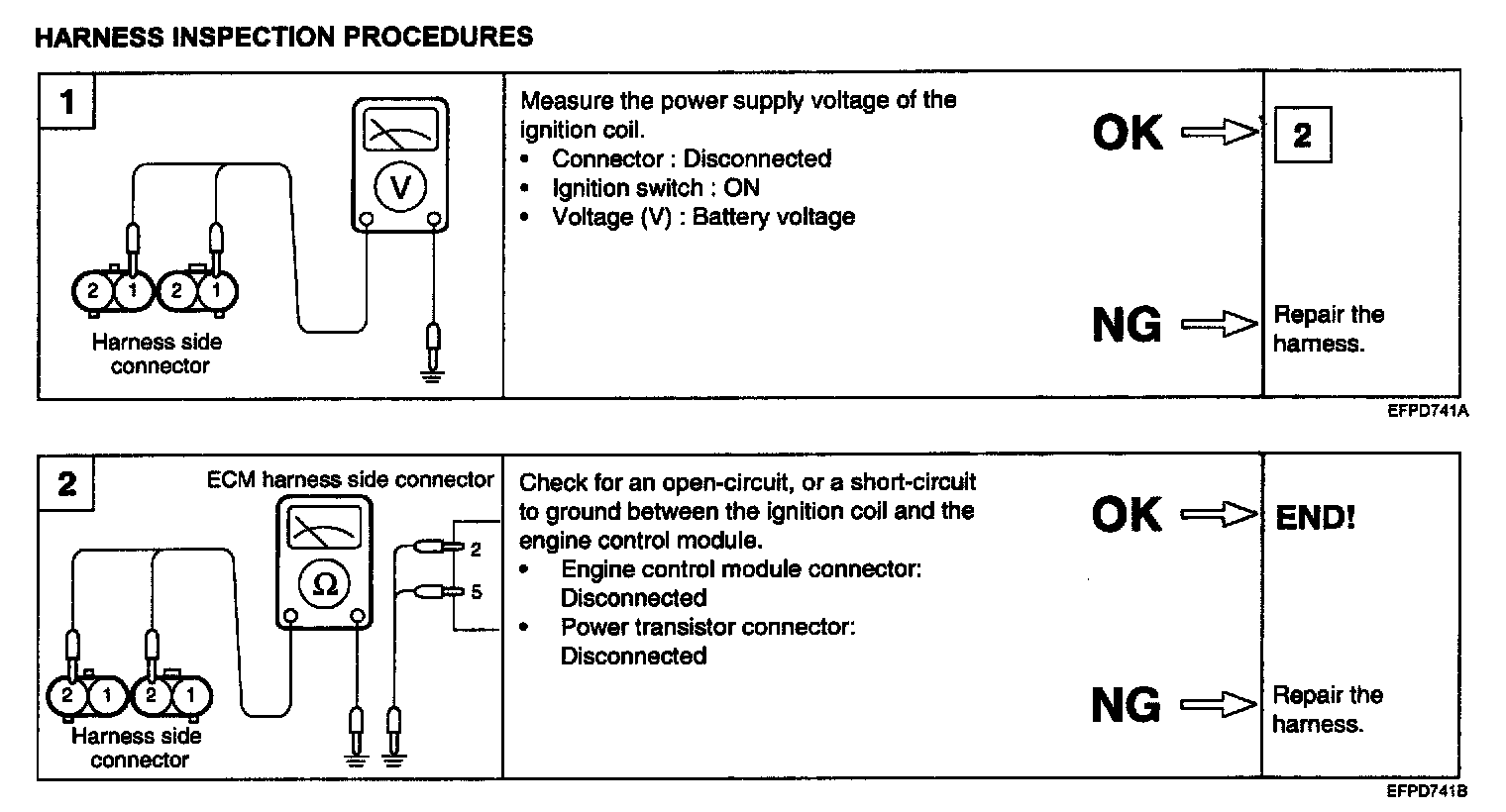

Harness Inspection Procedures:
