Home >> Hyundai >> 2004 >> XG350 Base >> Repair and Diagnosis >> Engine Performance >> System >> Emissions Control System >> Crankcase Emission Control System >> Positive Crankcase Ventilation (PCV) Valve >> Components

Positive Crankcase Ventilation (PCV) Valve: Components

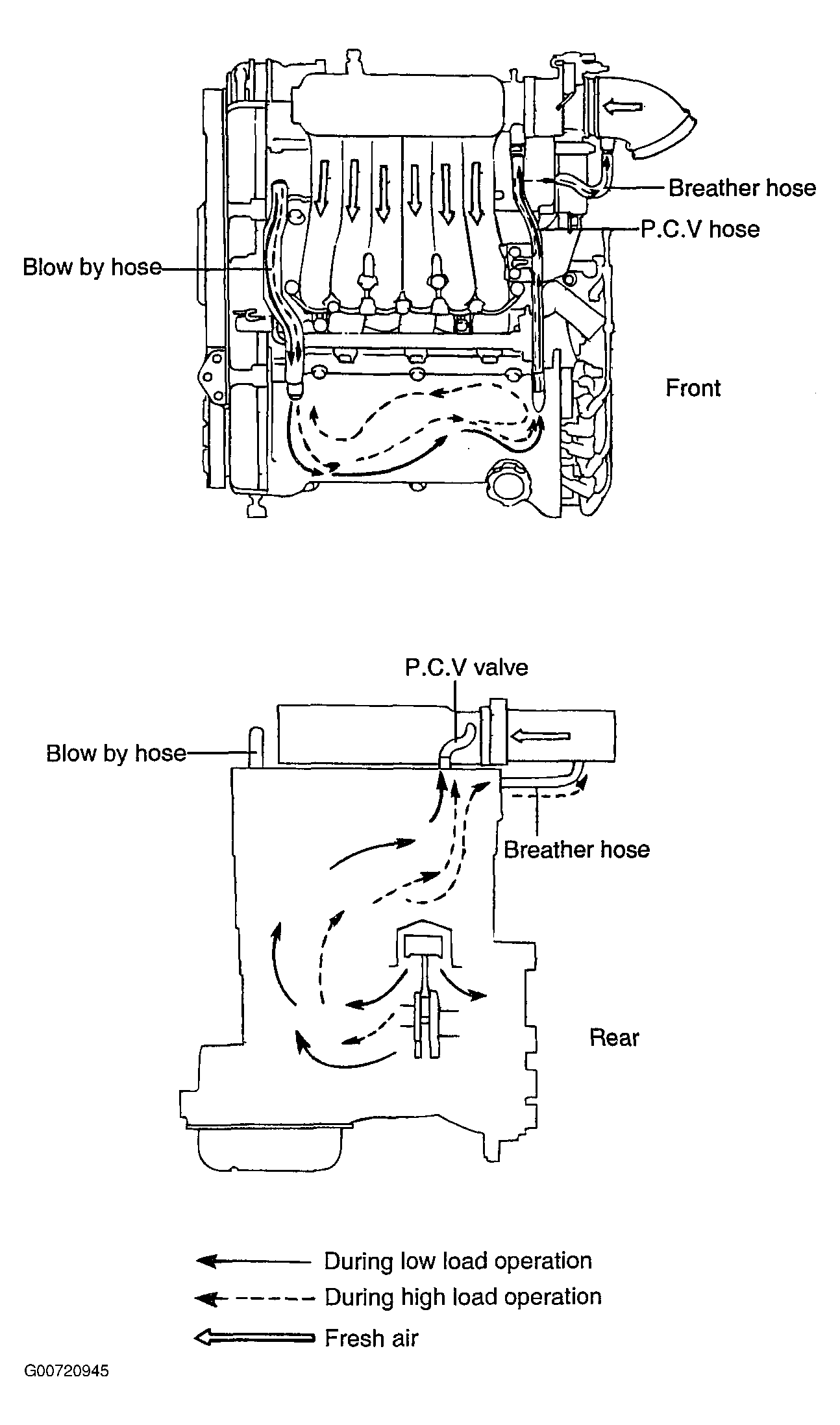

Fig 1: Identifying Positive Crankcase Ventilation (PCV) Valve Components

G00720945

Courtesy of HYUNDAI MOTOR CO.
