Home >> Hyundai >> 2004 >> XG 350 V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Tightening Torque

Tightening Torque

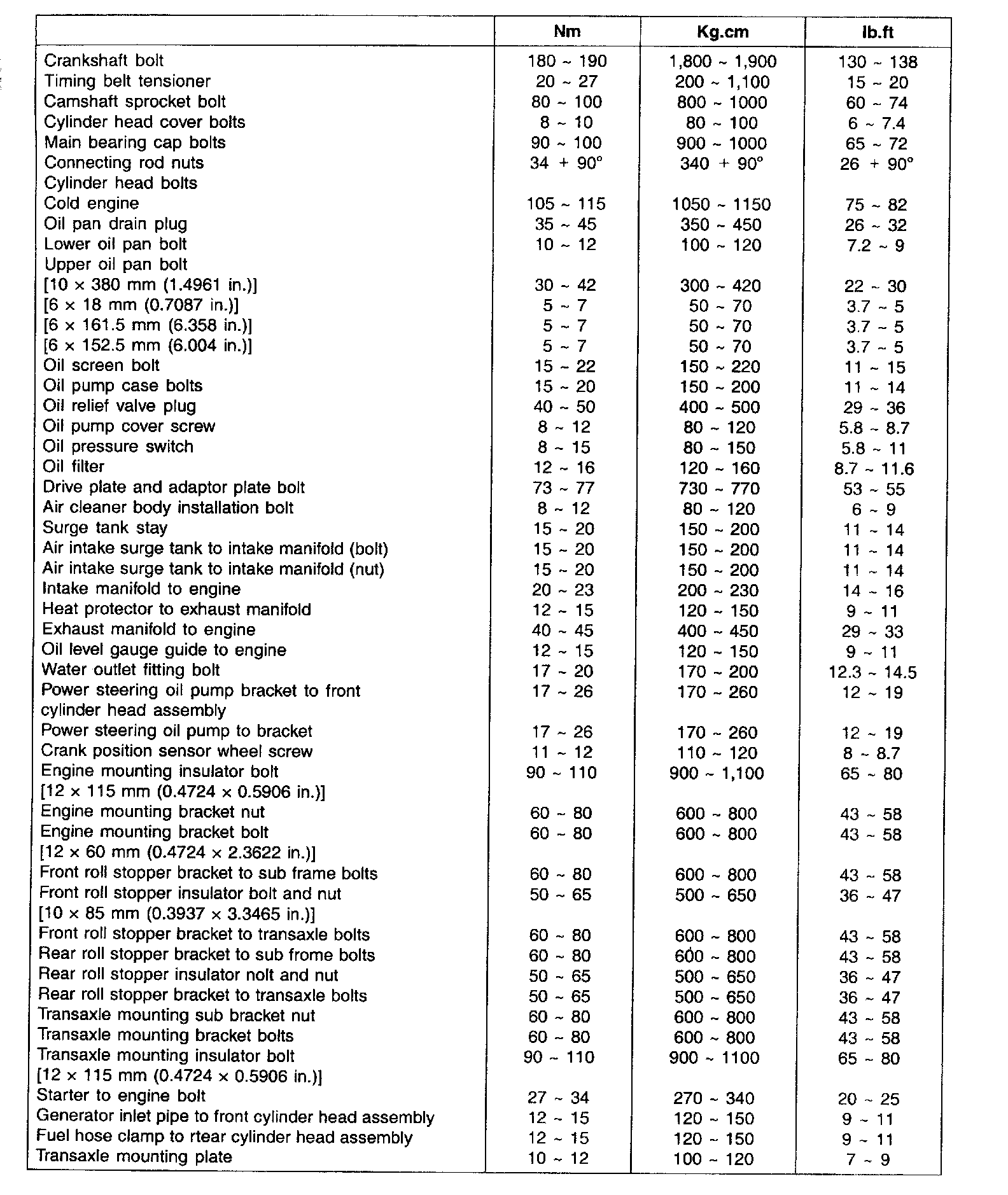

TIGHTENING TORQUE Part 1:

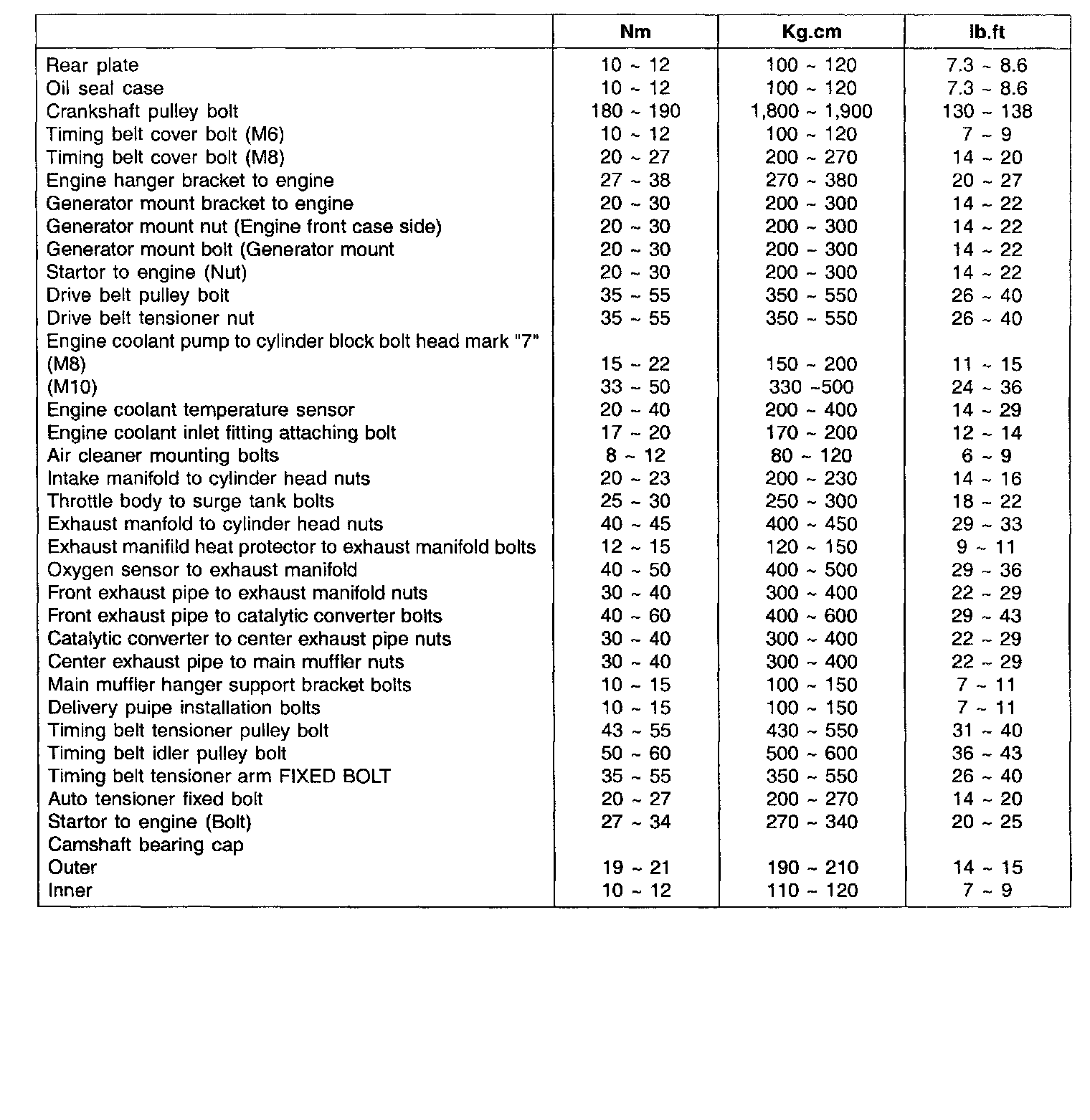

TIGHTENING TORQUE Part 2:





Cylinder Head Tightening Sequence:





Intake Manifold:





Camshaft Bearing Caps:
