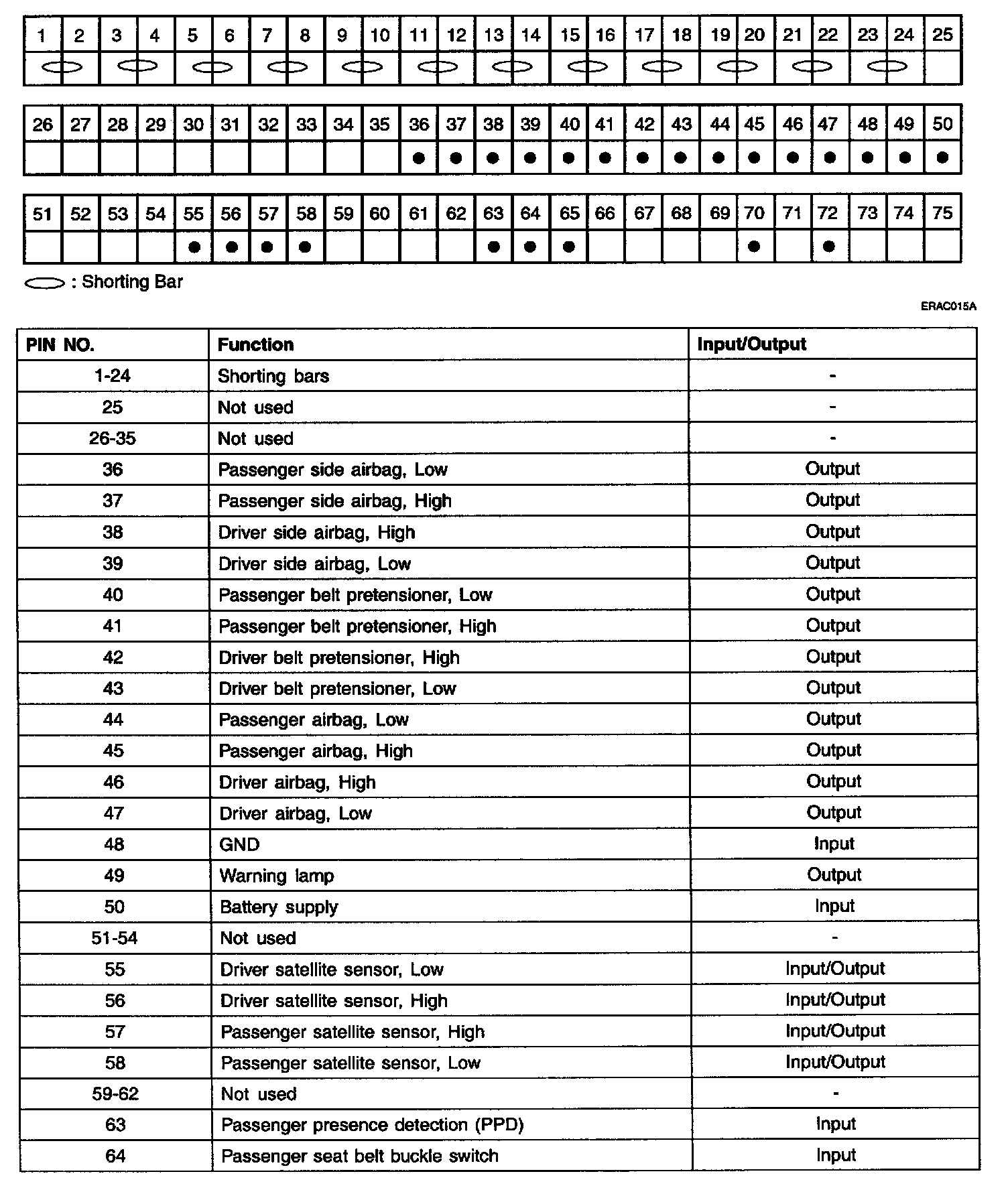

Air Bag Control Module
Air Bag Control Module
DAB+PAB+SAB+BPT - Pin No 1-64:
DAB+PAB+SAB+BPT - Pin No 65-72:
