Home >> Hyundai >> 2004 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Air Bag

Air Bag

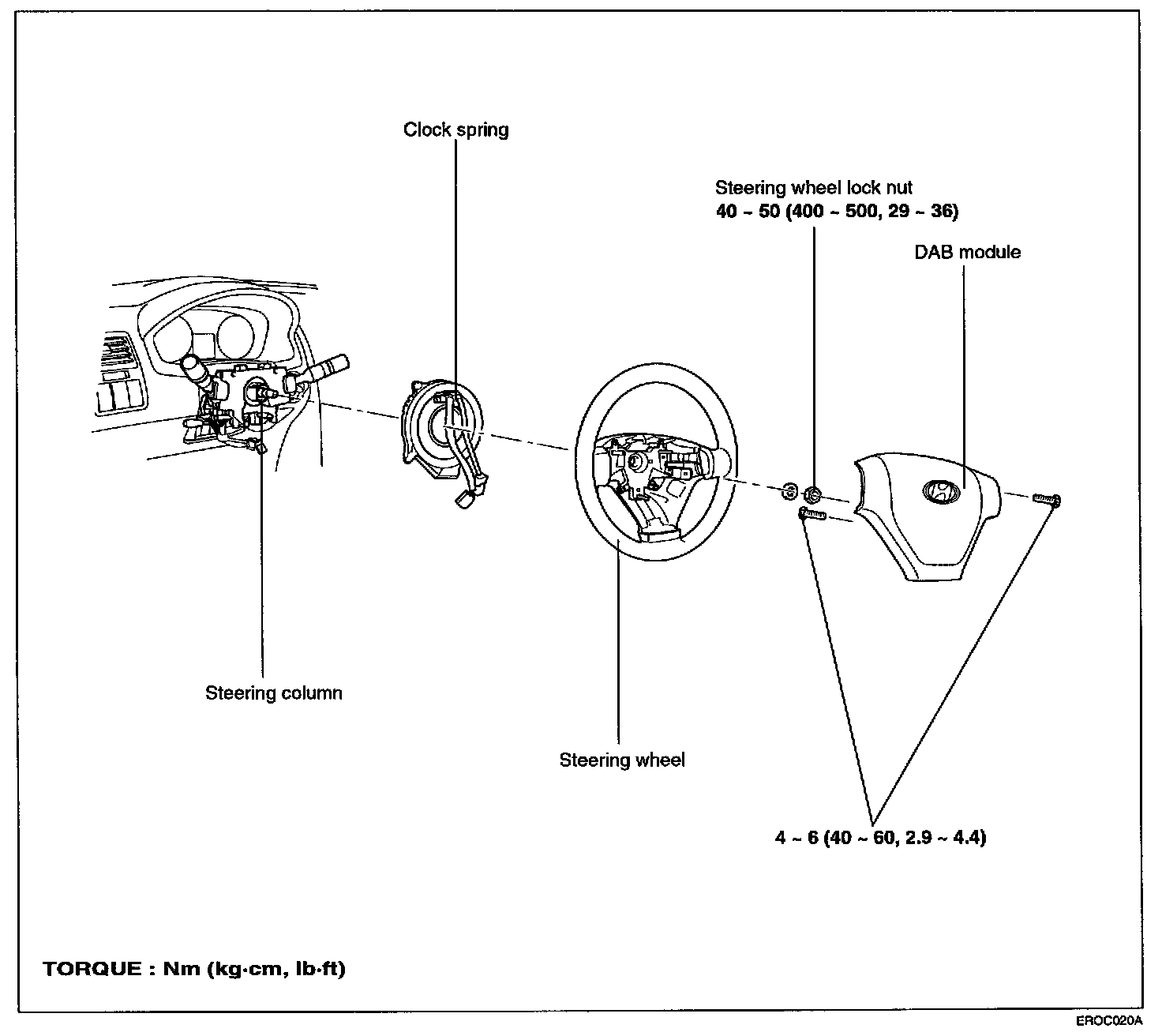

Air Bag Module (Drive Side) And Clock Spring:
