Hyundai
>>
2004
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Locations
>>
Connector Locations
Connector Locations

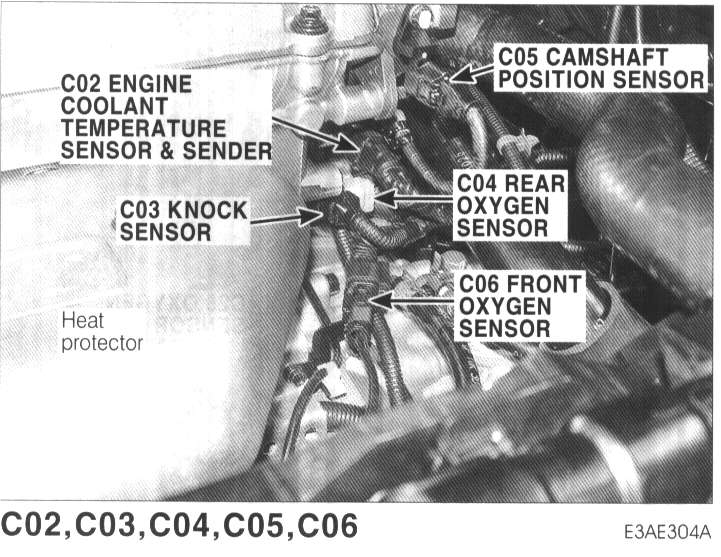

C02, C03, C04, C05, C06:

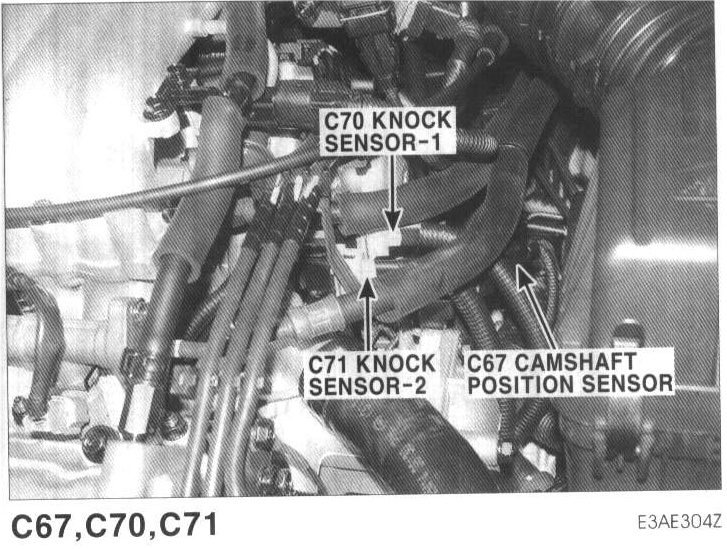

C67, C70, C71:
