Air Bag Control Module
Air Bag Control Module

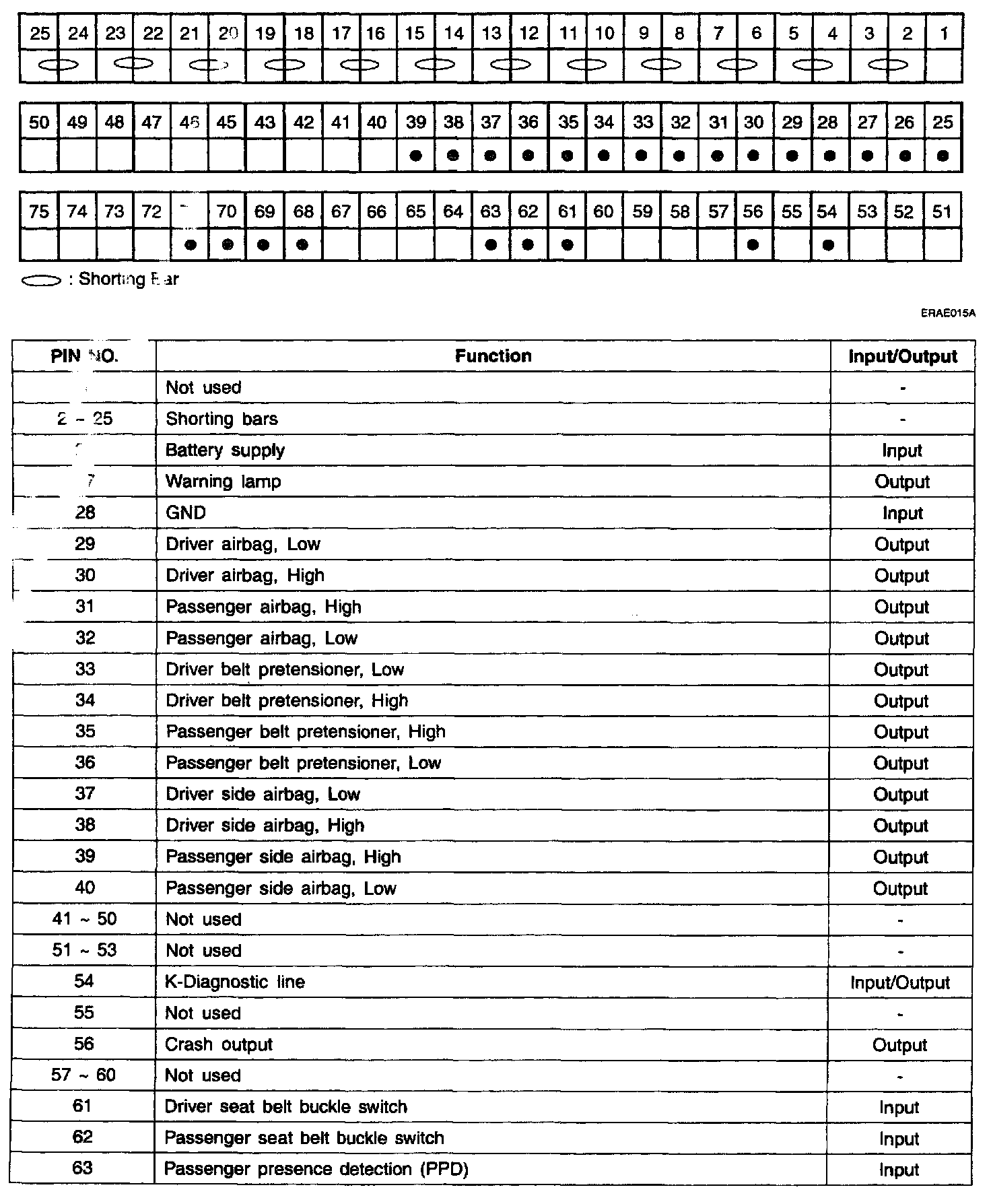

SRSCM Connector DAB+PAB+SAB+BPT Pin No. 1 - 63:
SRSCM Connector DAB+PAB+SAB+BPT Pin No. 64-75:
