Home >> Hyundai >> 2004 >> Santa Fe L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heater Core Case >> FATC (Full Automatic Temperature Control)

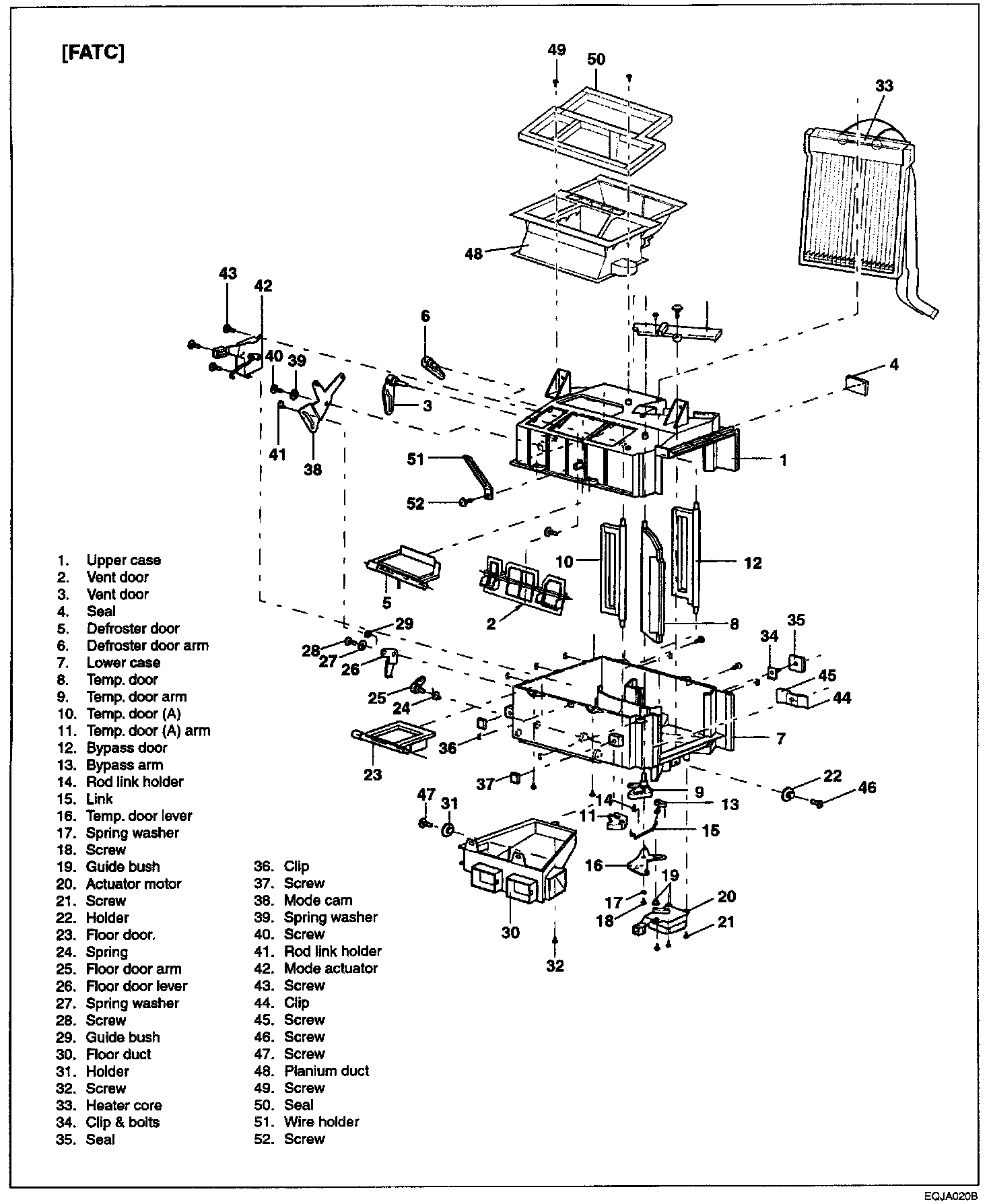

FATC (Full Automatic Temperature Control)
