LEMON Manuals
: Even more car manuals for everyone
Home
>>
Hyundai
>>
2004
>>
Elantra GLS, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Troubleshooting
>>
Diagnostic Trouble Code Chart
Diagnostic Trouble Code Chart
Inspect according to the inspection chart that is appropriate for the malfunction code.

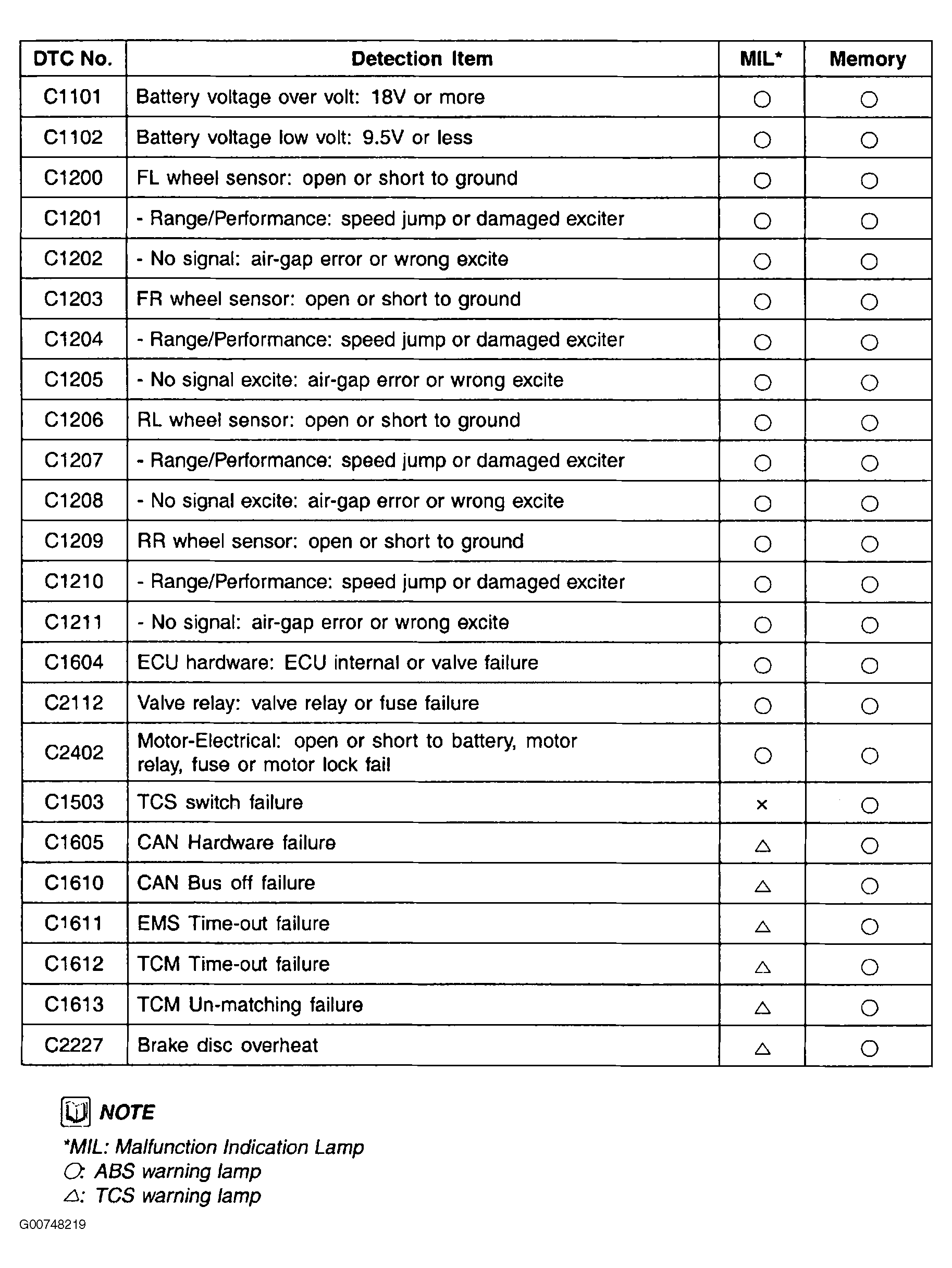

Fig 1: Diagnostic Trouble Code Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
