Camshaft Position Sensor: Testing and Inspection




CAMSHAFT POSITION SENSOR
The camshaft position sensor (CMP Sensor) senses the TDC point of No.1 cylinder on its compression stroke. Its signal is fed to the ECM to be used to determine the sequence of fuel injection


Circuit Diagram:






Using Voltmeter:

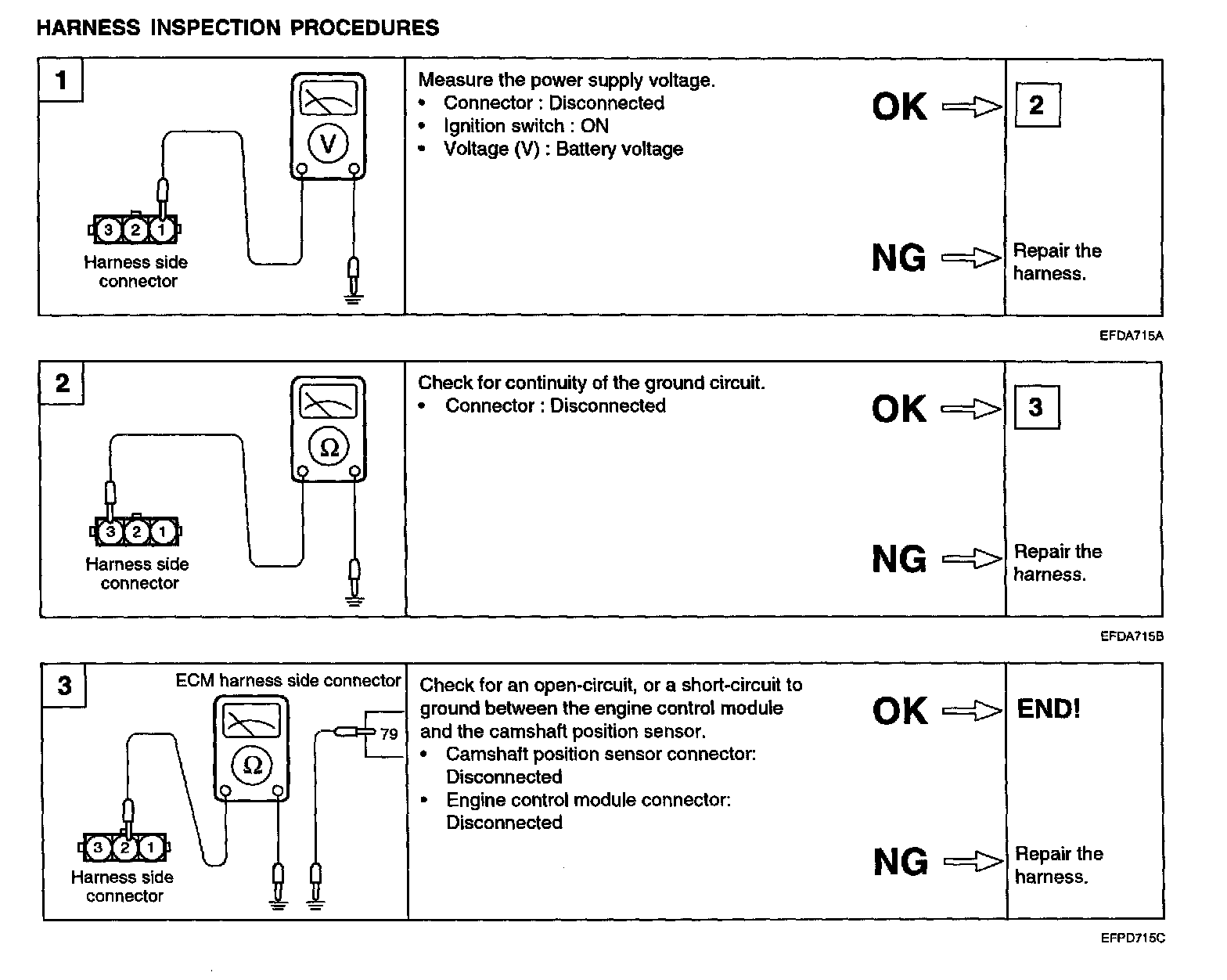

Harness Inspection Procedures:
