Installation
INSTALLATION

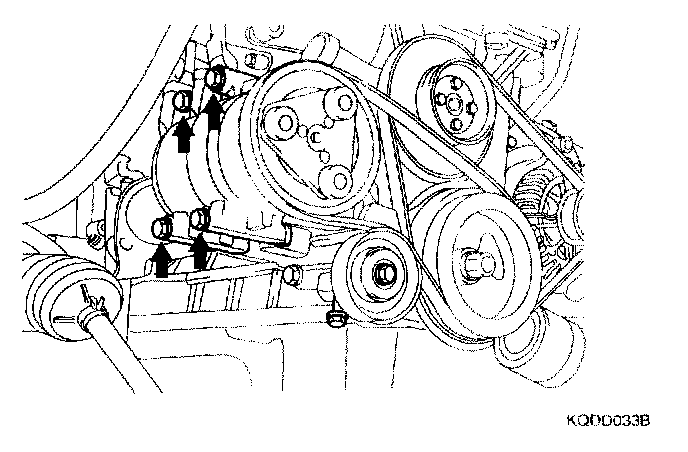

1. Tighten the 4 compressor mounting bolts
2. Connect the suction hose and discharge hose to the compressor.

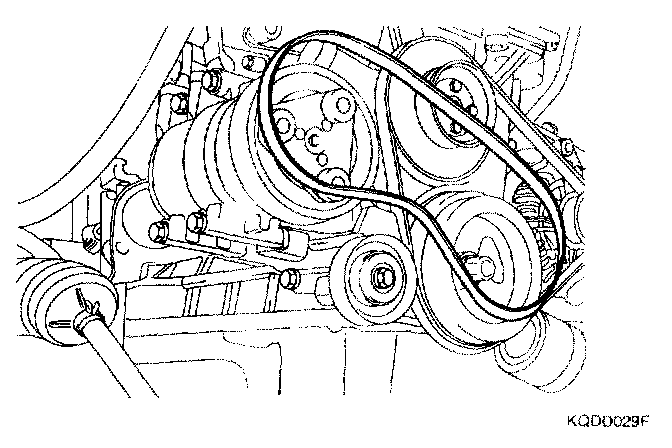

3. Connect the drive-belt.
4. Adjust the drive-belt tension.
5. Supply the coolant.
Specified amount: 550 ± 25g
1. Tighten the 4 compressor mounting bolts
2. Connect the suction hose and discharge hose to the compressor.
3. Connect the drive-belt.
4. Adjust the drive-belt tension.
5. Supply the coolant.
Specified amount: 550 ± 25g
