System Diagram
System Diagram

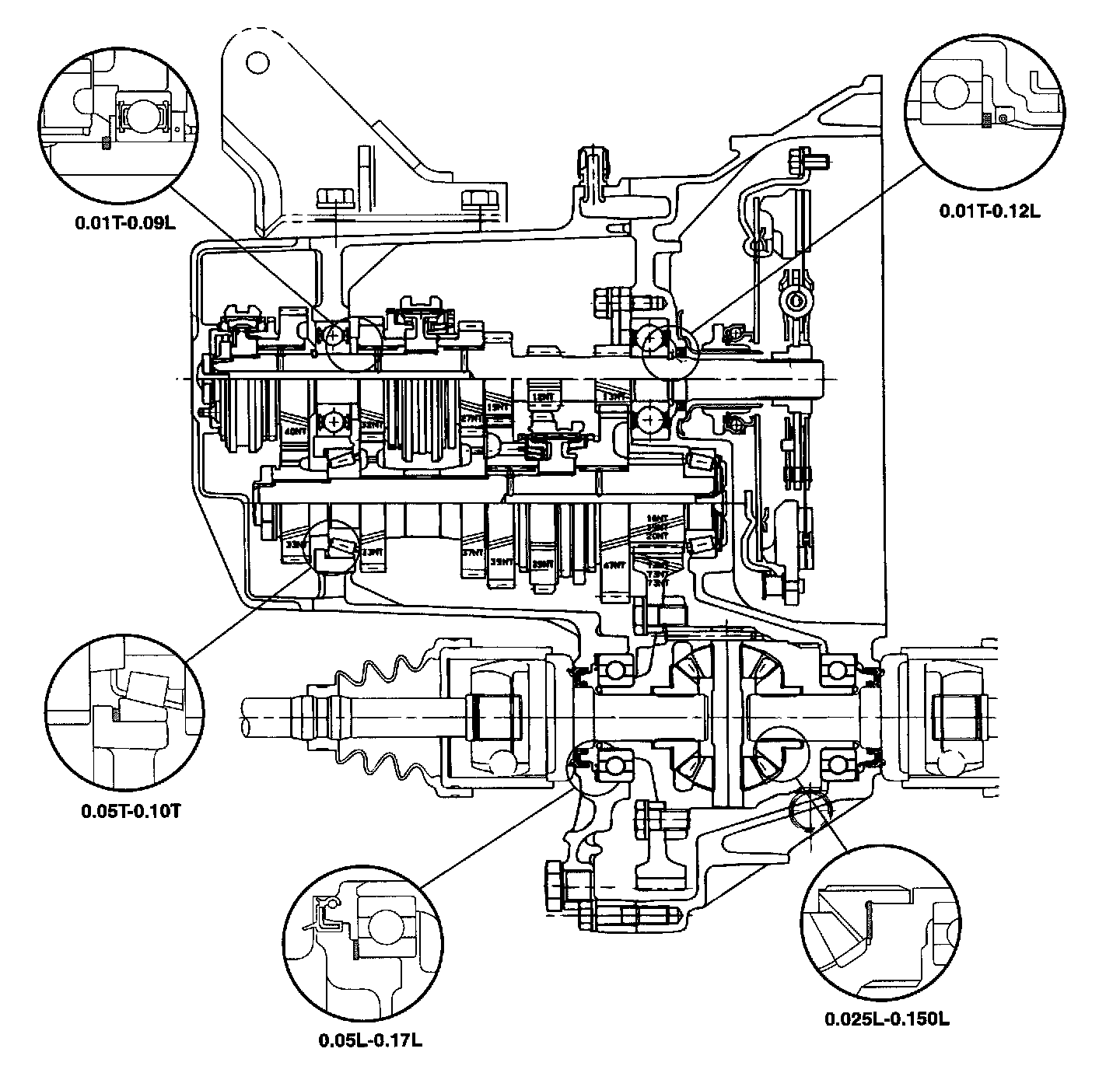

SECTION VIEW

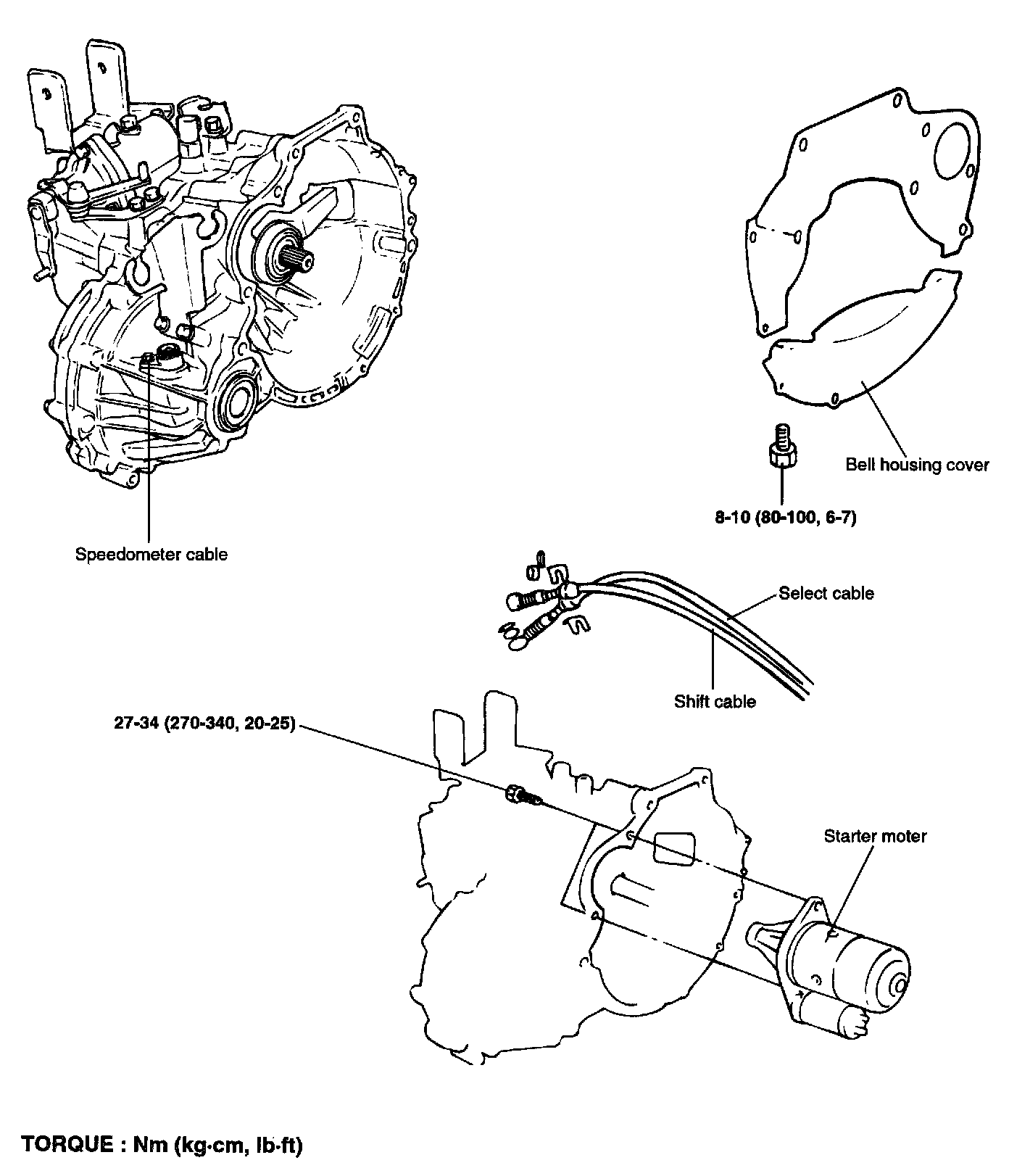

MANUAL TRANSAXLE REPLACEMENT W/ RELATED COMPONENTS

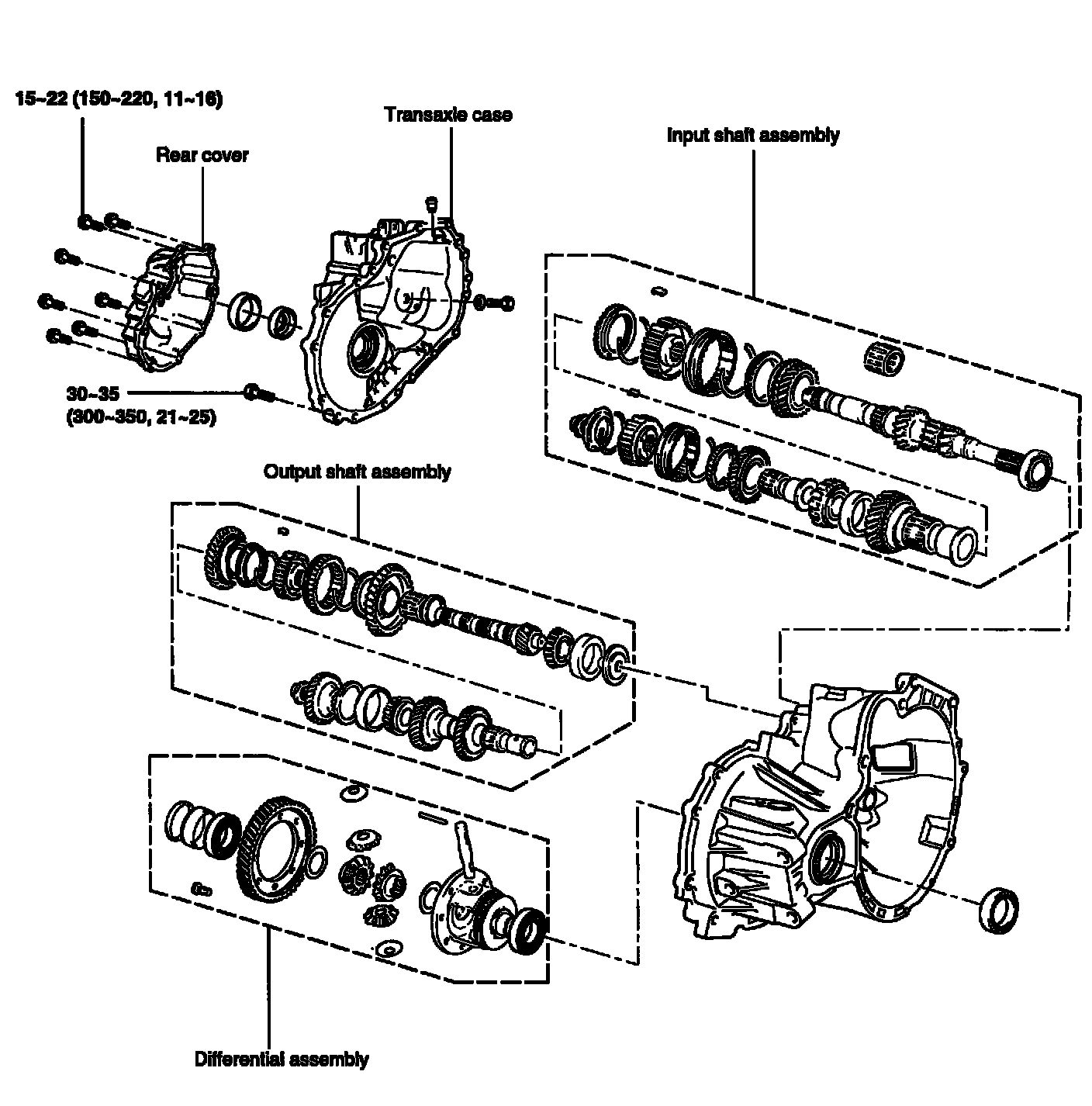

COMPONENTS (1)
COMPONENTS (2)
