System Diagram

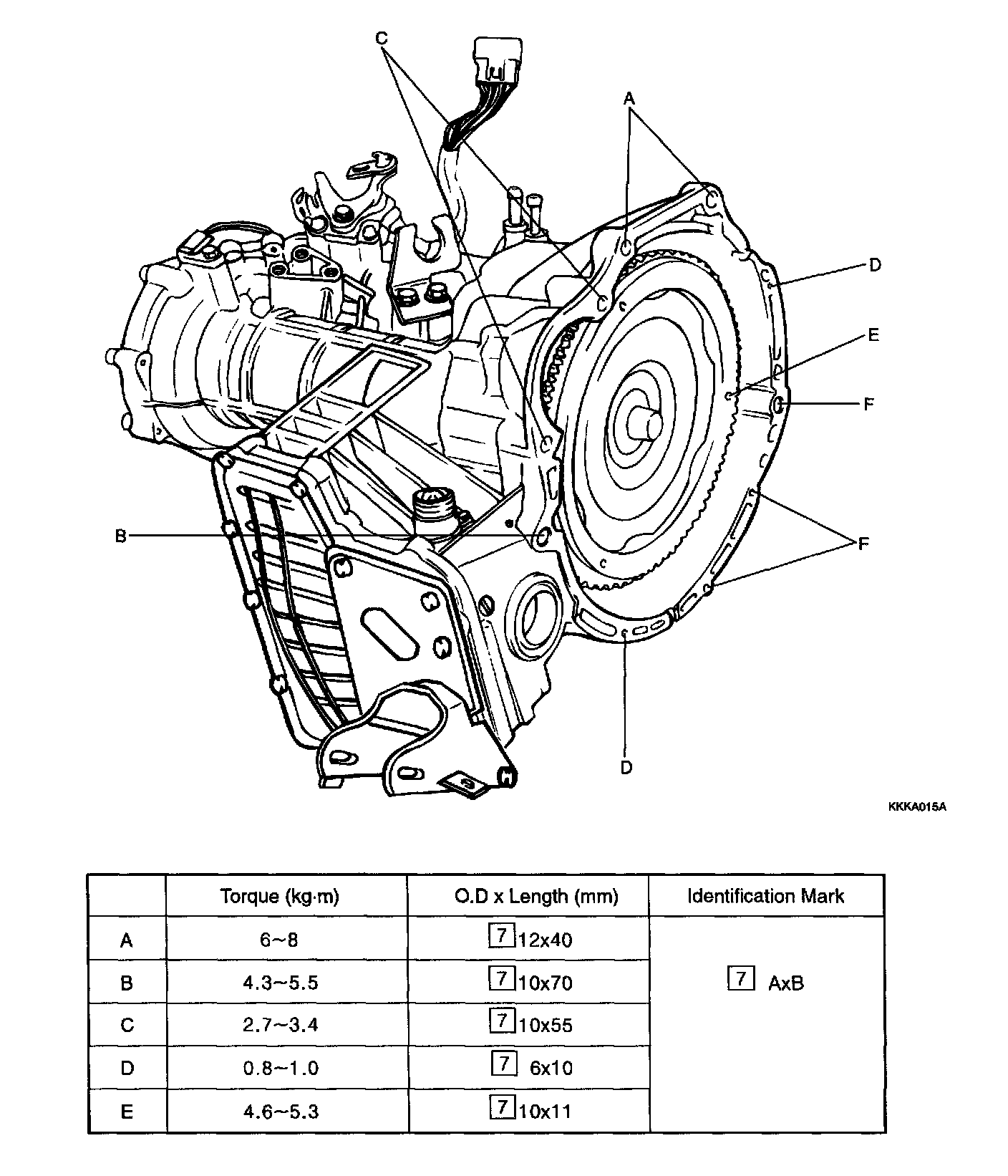

AUTOMATIC TRANSAXLE COMPONENTS

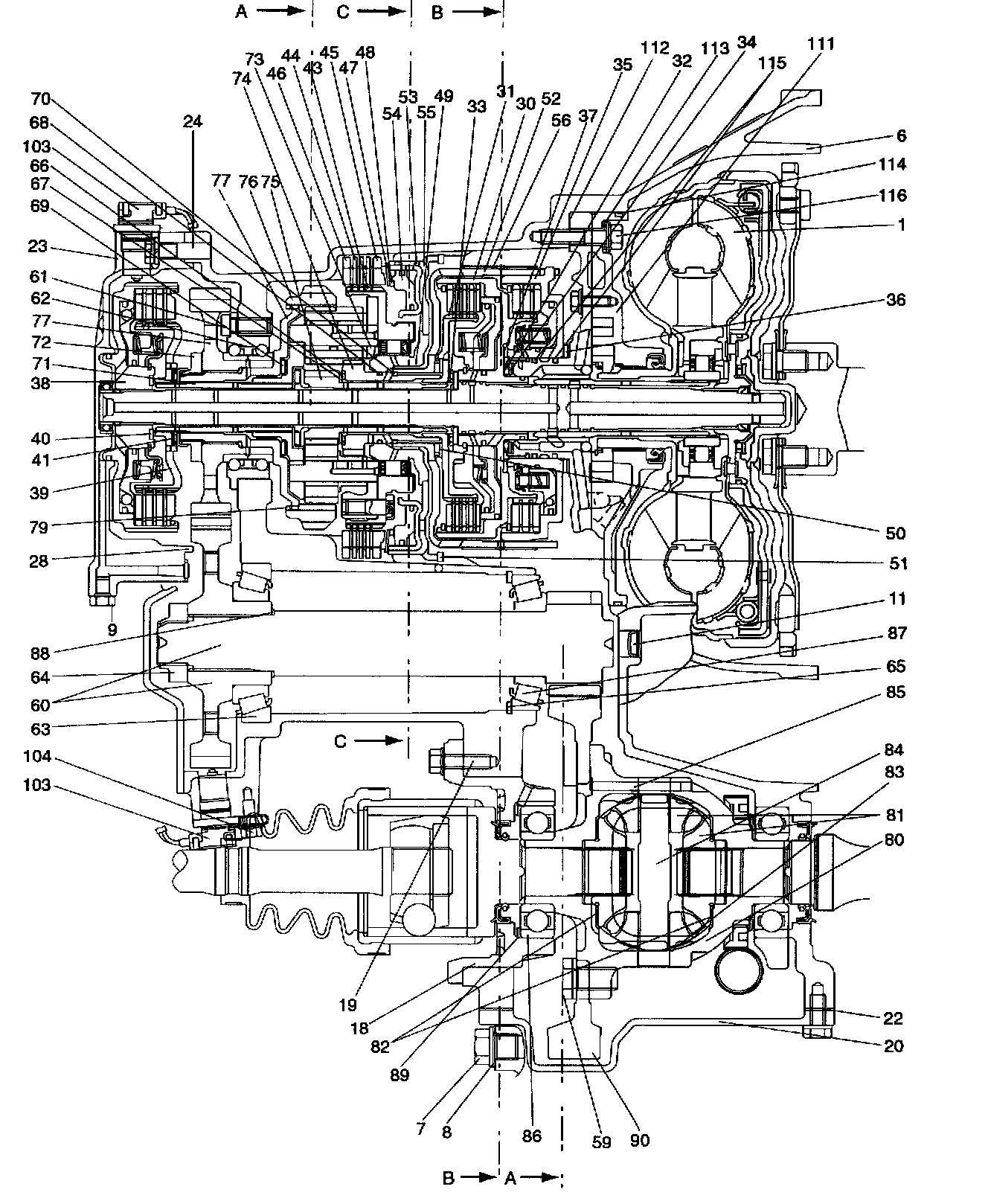

COMPONENTS (1)

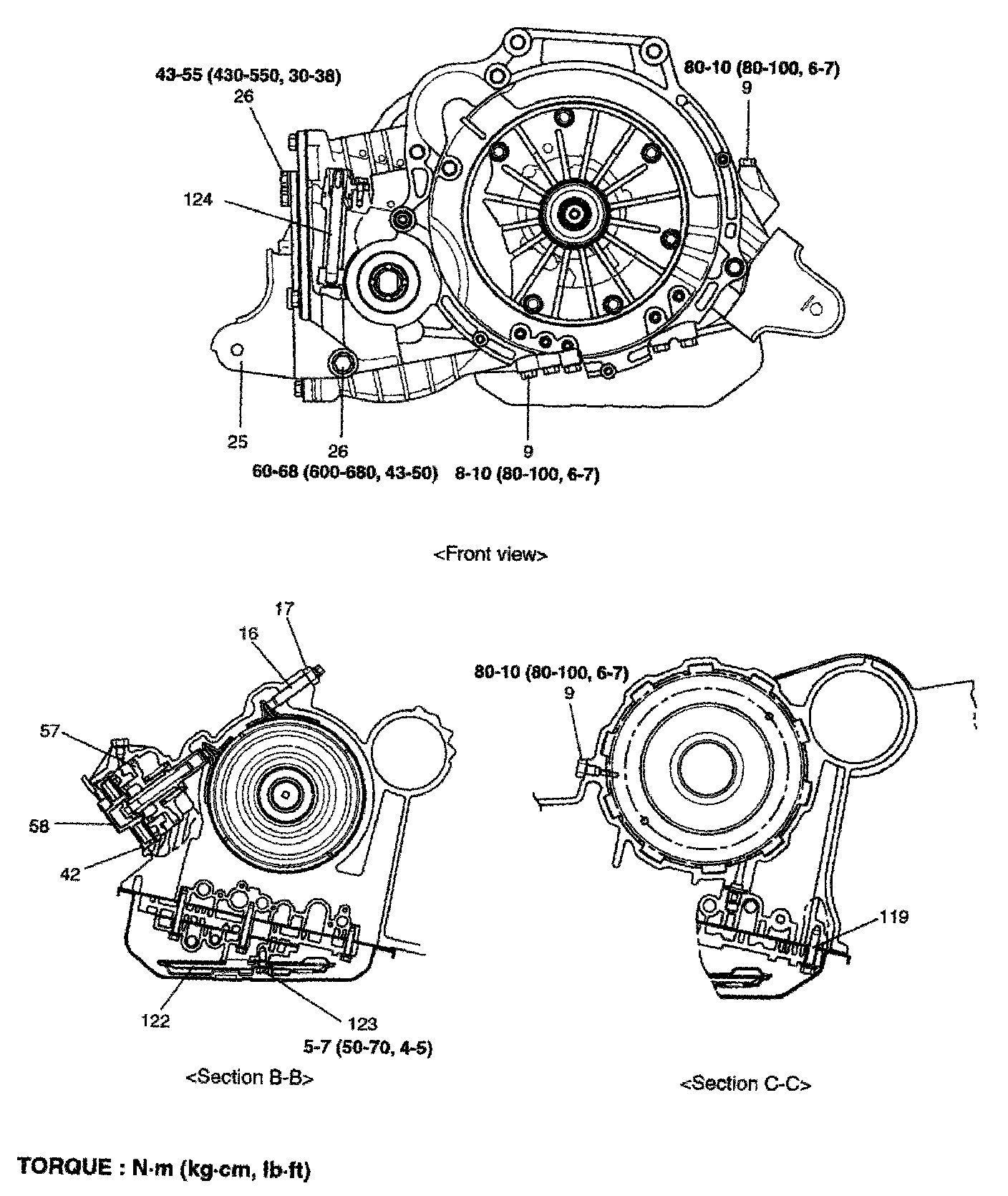

COMPONENTS (2)

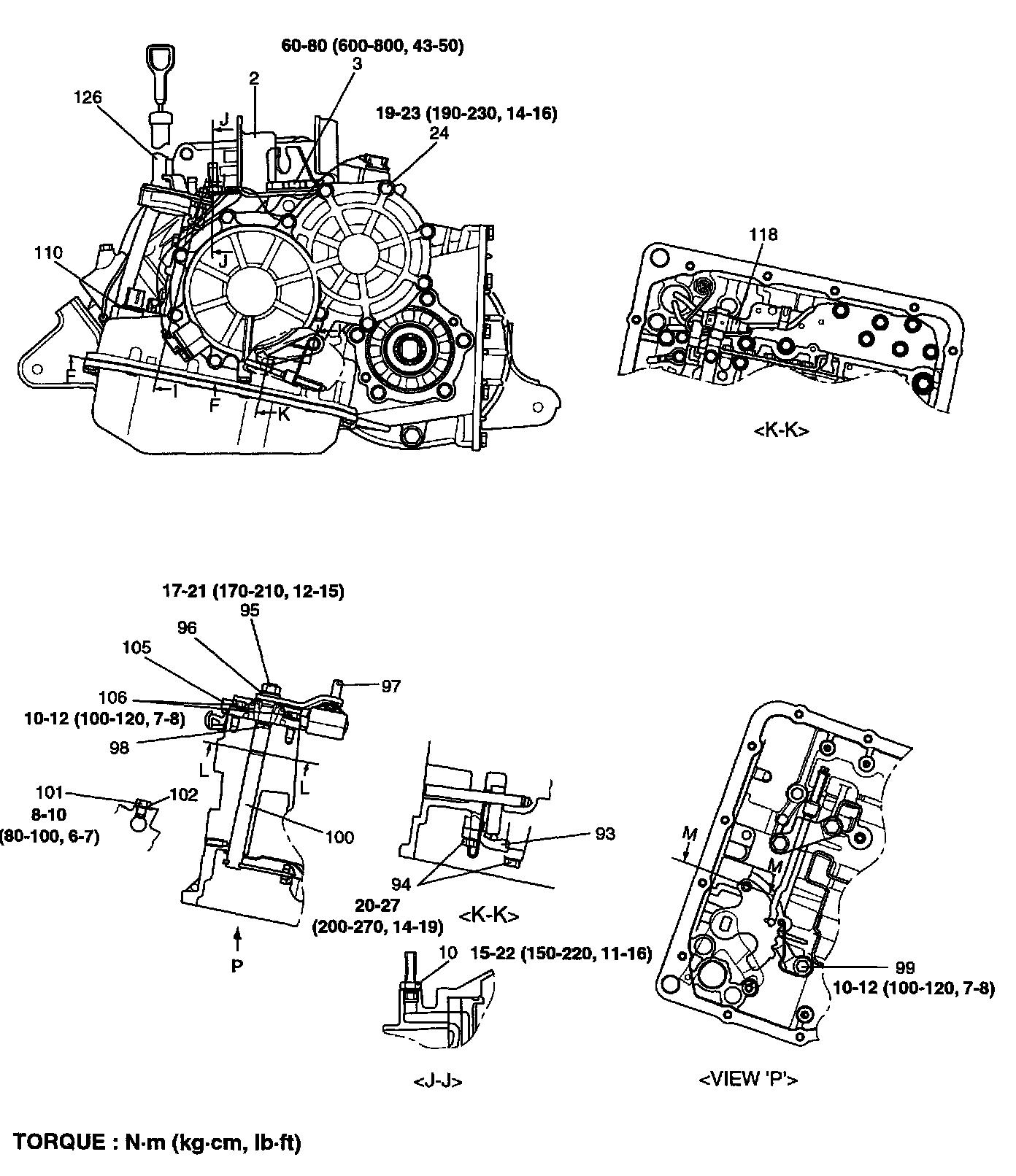

COMPONENTS (3)

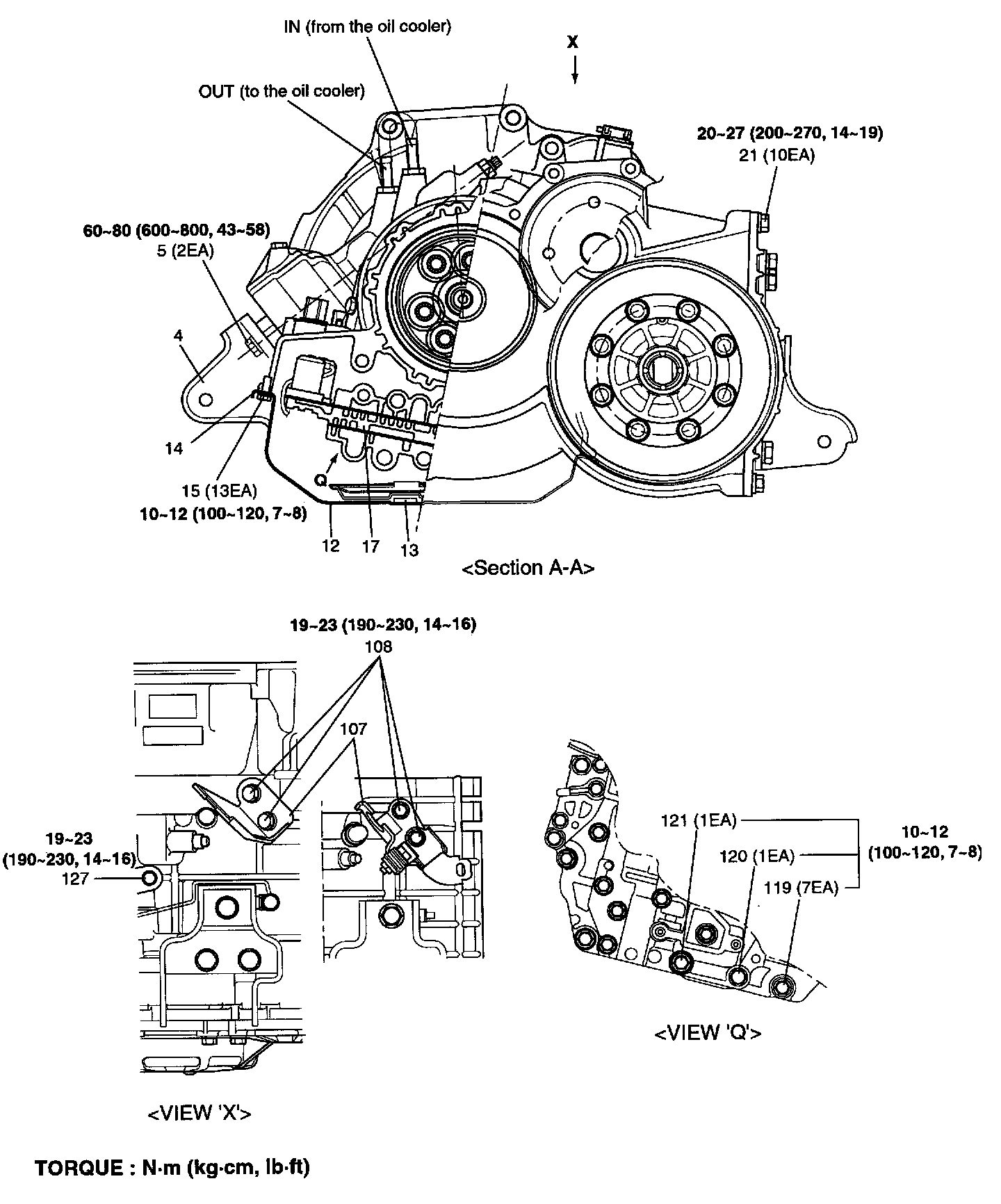

COMPONENTS (4)

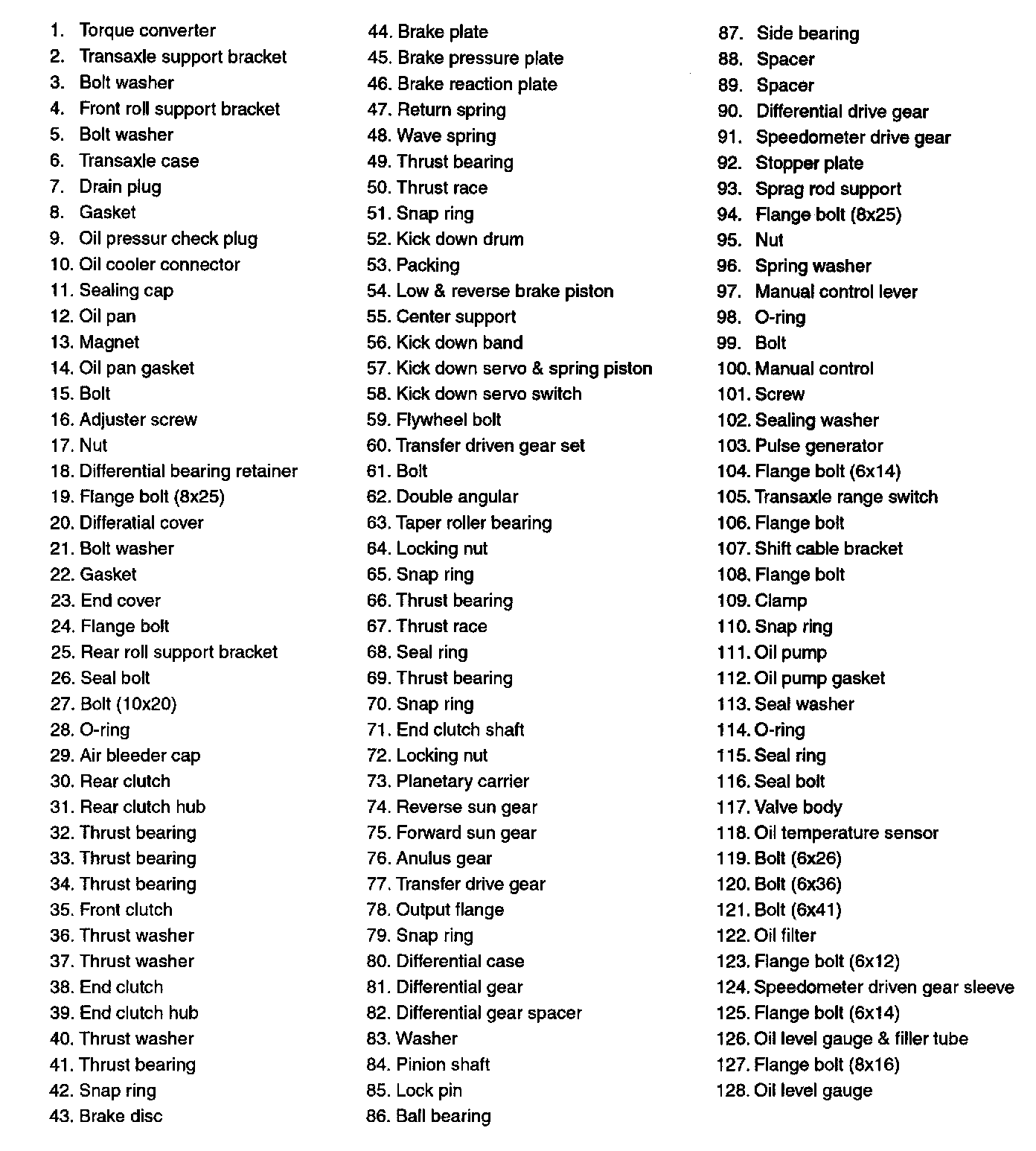

COMPONENTS (5)
