General Information (M5AF3): Components

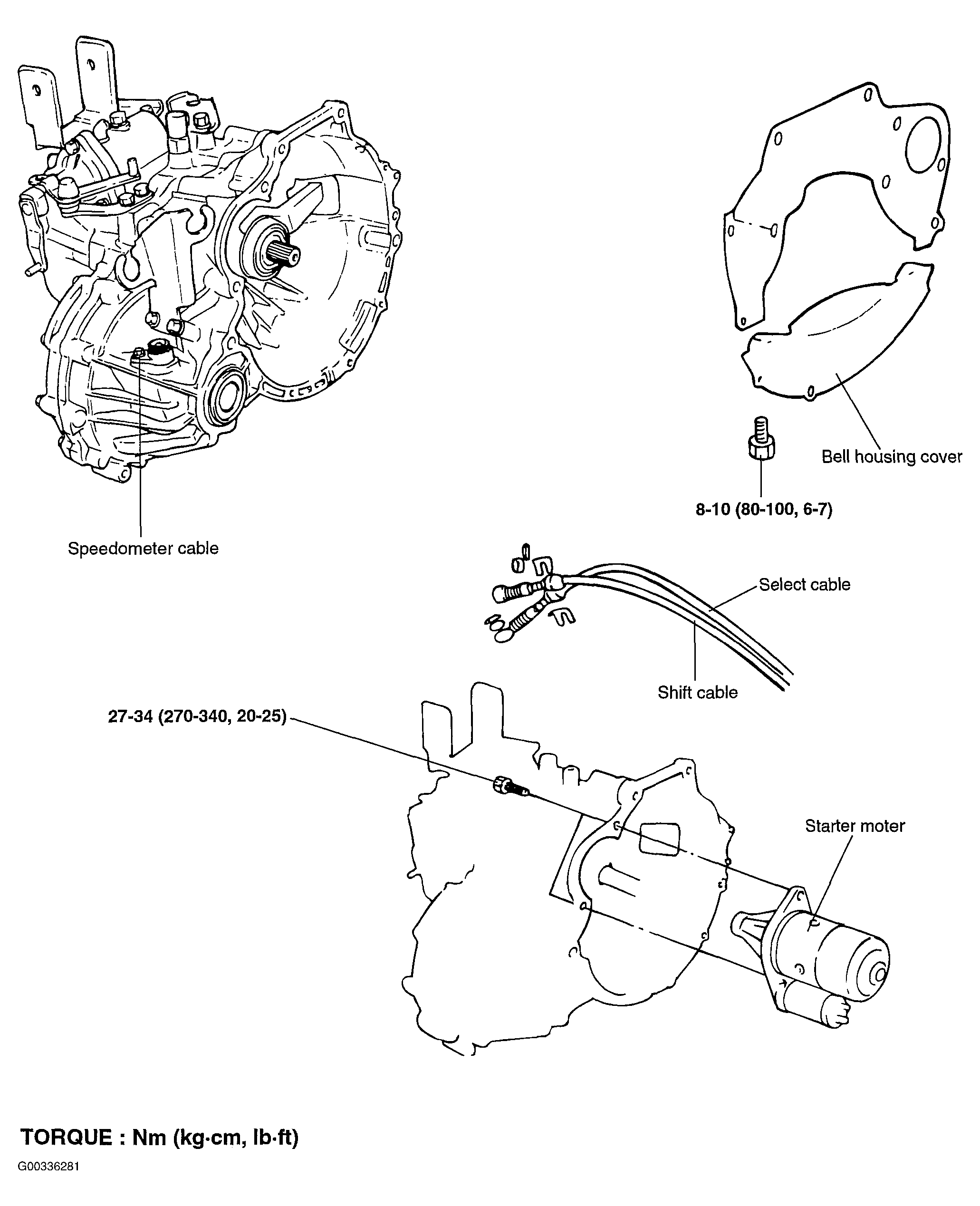

Fig 1: Identifying Manual Transaxle Components (1 Of 2)
G00336281Courtesy of HYUNDAI MOTOR CO.

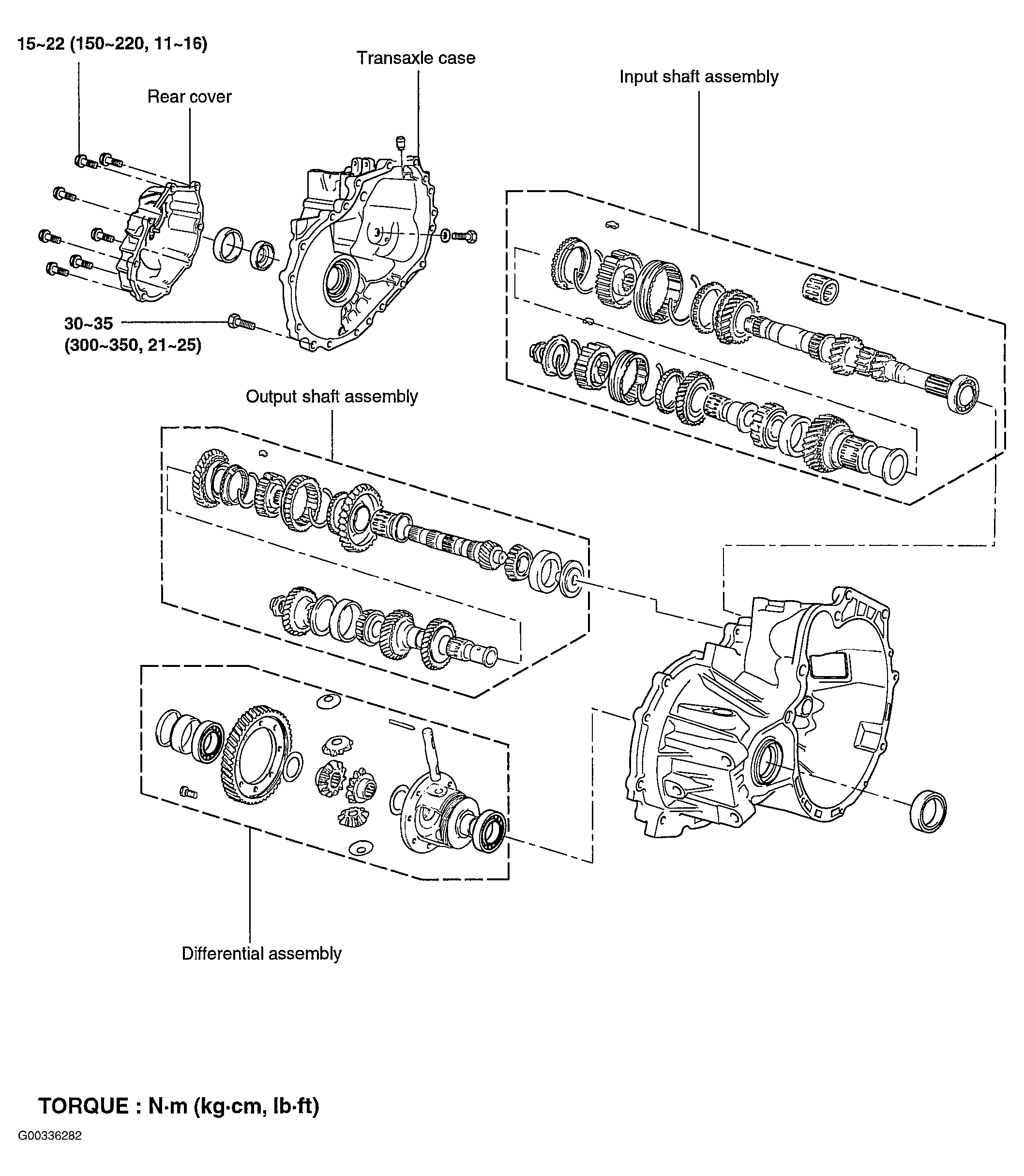

Fig 2: Identifying Manual Transaxle Components (2 Of 2)
G00336282Courtesy of HYUNDAI MOTOR CO.
