Engine Block: Components

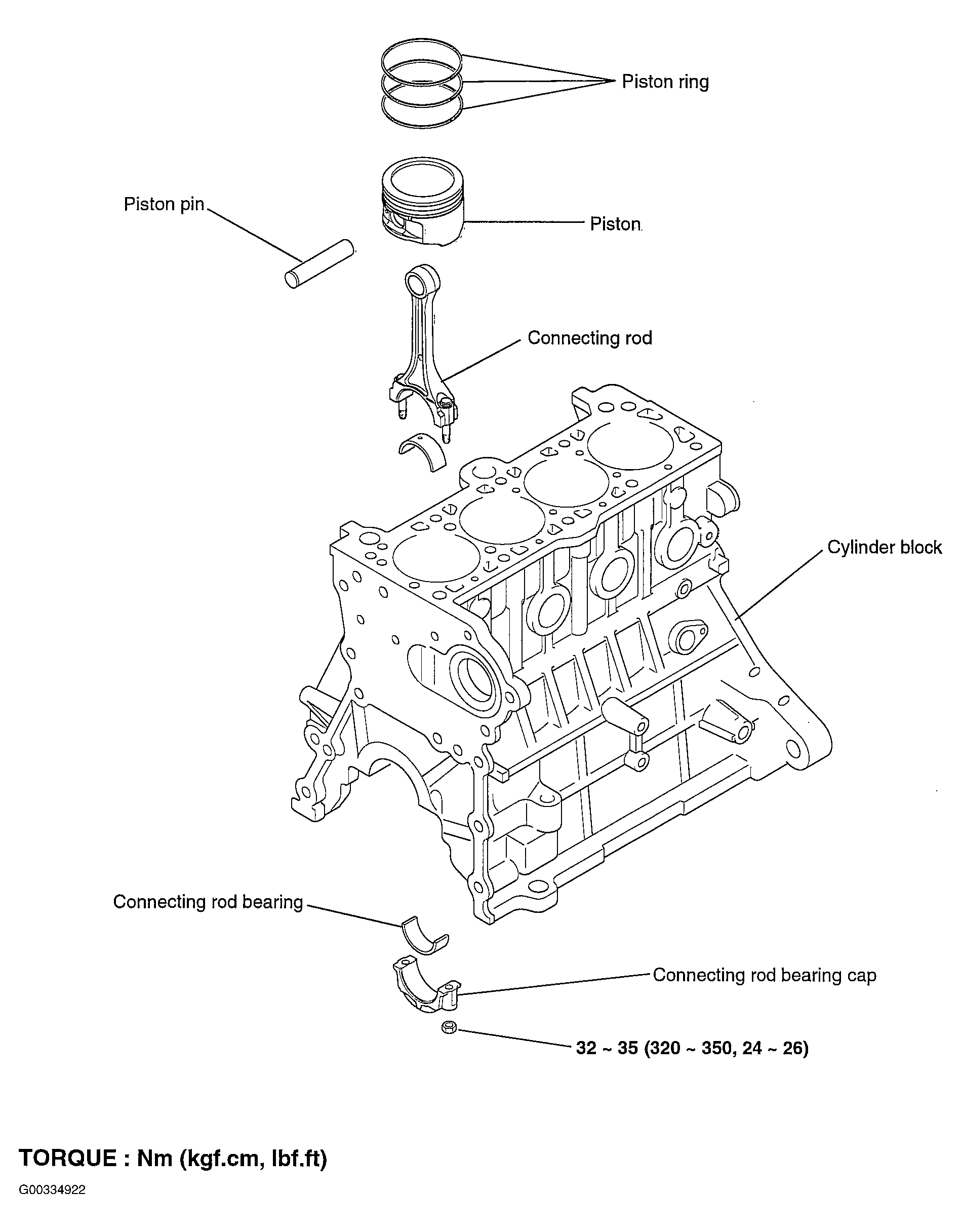

Fig 1: Identifying Engine Block Components
G00334922Courtesy of HYUNDAI MOTOR CO.
