Home >> Hyundai >> 2003 >> XG 350 V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> System Relay >> Locations

System Relay: Locations

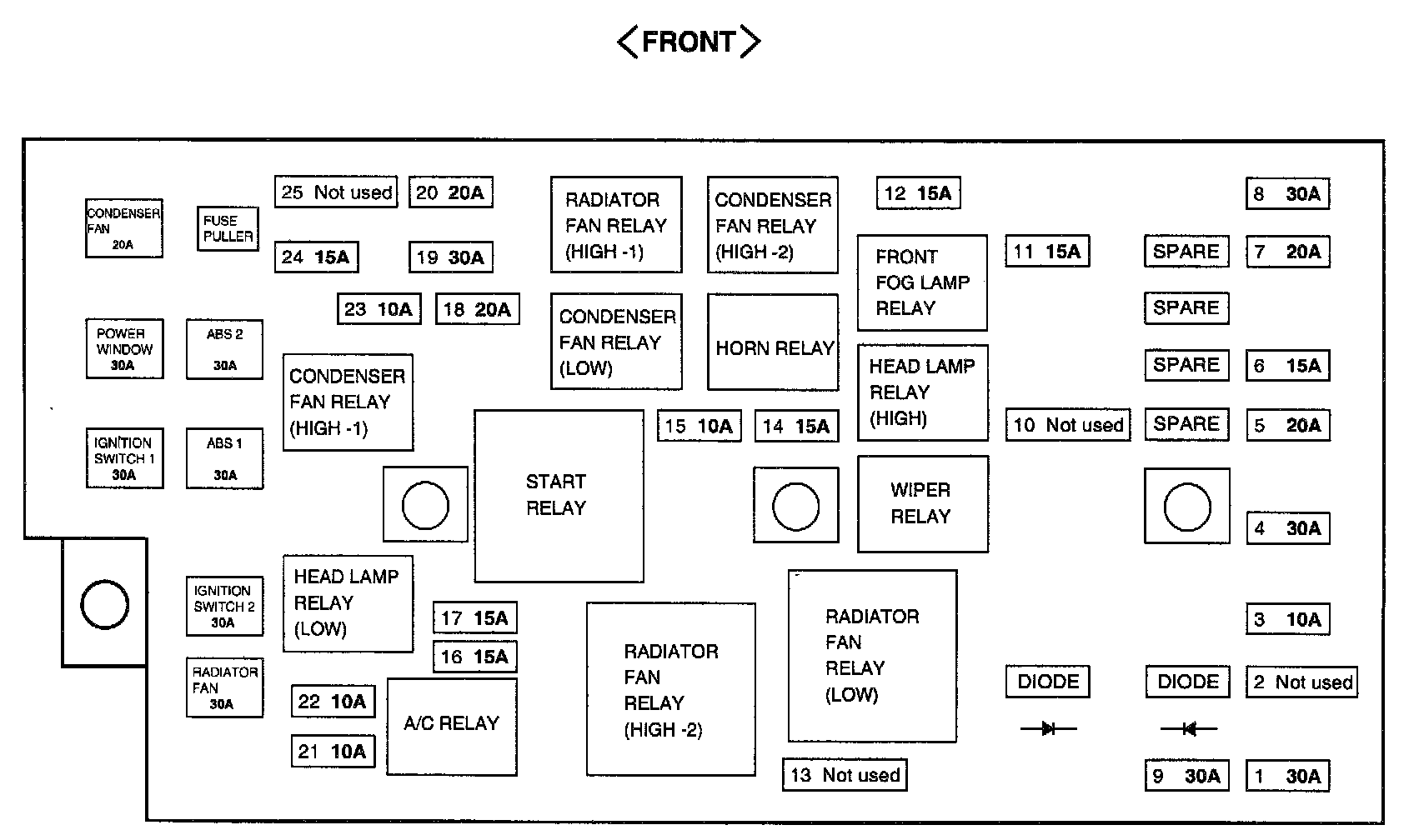

Engine Compartment Junction Block Layout (Front):
