Home >> Hyundai >> 2003 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Locations

Starter Motor: Locations

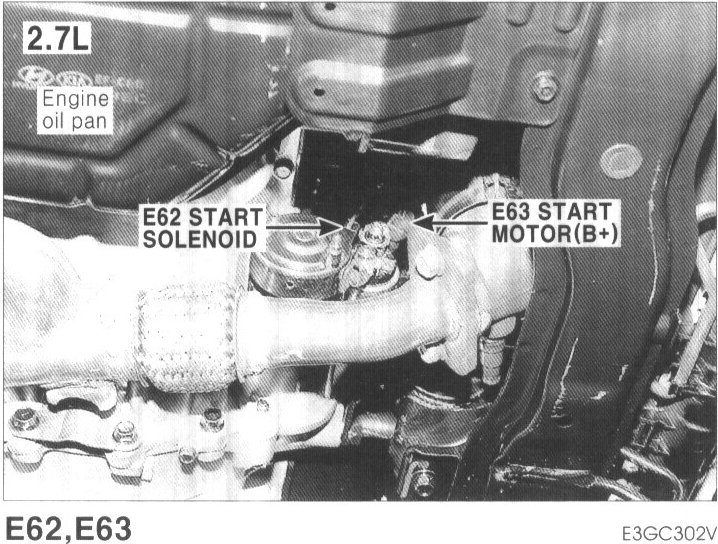

E62, E63:

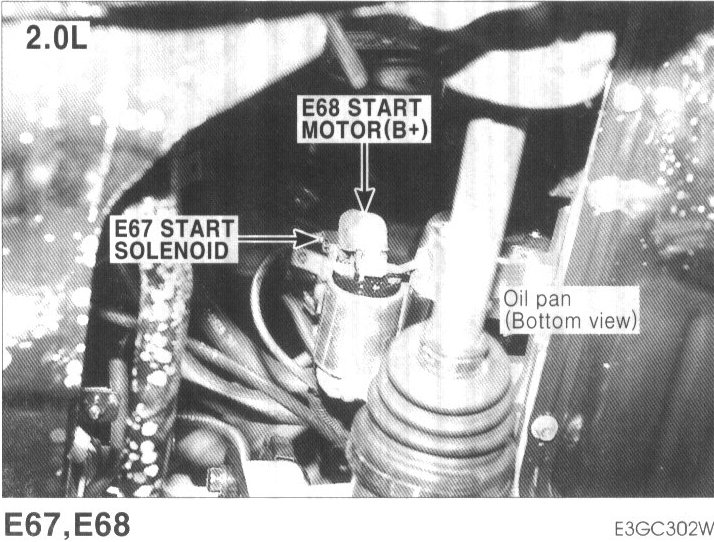

E67, E68:
