Front Stabilizer Bar: Notes

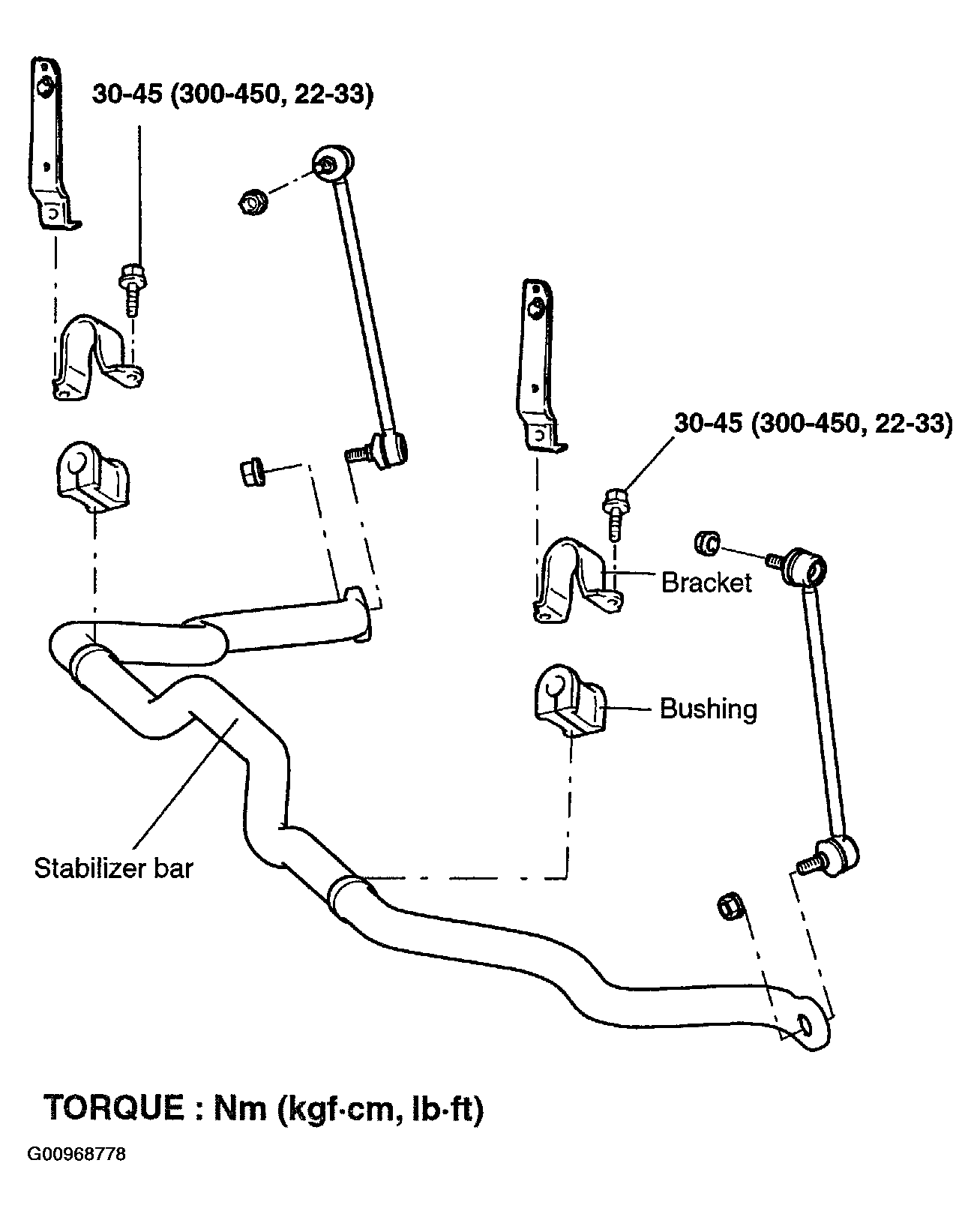

Fig 1: Front Stabilizer Bar Components

G00968778

Courtesy of HYUNDAI MOTOR CO.
