Engine Mounting

REMOVAL

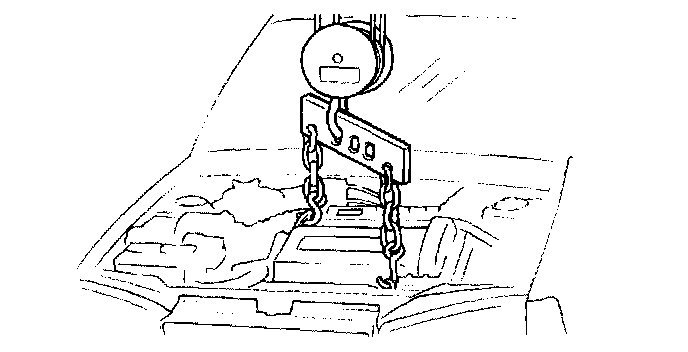

Attach a chain or cable to the engine hooks and lift enough so that there is no pressure on the motor mounts

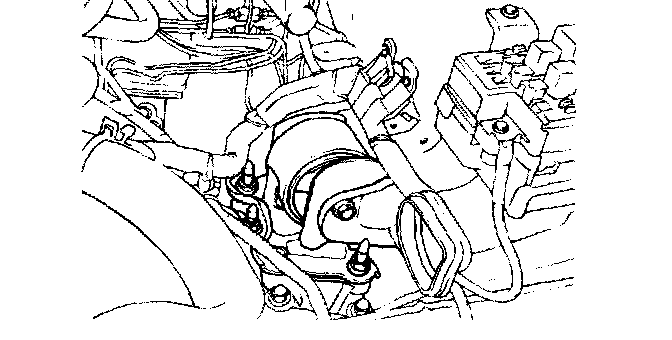

Engine Mounting
1. Remove the engine mounting insulator bolts.
2. Remove the engine mounting bracket from the engine.

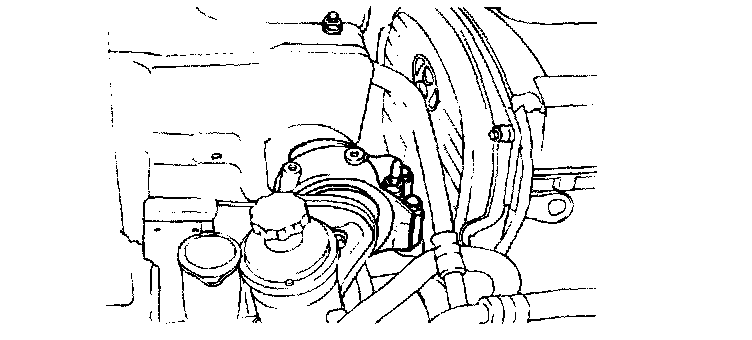

Transaxle Mounting
1. Remove the transaxle mounting insulator bolts.
2. Remove the transaxle mounting bracket from the transaxle.

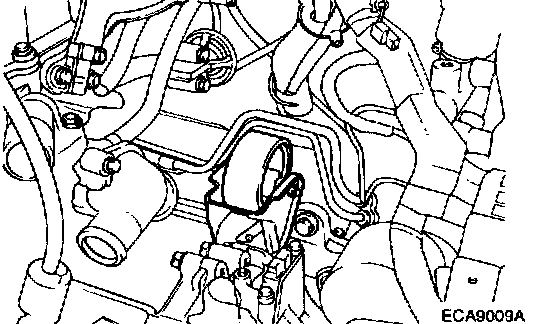

Front Roll Stopper
Remove the front roll stopper bracket from the sub-frame.

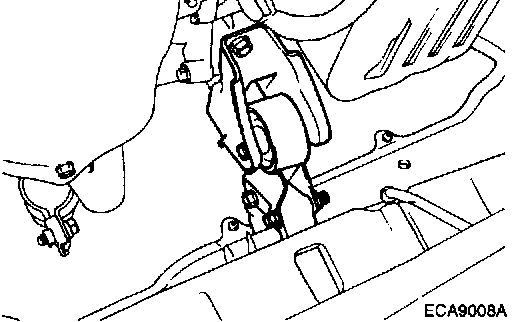

Rear Roll Stopper
1. Remove the bolt from the rear roll stopper.
2. Remove the rear roll stopper from the subframe.
