Steering Control Module

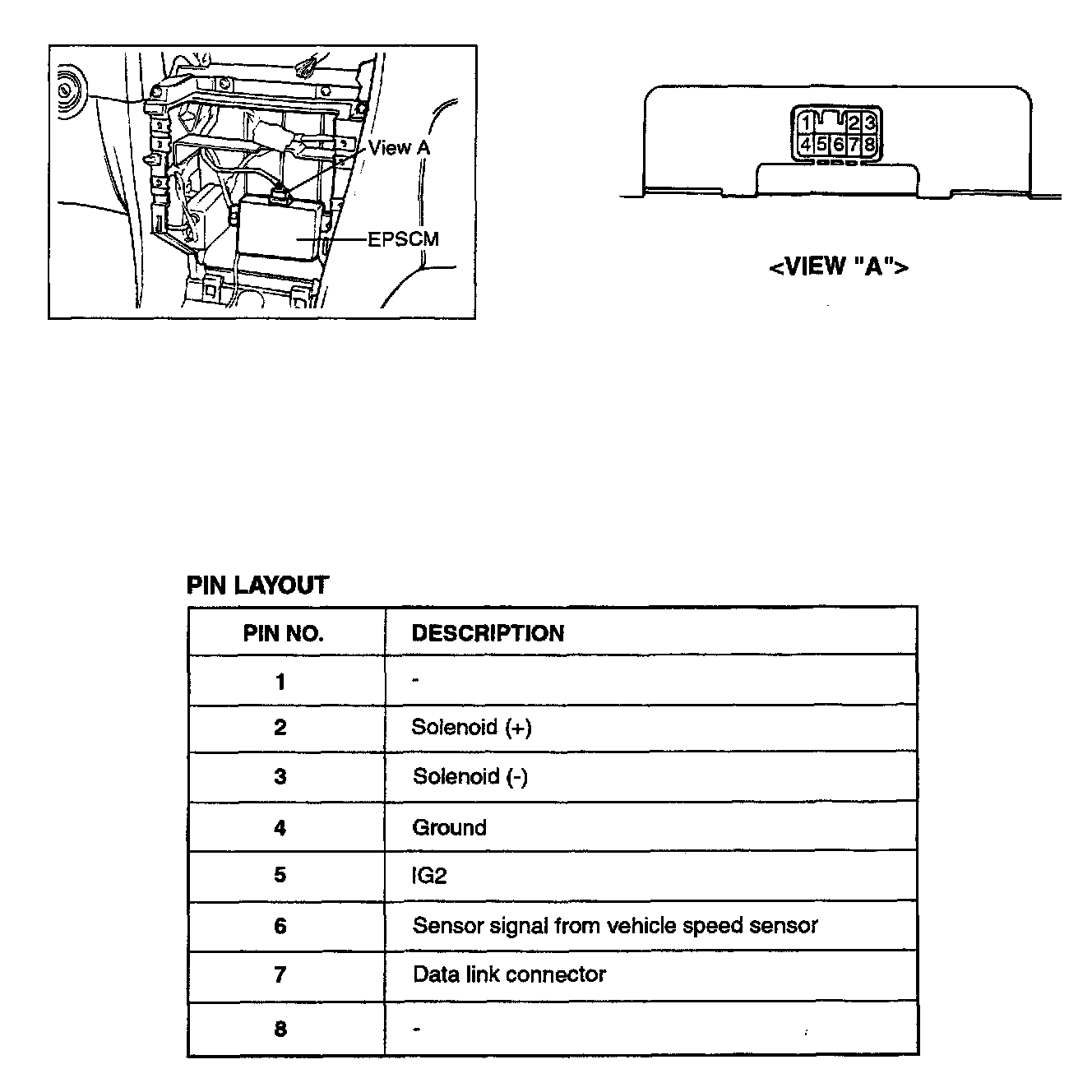

ELECTRONIC POWER MODULE





The EPSCM is installed underneath the audio inside the center facia.
