System Specifications

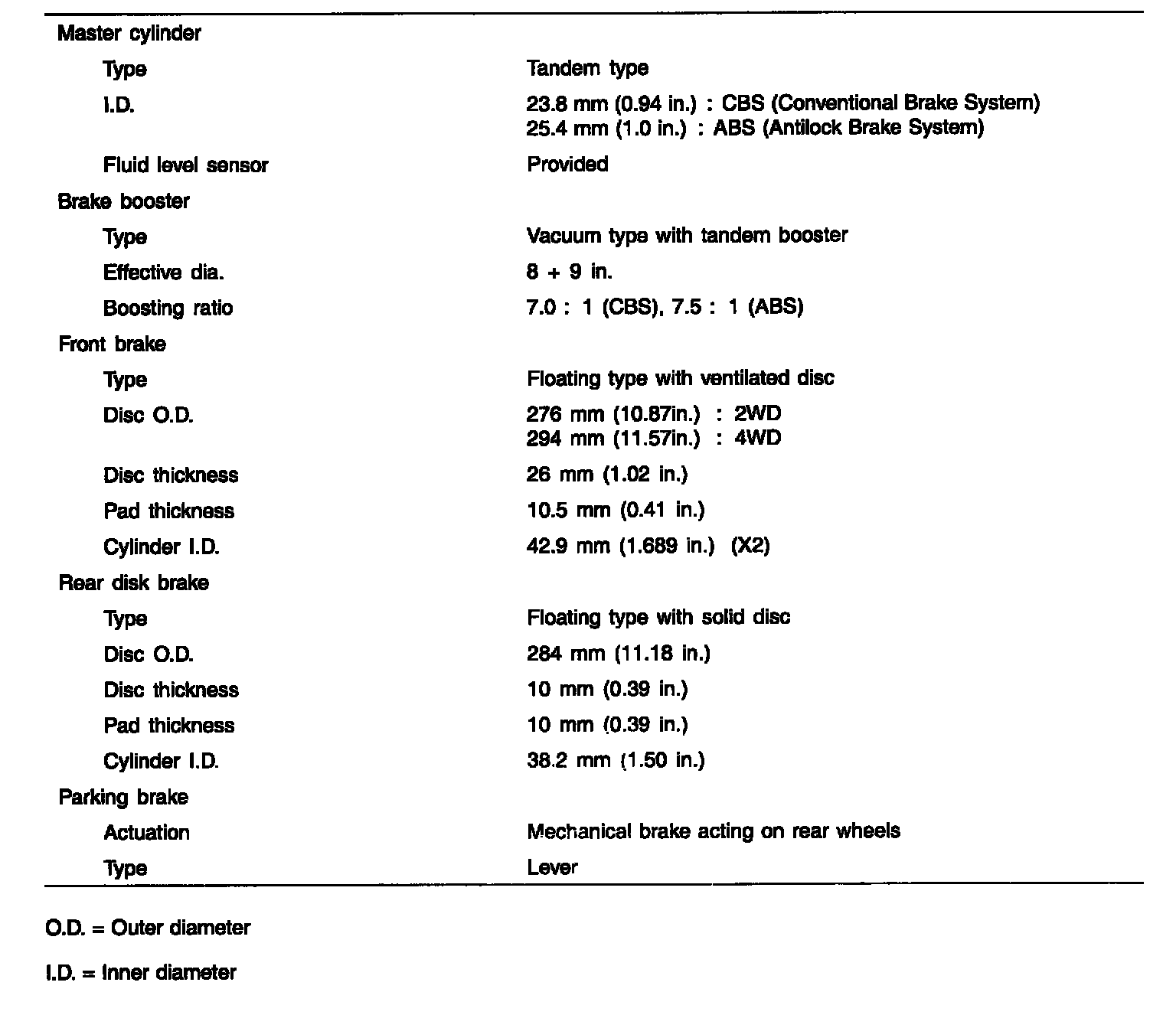

SPECIFICATIONS

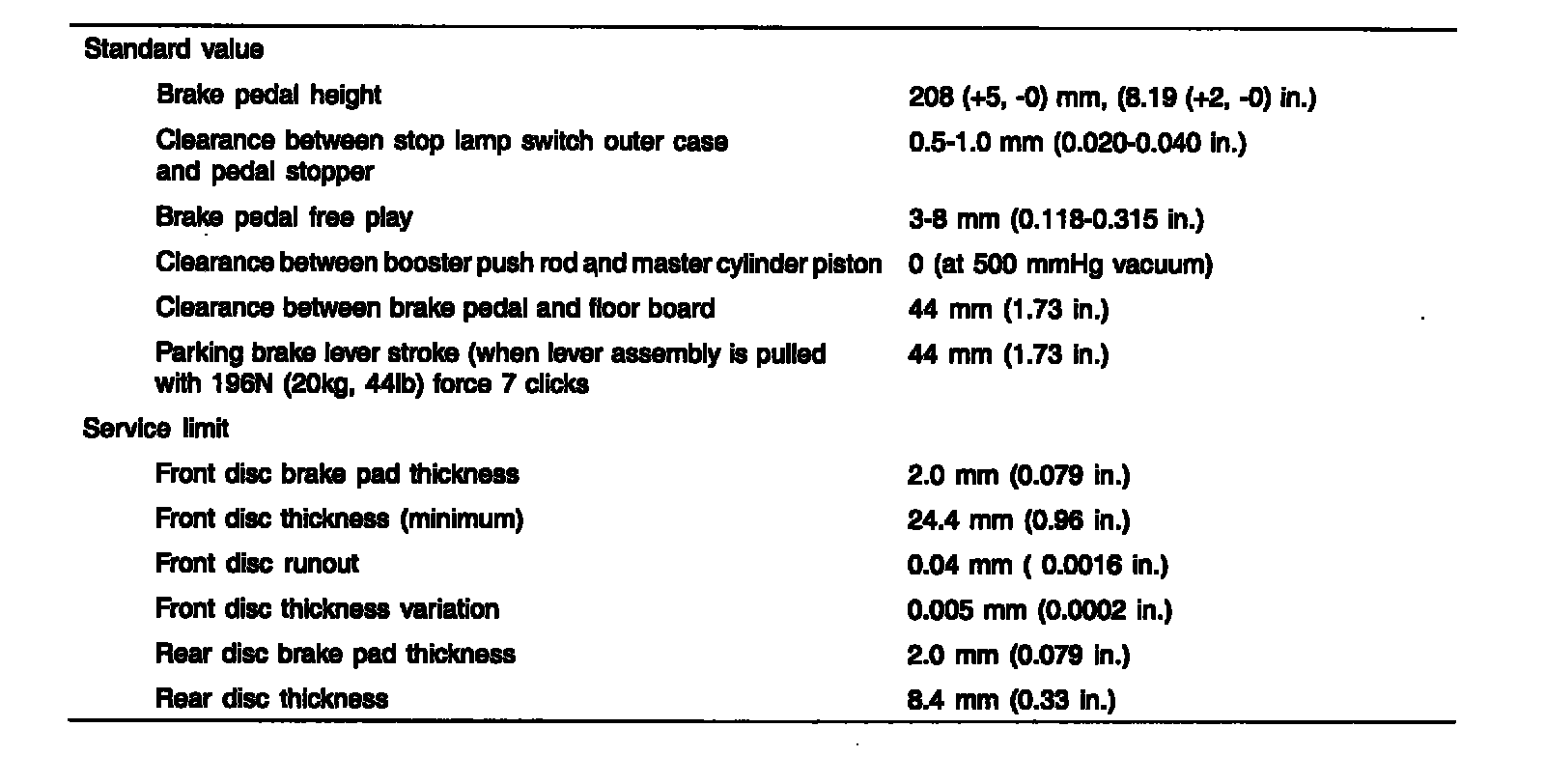

SERVICE STANDARD

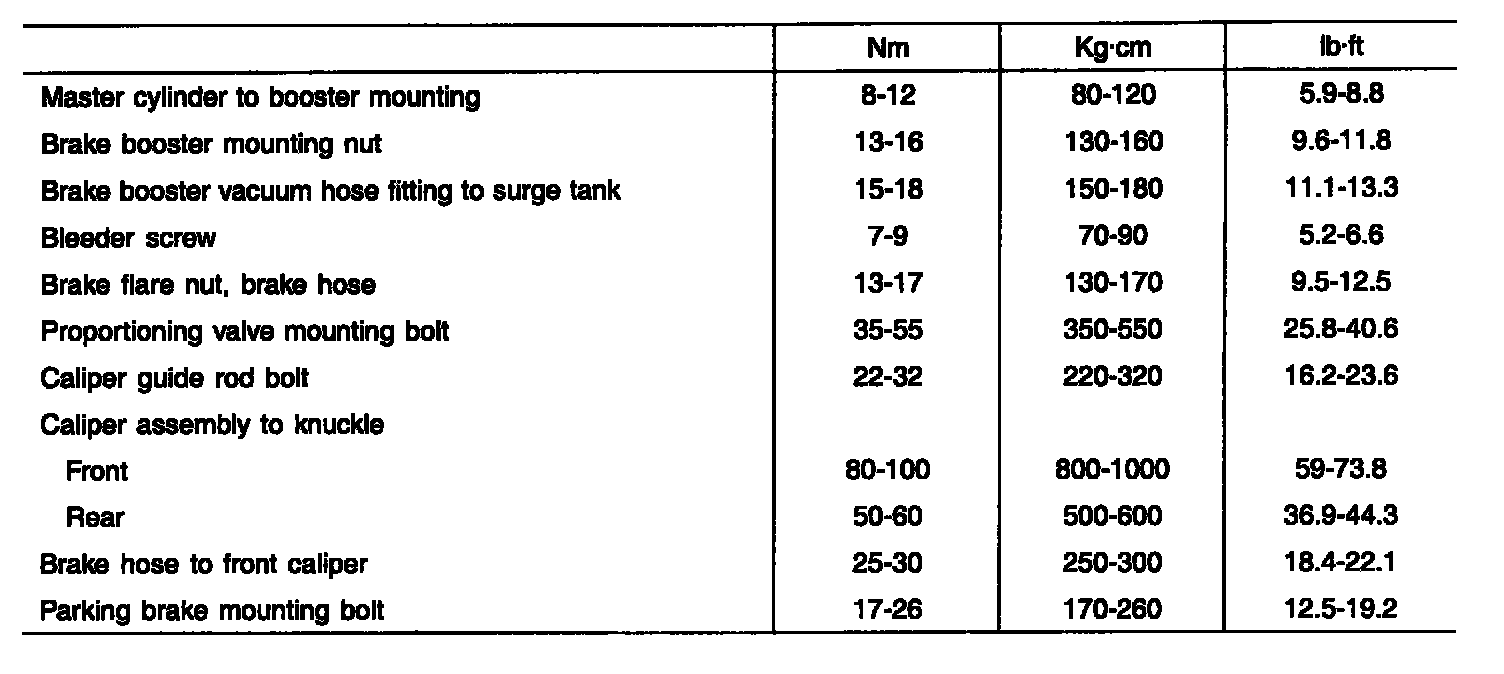

TIGHTENING TORQUE





CAUTION: Replace the self-locking nuts with new ones after removal.

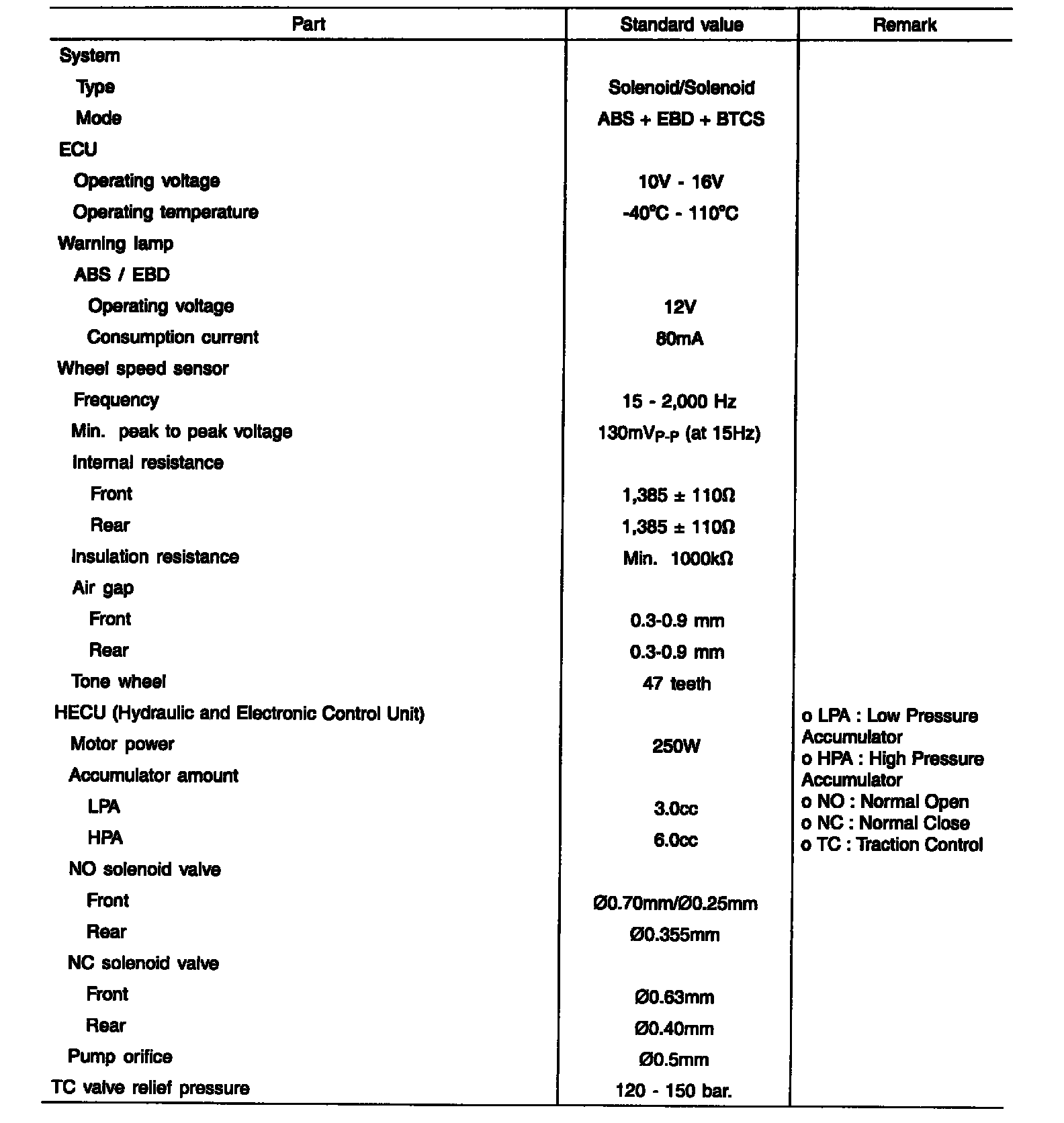

ABS (ANTI-LOCK BRAKE SYSTEM)





TIGHTENING TORQUE (ABS)
