Home >> Hyundai >> 2003 >> Santa Fe L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> System Relay >> Locations

System Relay: Locations

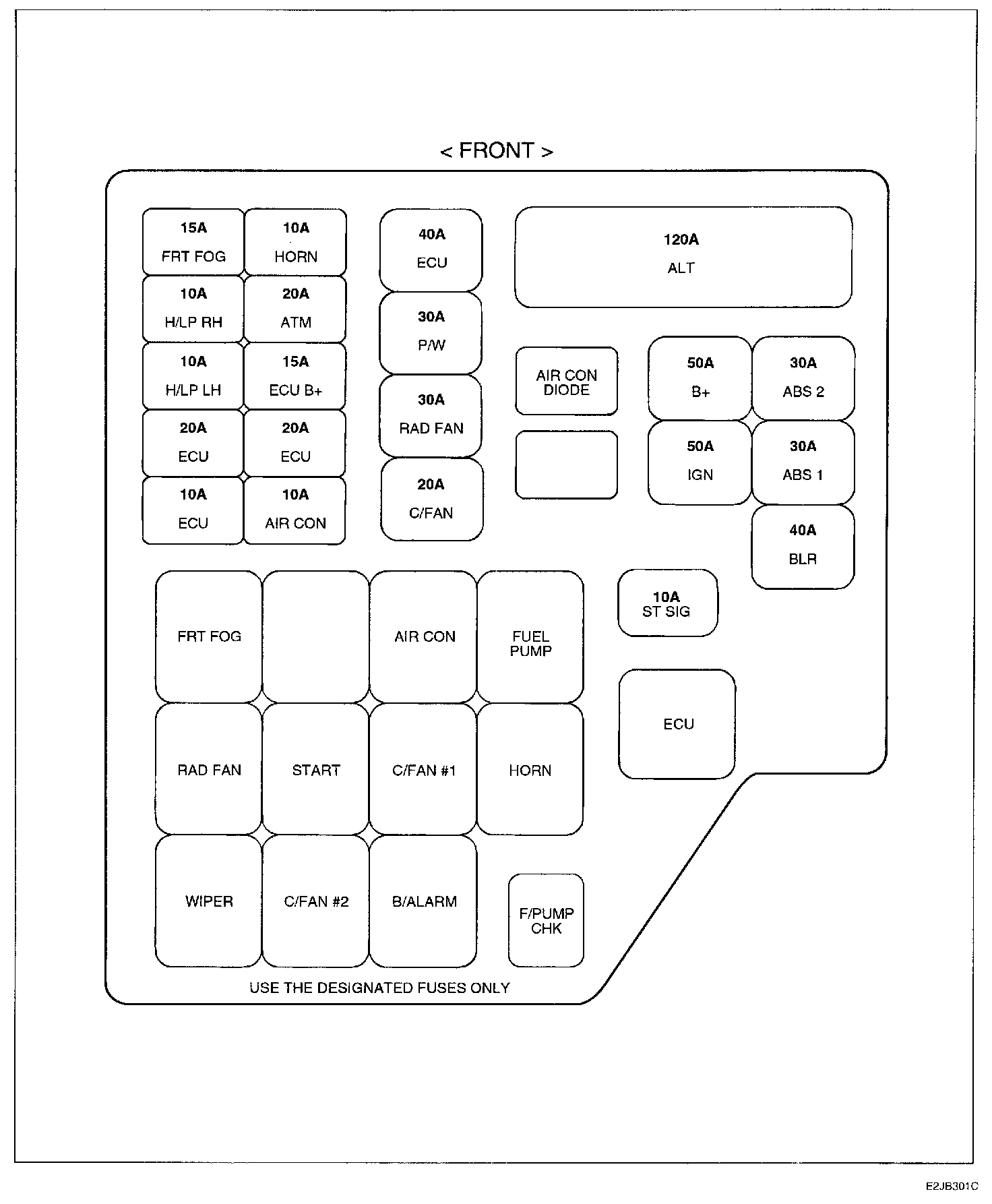

Engine Compartment Junction Block Layout <Front>:



G05:
