Automatic Transaxle Components: Notes

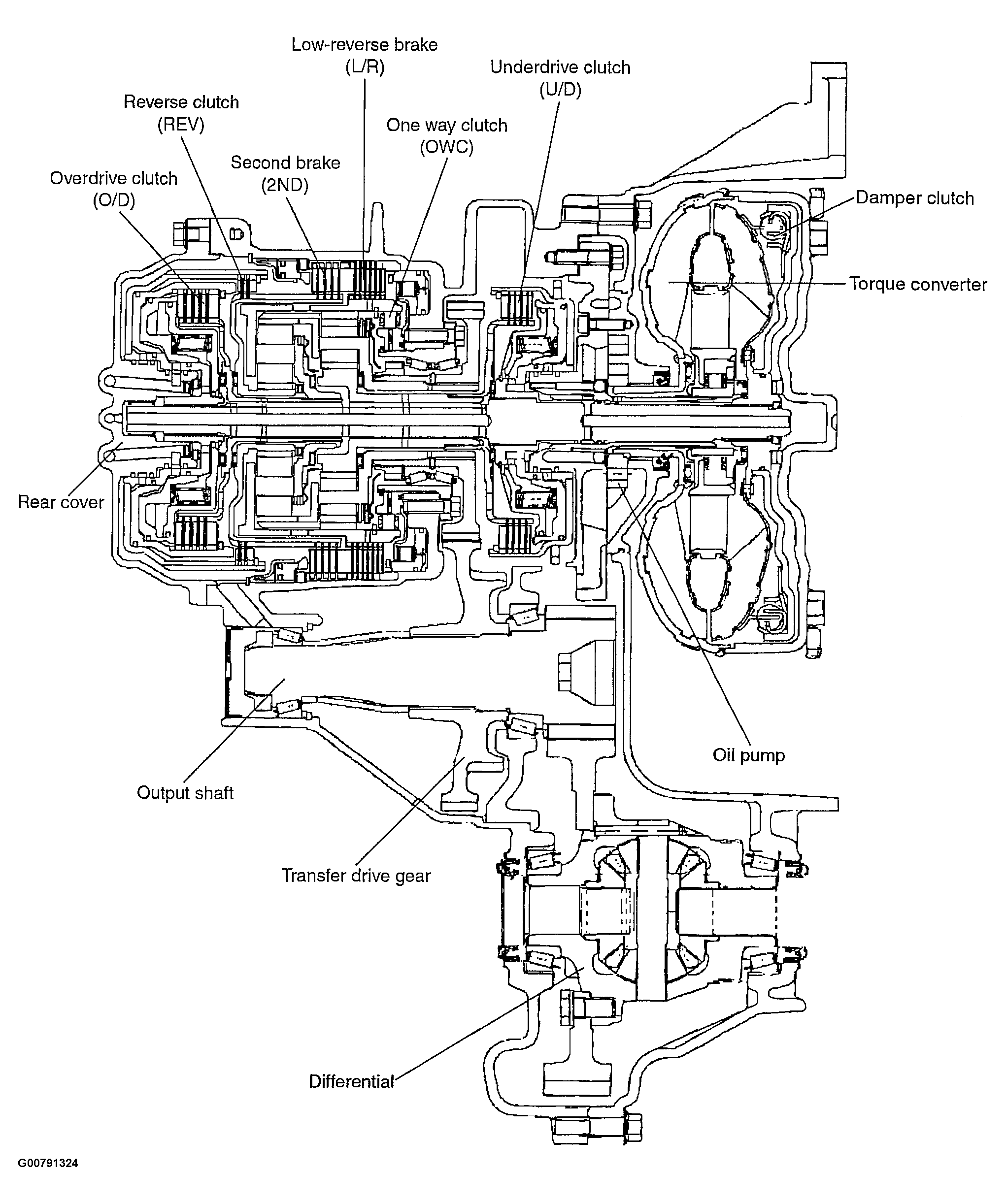

Fig 1: Automatic Transaxle Components

G00791324

Courtesy of HYUNDAI MOTOR CO.
