Ignition Switch: Testing and Inspection

Ignition Switch/Key Lock Solenoid:




INSPECTION
1. Remove the connector located under the steering column.

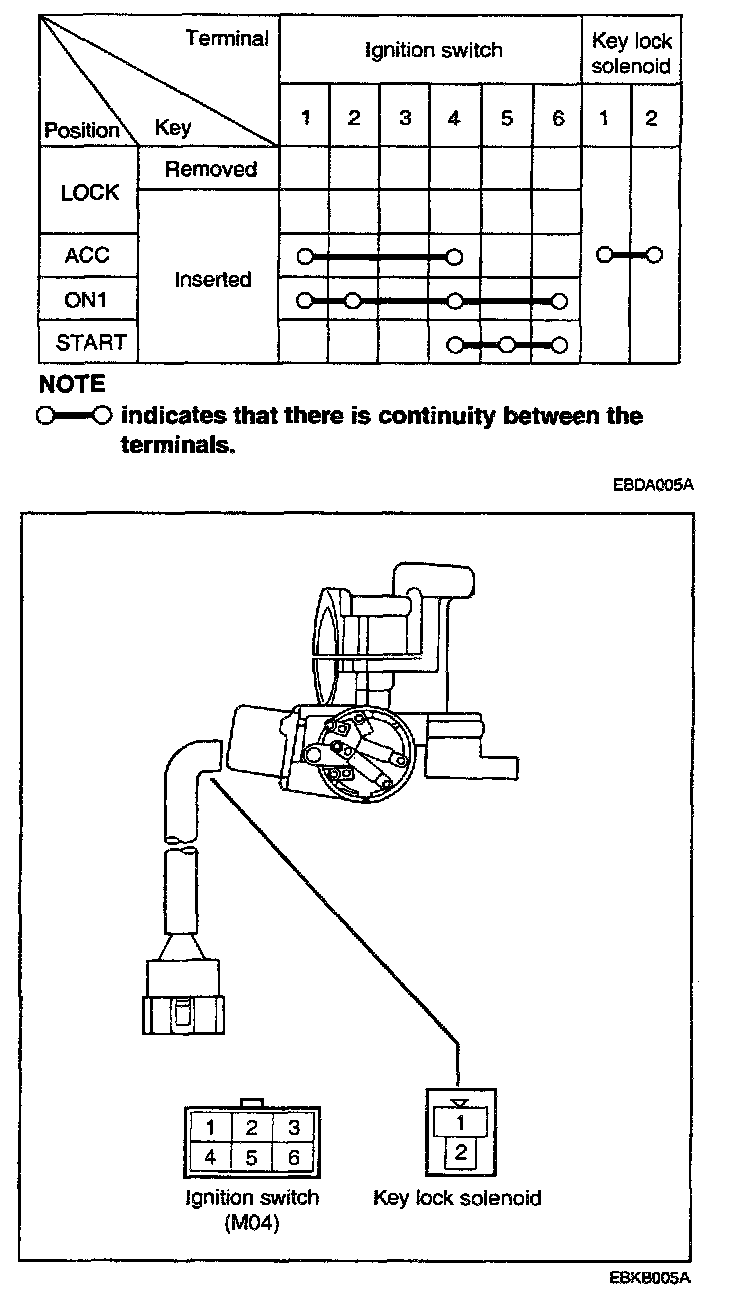

2. Check for continuity between terminals.
