Engine Compartment Fuse/Relay Box

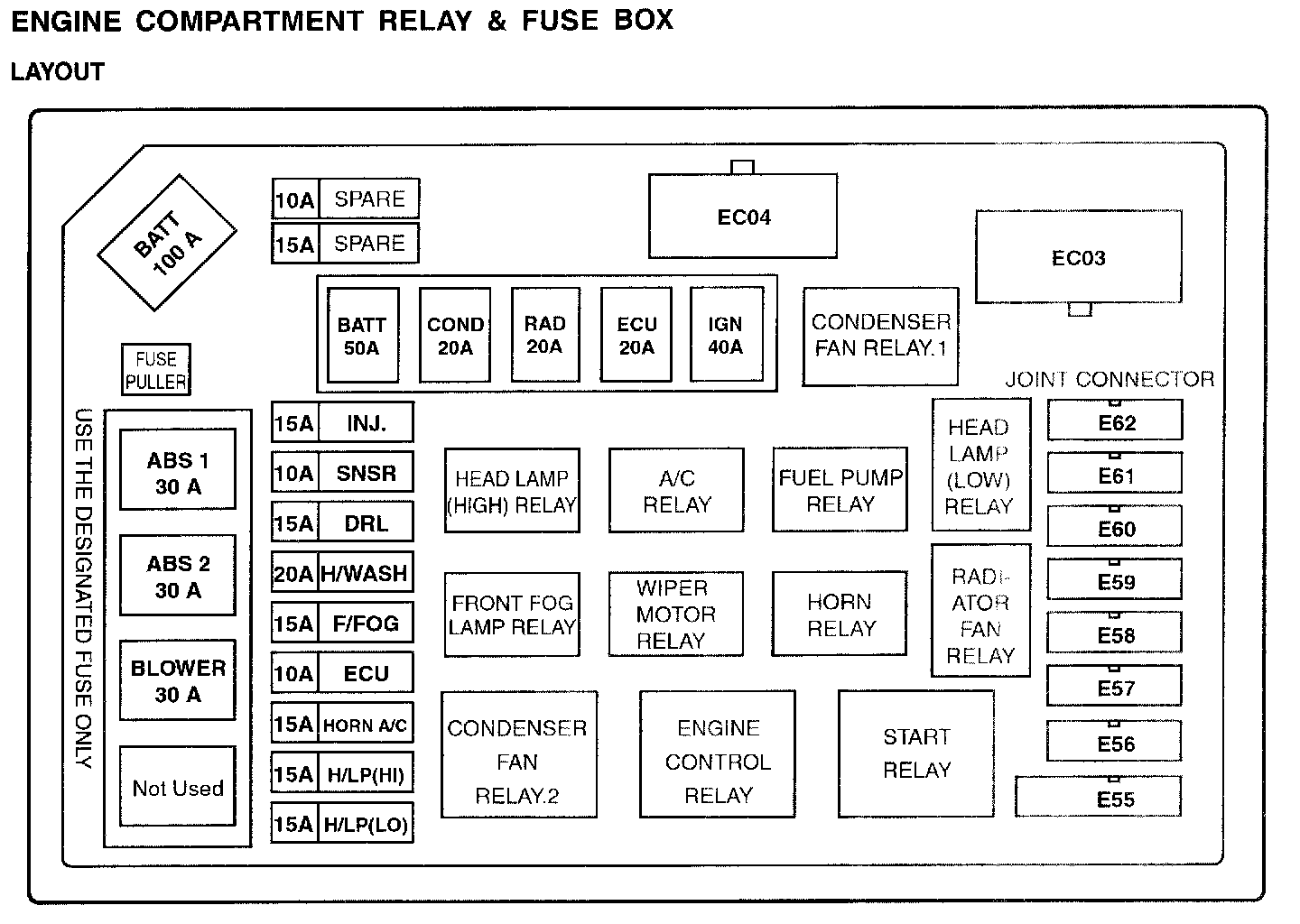

Engine Compartment Relay & Fuse Box Layout:

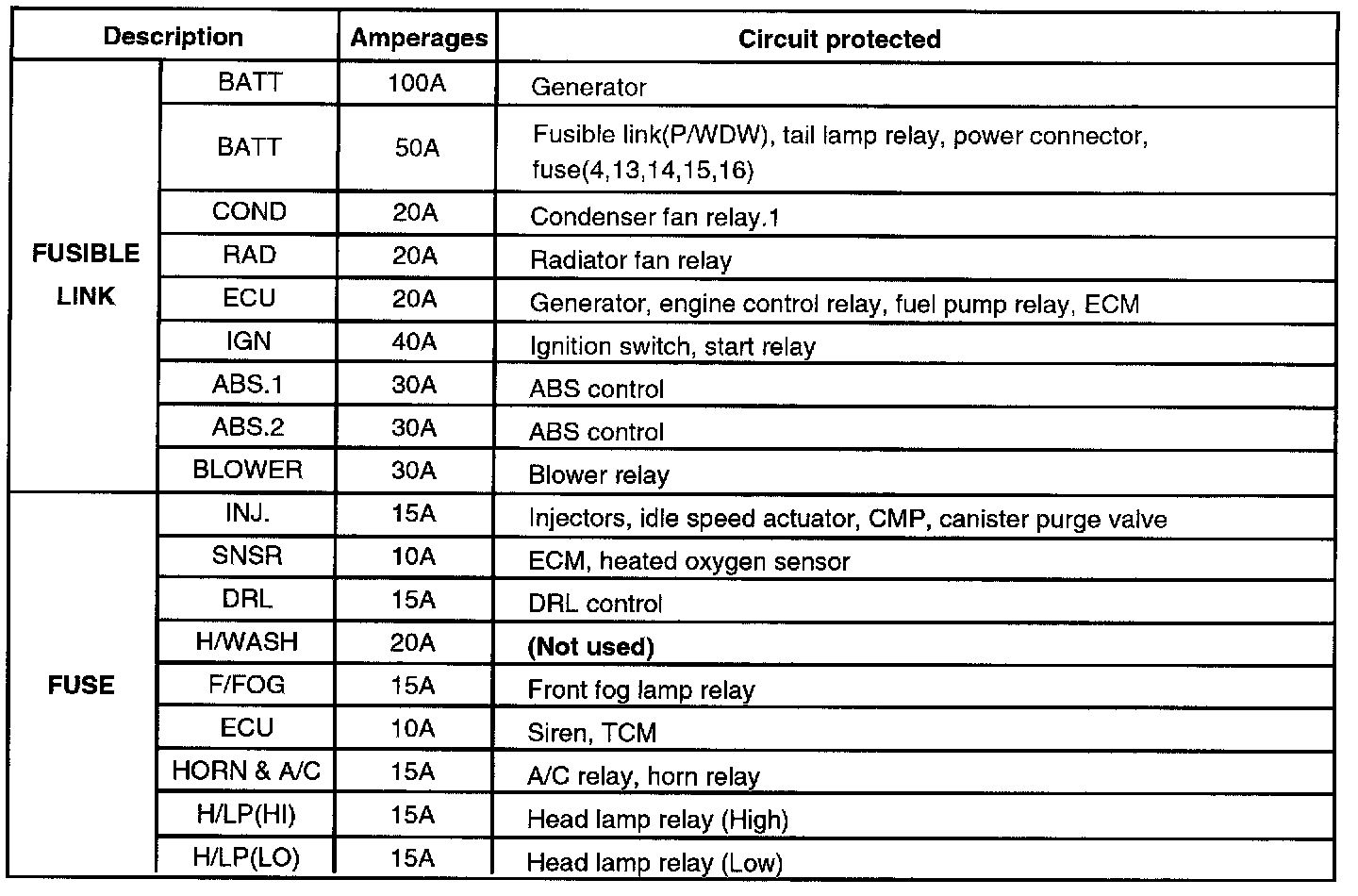

Engine Compartment Relay & Fuse Box Circuit Details:
