Timer/Control Unit, Accessory Control

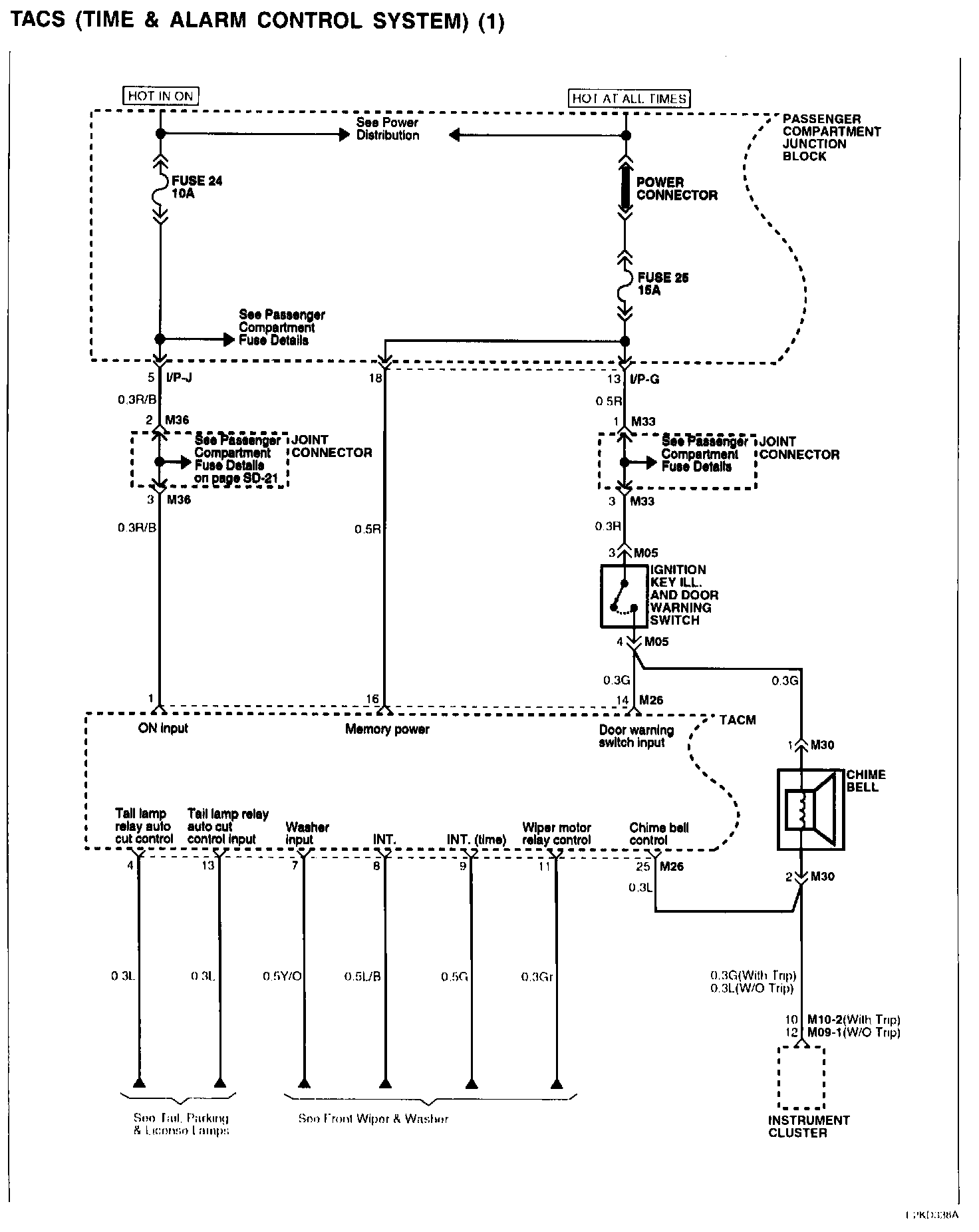

TACS (Time & Alarm Control System) (1):

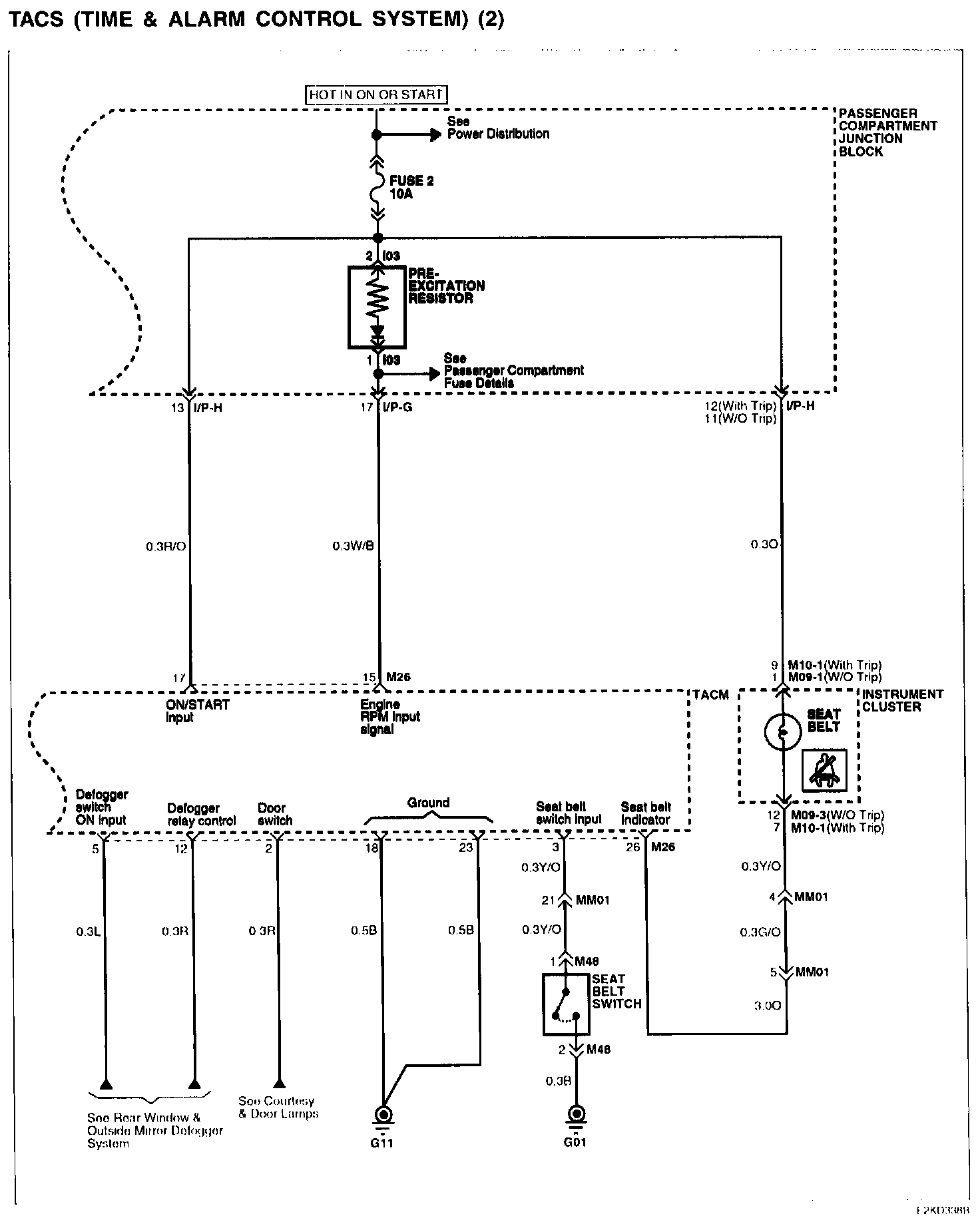

TACS (Time & Alarm Control System) (2):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
