Inspection At HECU Terminals (TCS)

Fig 1: HECU Terminals (TCS)
G00961511Courtesy of HYUNDAI MOTOR CO.

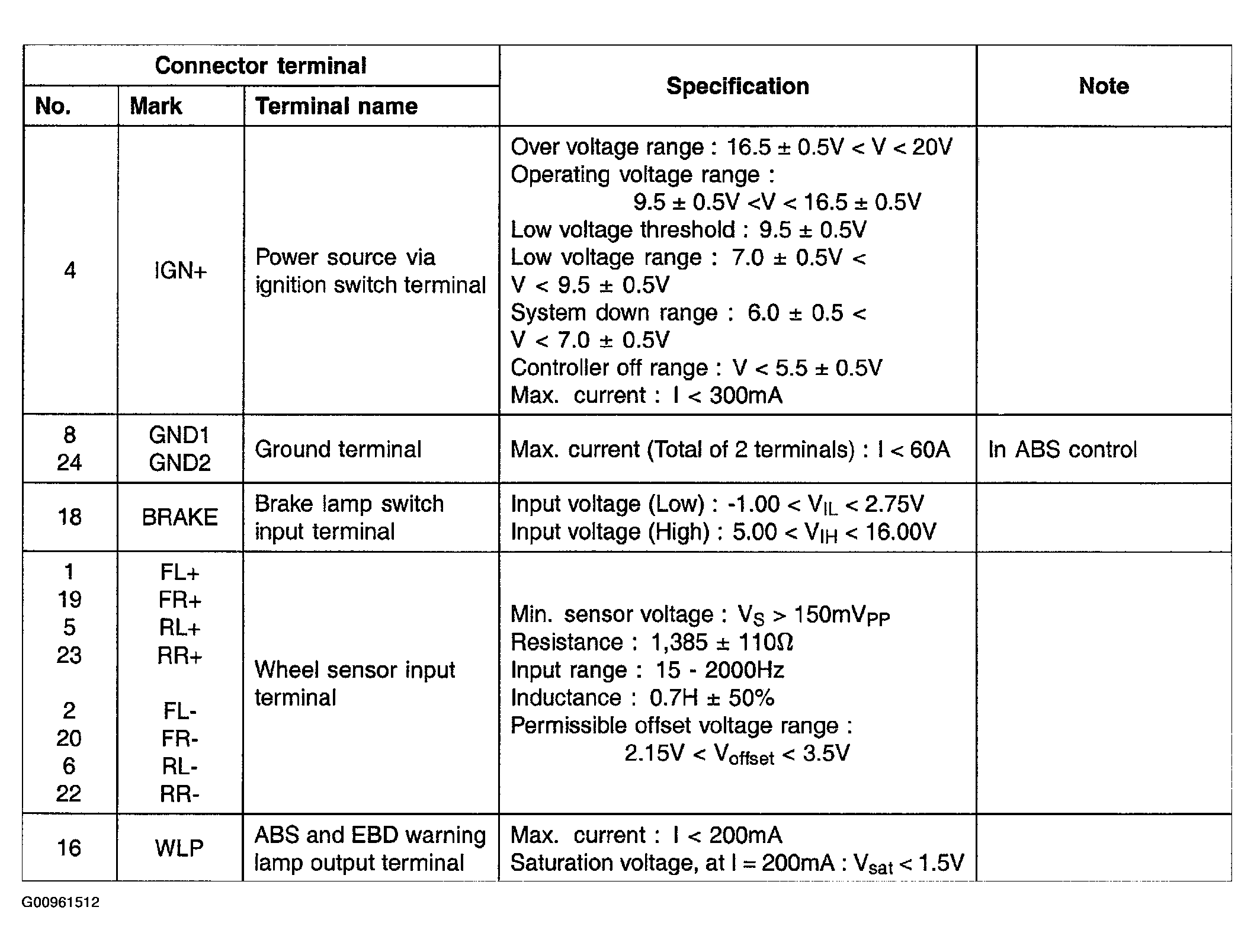

Fig 2: TCS HECU Terminal Name & Specification Table (1 Of 2)
G00961512Courtesy of HYUNDAI MOTOR CO.

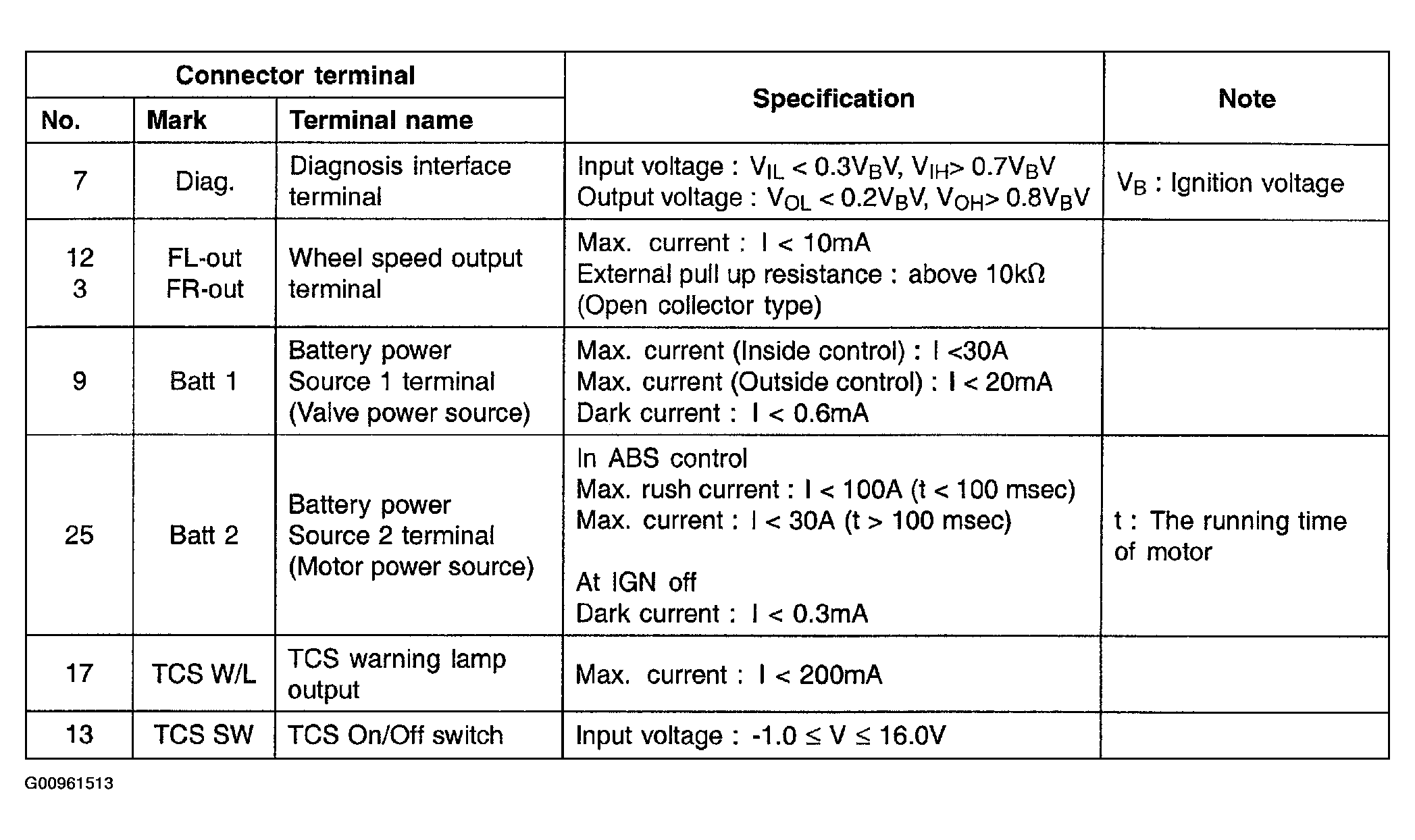

Fig 3: TCS HECU Terminal Name & Specification Table (2 Of 2)
G00961513Courtesy of HYUNDAI MOTOR CO.
