Inspection At HECU Terminals (Abs)

Fig 1: HECU Terminals (ABS)
G00961508Courtesy of HYUNDAI MOTOR CO.

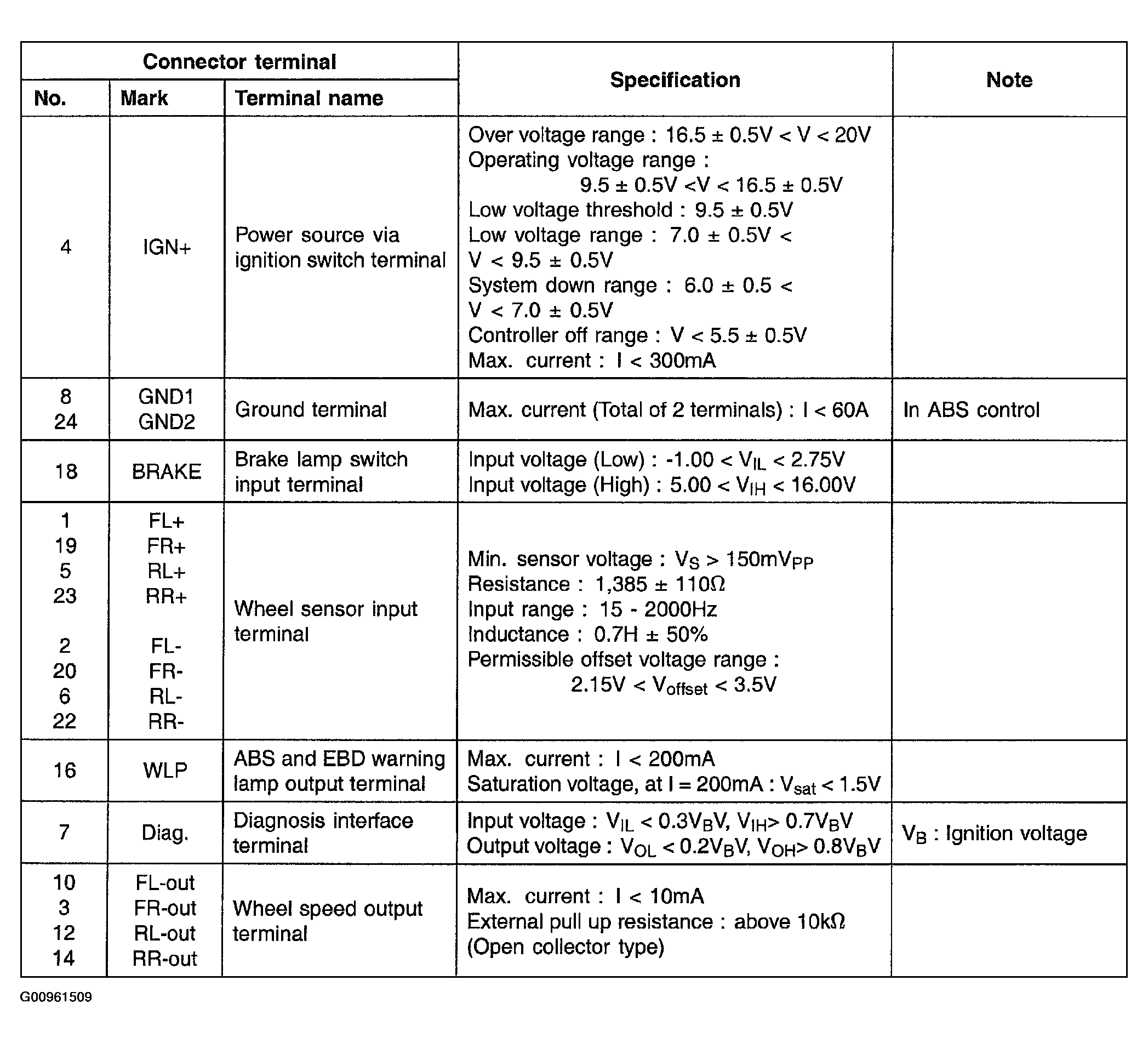

Fig 2: ABS HECU Terminal Name & Specification Table (1 Of 2)
G00961509Courtesy of HYUNDAI MOTOR CO.

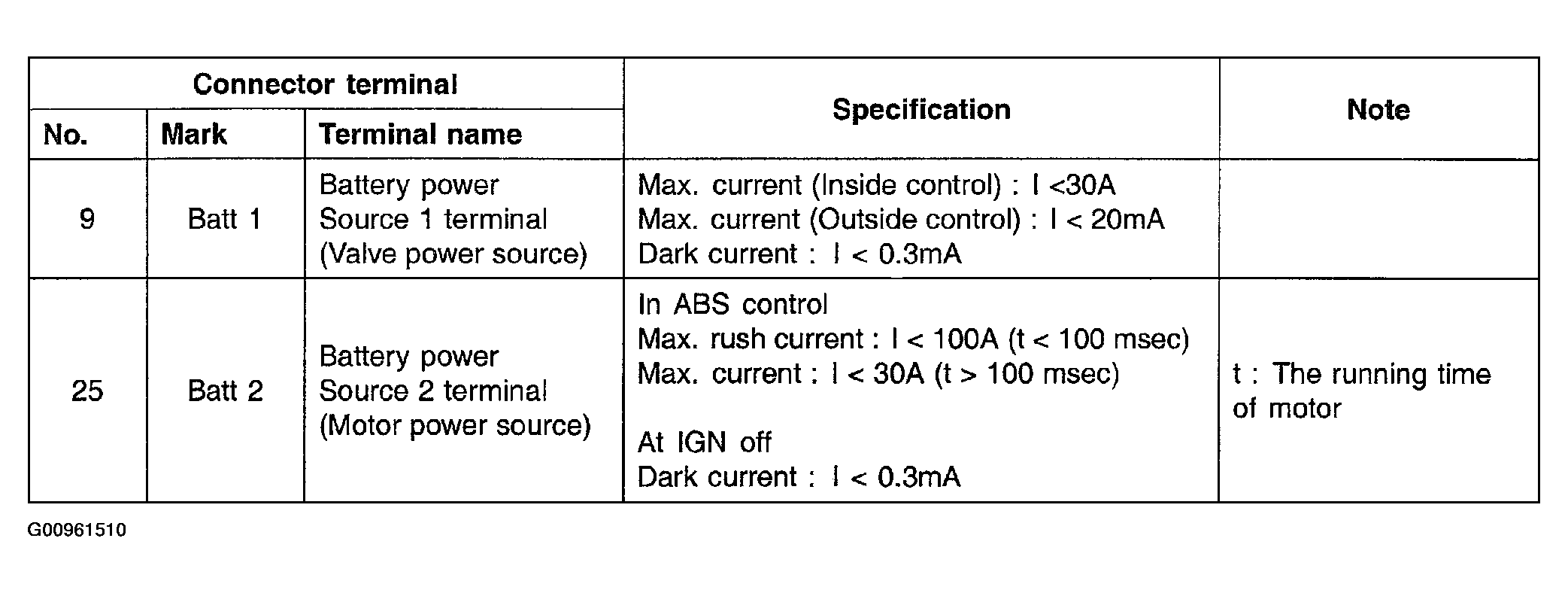

Fig 3: ABS HECU Terminal Name & Specification Table (2 Of 2)
G00961510Courtesy of HYUNDAI MOTOR CO.
