Home >> Hyundai >> 2003 >> Accent L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Axle Shaft Assembly

Axle Shaft Assembly

SPECIFICATIONS

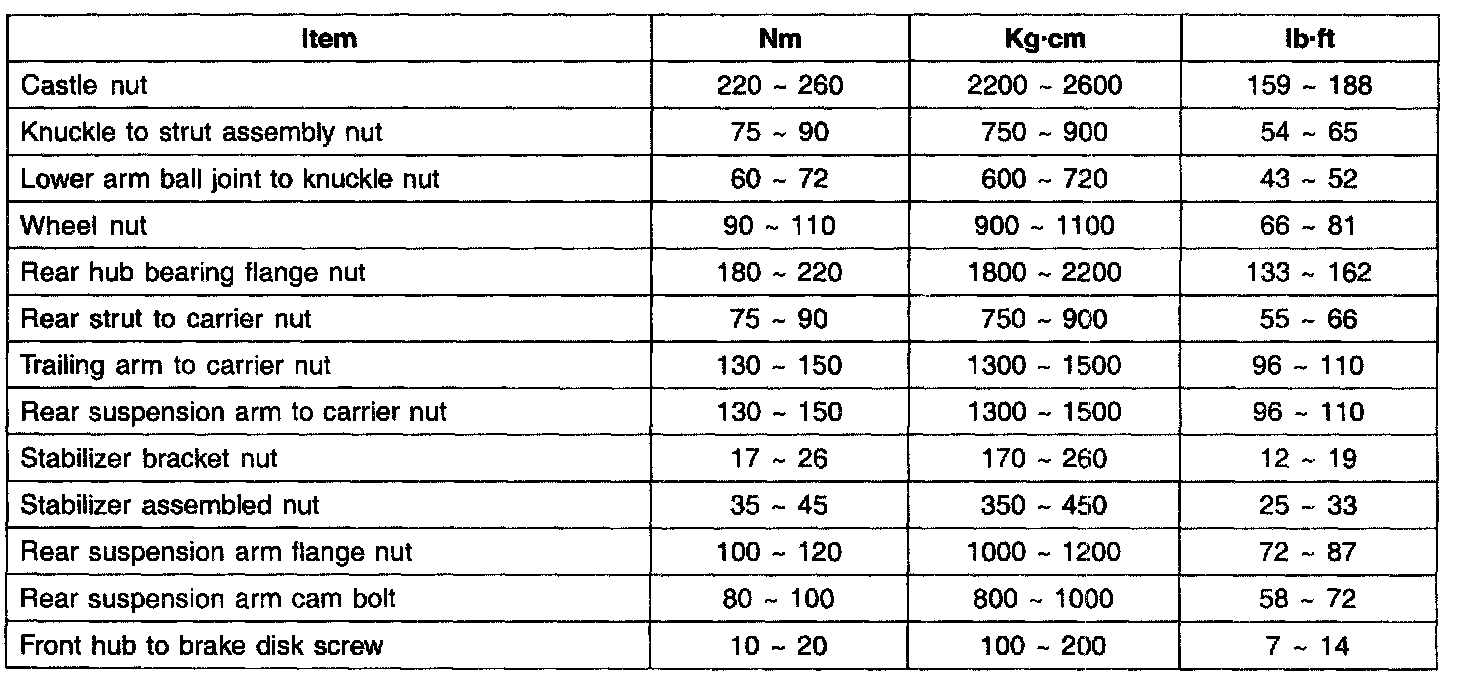

TIGHTENING TORQUE

CAUTION: Replace the self-locking nuts with new ones after removal.
